- Fully equipped and pre-set
- Impact-resistant plastic
- Incl. wall mount
- Factory-fitted with lock (can be set to continuous tension)
- Thermal protection
- Small, easy to handle, sturdy, easy to assemble
- Standard: IEC 1242
Catalog-Download
Besondere Merkmale:
Technische Daten:
| Pull-out length: | 5 to 7 m |
| Slip ring: | 2- to 3-pole |
| Operating voltage: | max. 230 V |
| Cable: | 7 m 2×1.0 qmm Thermoplast cable H05VV-F plus 1 m free-hanging |
| Output coiled: | 1.100 W |
| Output uncoiled: | 1.600 W |
| Dimensions W x H x D: |
105 x 190 x 215 mm |
| Weight: | approx. 2.3 kg |
| Protection category: | IP 42 |
Besondere Merkmale:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from impact-resistant plastic
- Incl. fastening clip
- Thermal protection (2 to 5-pole)
- Special cable black, end cut smooth, no connection coupling
- Factory-fitted with lock, can be set to continuous tension
- Cable back stop with toothed lock every 50 cm
- Easy to disengage if the cable is to be continuously under tension
- Easy to handle, sturdy, easy to assemble
- Standard: IEC 1242
Technische Daten:
| Pull-out length: | 5.5 to 12.5 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category XF: | IP 42 |
| Cable: | H05VV-F oder H07RN-F |
Besondere Merkmale:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from impact-resistant plastic
- Incl. fastening clip
- Thermal protection (2 to 5-pole)
- Special cable black, end cut smooth, no connection coupling
- Factory-fitted with lock, can be set to continuous tension
- Cable back stop with toothed lock every 50 cm
- Easy to disengage if the cable is to be continuously under tension
- Easy to handle, sturdy, easy to assemble
- Standard: IEC 1242
Technische Daten:
| Pull-out length: | 5.5 to 12.5 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category XL: | IP 43 |
| Cable: | H05VV-F or H07RN-F |
Besondere Merkmale:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from cast aluminium (silver-grey)
- Fastening clip
- Return spring made from special steel
- Special cable black, end cut smooth, no connection coupling
- Factory-set to continuous tension, adjustable locking mechanism
- Easy to handle, sturdy
- Easy to assemble
- Standard: IEC 1242
Technische Daten:
| Pull-out length: | 8 to 24 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category PRC: | IP 42 |
| Cable: | H05VV-F oder H07RN-F |
Besondere Merkmale:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from cast aluminium (silver-grey)
- Fastening clip
- Return spring made from special steel
- Special cable black, end cut smooth, no connection coupling
- Factory-set to continuous tension, adjustable locking mechanism
- Easy to handle, sturdy
- Easy to assemble
- Standard: IEC 1242
Technische Daten:
| Pull-out length: | 8 to 24 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category PRL: | IP 43 |
| Cable: | H05VV-F oder H07RN-F |
Besondere Merkmale:

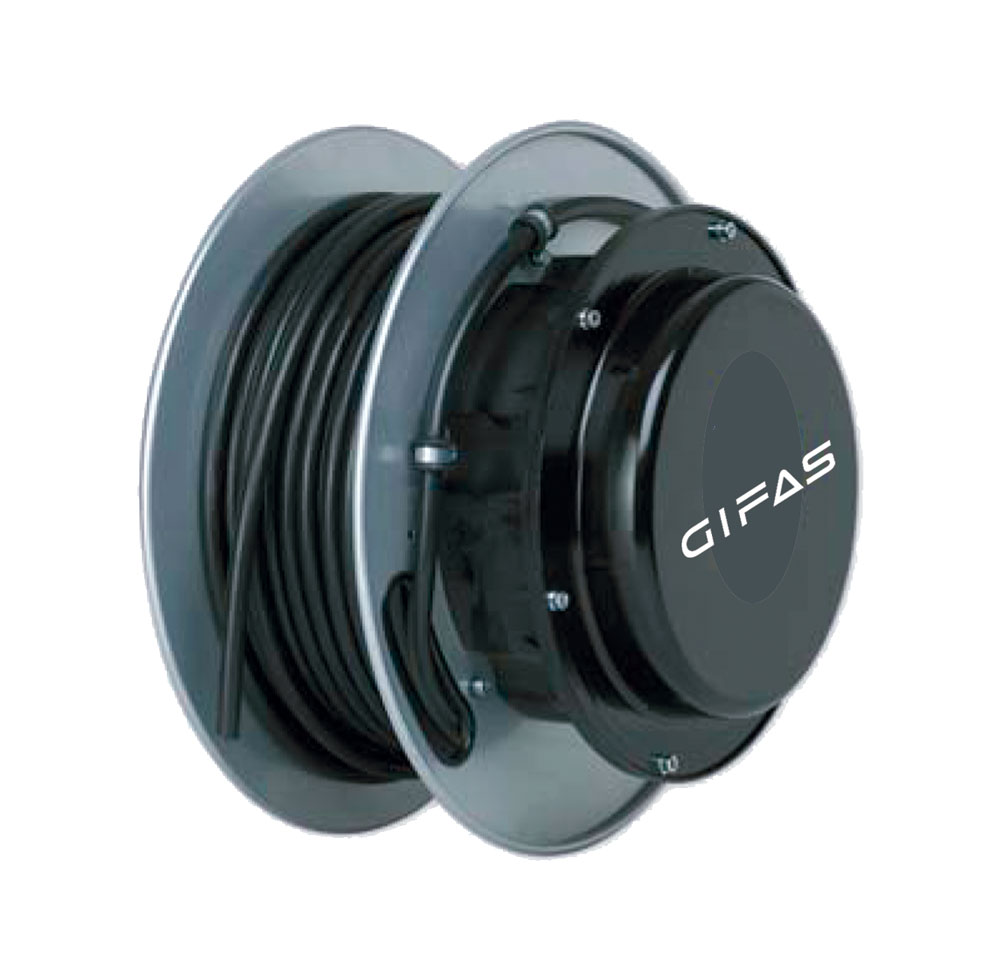

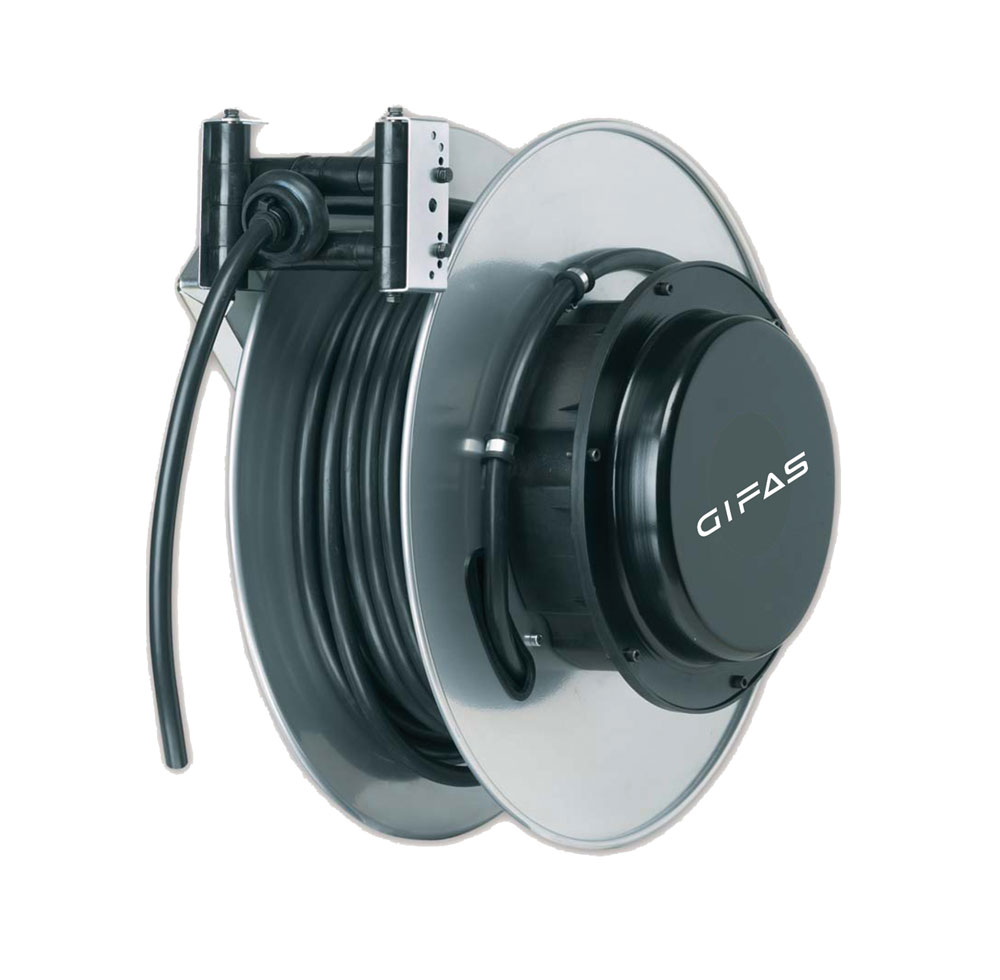

- Pull-out cable reel made from hot-varnished aluminium and steel
- On the back is an additional bracket made from aluminium for
secure ceiling or wall mounting. - Optimum traction of the cable thanks to a steel spring
- The cable reel can be supplied with H05W-F or H07RN-F cables
or without cable
Technische Daten:
| Ambient temperature: | -5 °C / +40 °C |
| Max: | coiling speed: 40 m per minute |
| Insulating voltage slip ring: | 2.5 kV |
| Protection category: | IP 65 |
| Cable: | H05VV-F or H07RN-F |
| Suitable: | for 1 to 24-pin cables with a pull-out length of max. 53 m – up to 63 A |
