Besondere Merkmale:

  • Full luminous flux, is available immediately
  • low energy consumption with high light output
  • minimal temperature development
  • at least 50,000 hours of operation
  • shockproof cover (IK10)
  • high energy efficiency
  • maintenance-free
  • Stainless steel closures and fasteners
  • no UV / IR radiation
  • shock and vibration insensitive
  • Incl. through-wiring 5 x 2,5qmm

Technische Daten:

Input voltage:220–240 VAC
Cover:GFK
Light colour:5,000 K
Temperature operation range:-15 to +35 °C
Protection class:I
Protection category:IP 65
Beam Angle:120°
Shock resistance:IK 10

Besondere Merkmale:

  • even light dispersion
  • low glare effect thanks to satin-finish cover
  • simple installation via mounting clip (including delivery) made of stainless spring steel (1,4310)
  • low energy consumption with high luminous efficacy
  • 5 years warranty

Technische Daten:

Input voltage:220~277 V AC
Cover:aluminum grey
Light colour:3,000 K / 4,000 K / 5,000 K
Temperature operation range:-20 °C to +40 °C
Protection category:IP 66
Impact resistant:IK 10
Beam Angle:120°
Illuminance:1,964 lm / 3,929 lm / 6,574 lm
LED efficiency:120 lm/W
System efficiency:20 W / 35 W / 55 W
Dimensions:20 W: 570 x 69.3 x 59.4 mm
Dimensions:40 W: 1,064 x 69.3 x 59.4 mm
Dimensions:60 W: 1,524 x 69.3 x 59.4 mm

Technische Daten:

Operating voltage:230 V AC
Illuminant:T8 LED tube
Light colour:4,000 K
Temperature range:-25 °C to +50 °C
Protection category:IP 65
Protection class:II
System performance:17W

Technische Daten:

Operating voltage:230 V AC
LED lifetime:min. 40,000 h
Illuminant:T8 LED tube
Light output:1,200 lm / 2,600 lm / 3,200 lm
Light colour:4,000 K
Temperature range:-25 °C to +45 °C
Protection category:IP 68
Protection class:II/III
Dimensions:Ø 54 mm

Technische Daten:

Operating voltage:12/24 VDC – 24/42/230 VAC
Tube:makrolon / borosilicate glass
Light colour:4,000 K
Temperature range:-25 to +45 °C
Ballast unit:EBU built in*
Protection category:IP 68
Protection class:II/III
Dimensions:Ø 70 mm

Besondere Merkmale:

  • high efficiency and uniformity of light
  • robust and impact resistant
  • energy saving
  • easy construction
  • suitable for use in the toughest environment (tunnel area, sewage treatment plants, water reservoir, chemical industry)
  • Version for direct connection via cable glands
  • Through wiring 2 x 2.5mm² possible on all models

Technische Daten:

Operating voltage:198-264 VAC (176-264 VDC)
Power Supply:20W / 35W / 55W
Luminous flux:2121 lm / 4245 lm / 7102 lm
System efficency:106 lm/W / 121 lm/W /129 lm/W
Lamp duration:L70 B10 >50.000h
Protection category:IP 66
Protection class:II
Beam angle:120°

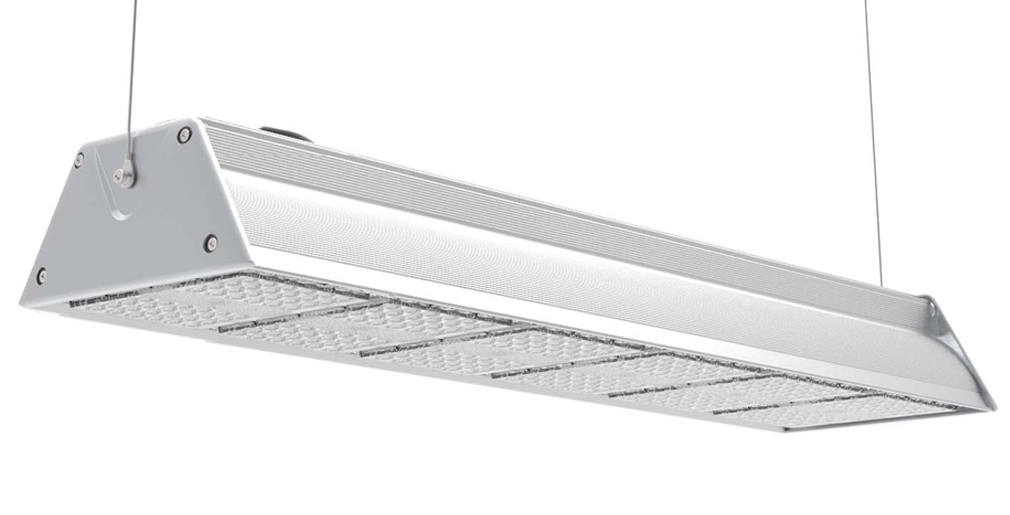

Besondere Merkmale:

  • präzise Optiken für ovalen Lichtkegel 40° x 80°
  • optimiertes Thermomanagement für hohe Umgebungstemperaturen
  • hohe Effizienz
  • auf Anfrage:  DALI dimmbar
  • auf Anfrage: Version mit 210W oder 240W

Technische Daten:

Eingangsspannung:100–277 VAC
Systemleistung:120 W / 150 W / 180 W
Lichtstrom:18.000 lm / 23.000 lm / 25.600 lm
Lichtfarbe:5.000K
Schutzart:IP 65
Schutzklasse:I
Stoßfestigkeit :IK 08
Gehäusematerial:Aluminium
Temperatureinsatzbereich:-40°C bis +60°C
