Catalog-Download

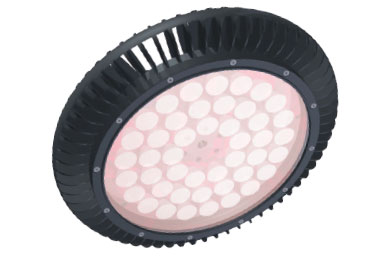

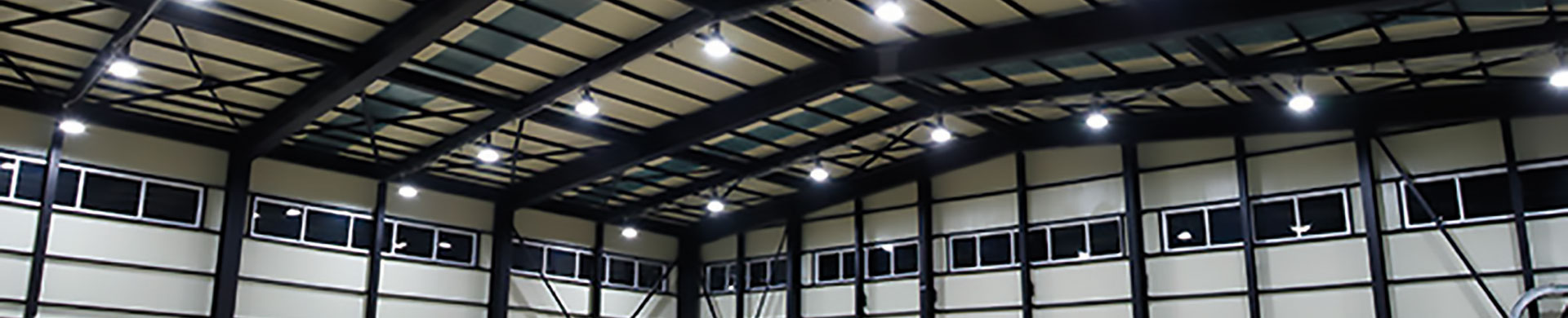

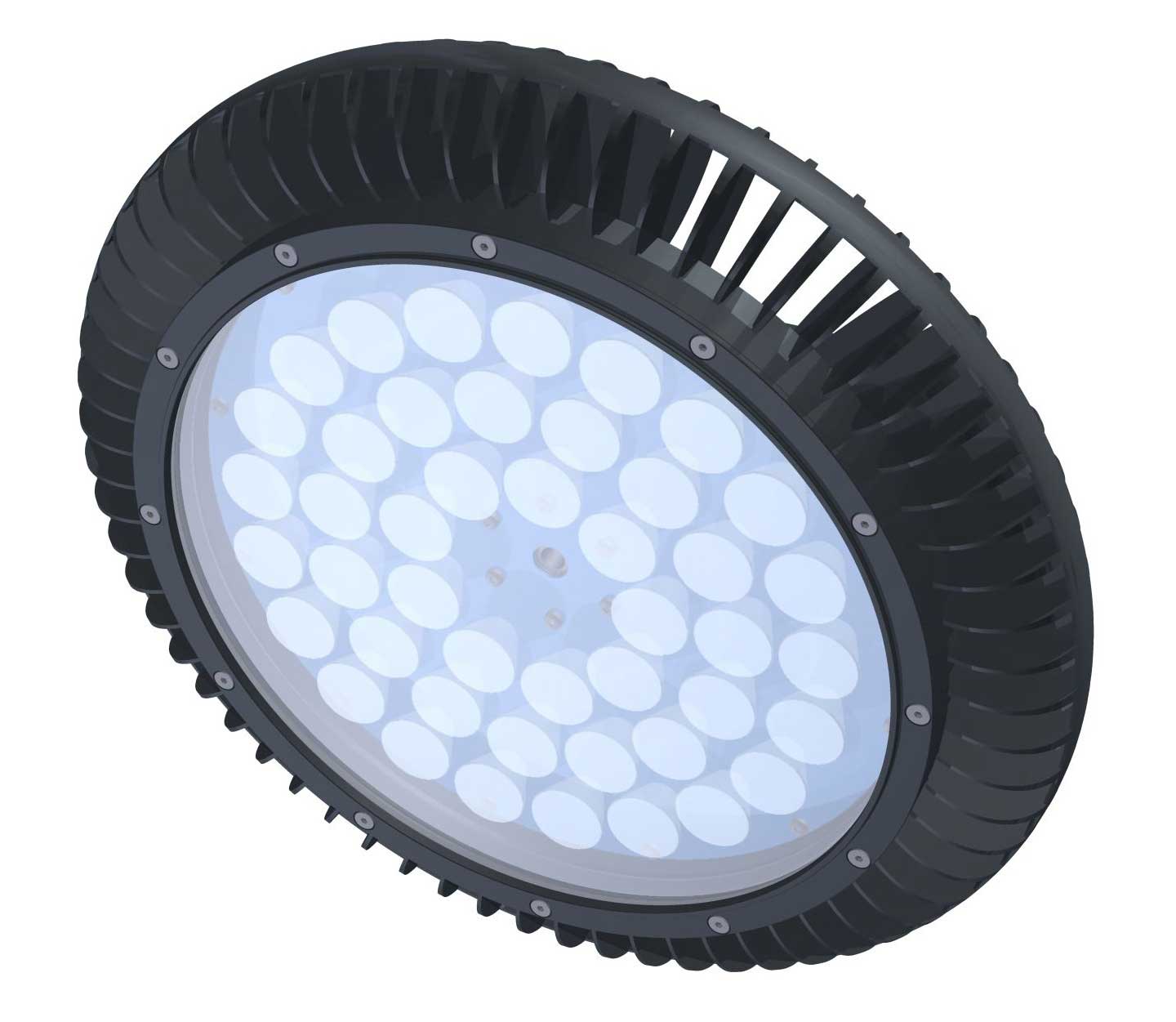

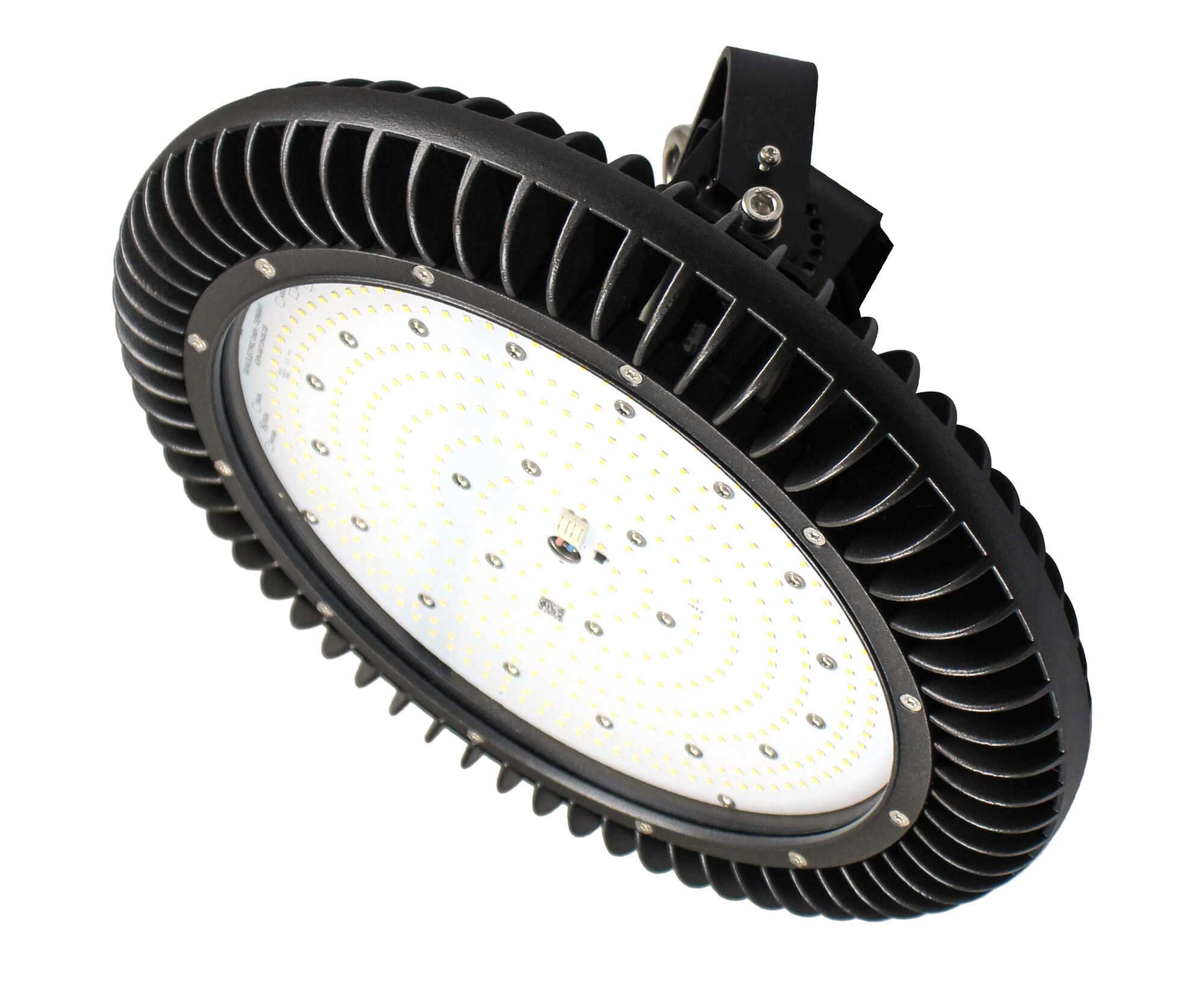

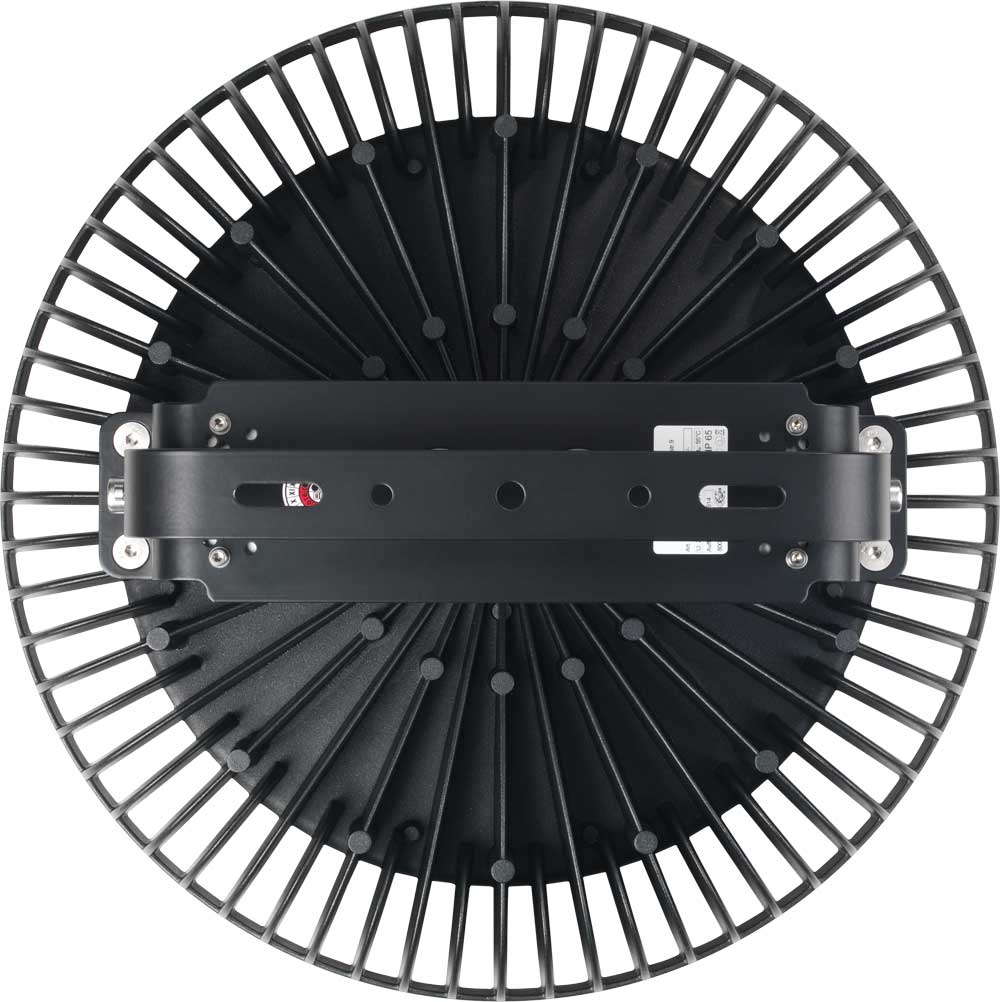

The GIFAS LED indoor-lighting portfolio offers high performance LED´s with lower energy consumption than conventional lights. The LED floodlights convince by a modern design and a practical and versatile mounting. The protection category IP 65/ IP 66 ensures a variable use in interior and exterior productions, warehouses and transhipment stations.

For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!

Special features:

  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating, approved for the food industry
  • 3 mm impact-resistant plastic disc (PC) or 3mm toughened safety glass (ESG)
  • Customized circumferential U-profile seal
  • Customized, long-lasting thermal conduction foil for permanently reliable heat dissipation of the LED Board
  • Low heat generation thanks to state-of-the-art LED technology
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high light output
  • Maintenance-free
  • Wide temperature range (up to 60 °C)
  • No UV / IR radiation
  • Vibration-insensitive
  • Various radiation characteristics available

Technical specifications:

Input voltage:100-277 VAC (50/60 Hz)
Light source:SMD-LEDs
System performance:95W / 140W / 183W / 215W / 270W
LED-Efficiency:173 lm/W / 160 lm/W / 154 lm/W / 147 lm/W / 144 lm/W
Protection category:IP 65
Protection class:I
Max. surface temperature:+90°C (suitable for use in industrial premises with fire hazards) / D rating label

Special features:

  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating, approved for the food industry
  • 3 mm impact-resistant plastic disc (PC) or 3mm toughened safety glass (ESG)
  • Customized circumferential U-profile seal
  • Customized, long-lasting thermal conduction foil for permanently reliable heat dissipation of the LED Board
  • Low heat generation thanks to state-of-the-art LED technology
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high light output
  • Maintenance-free
  • Wide temperature range (up to 60 °C)
  • No UV / IR radiation
  • Vibration-insensitive
  • Various radiation characteristics available



Technical specifications:

Input voltage:100-277 VAC (50/60 Hz)
Light source:SMD-LEDs
System performance:95W / 140W / 183W / 215W / 270W
LED-Efficiency:174lm/W / 164lm/W / 157lm/W / 155lm/W / 149lm/W
Protection category:IP 65
Protection class:I
Max. surface temperature:+90°C (suitable for use in industrial premises with fire hazards) / D rating label

Special features:

  • DALI dimmable
  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating, approved for the food industry
  • 3 mm impact-resistant plastic pane (PC) or 3 mm toughened safety glass (ESG)
  • Custom-made all-round U-profile seal
  • Custom-made, long-lasting heat-conducting film for permanent, reliable heat dissipation from the LED circuit board
  • Low heat development thanks to the latest LED technology
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high light output
  • Maintenance free
  • Wide temperature range (up to 60 ° C)
  • No UV / IR radiation
  • Not sensitive to vibrations
  • Accessories available from stock
  • Different radiation characteristics available

Technical specifications:

Input voltage:100-277 VAC (50/60 Hz)
Light source:SMD-LEDs
System performance:225W / 264W
LED-Efficiency (ESG):153lm/W / 147lm/W
Protection category:IP 65
Protection class:I
Max. surface temperature:+90°C (suitable for use in industrial premises with fire hazards) / D rating label
Beam angle:120°

Special features:

  • DALI dimmable
  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating, approved for the food industry
  • 3 mm impact-resistant plastic pane (PC) or 3 mm toughened safety glass (ESG)
  • Custom-made all-round U-profile seal
  • Custom-made, long-lasting heat-conducting film for permanent, reliable heat dissipation from the LED circuit board
  • Low heat development thanks to the latest LED technology
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high light output
  • Maintenance free
  • Wide temperature range (up to 60 ° C)
  • No UV / IR radiation
  • Not sensitive to vibrations
  • Accessories available from stock
  • Different radiation characteristics available

Technical specifications:

Input voltage:100-277 VAC (50/60 Hz)
Light source:SMD-LEDs
System performance:264W
Luminous flux:23.400lm / 27.200lm
Protection category:IP 65
Protection class:I
Max. surface temperature:+90°C (suitable for use in industrial premises with fire hazards) / D rating label
Beam angle:20° / 30°/ 60° / 120°

Special features:

  • Wirelessly dimmable via ZigBee standard
  • Part of the GIFAS intelligent hall lighting concept
  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating, approved for the food industry 3 mm impact-resistant plastic pane (PC) or 3 mm toughened safety glass (ESG)
  • Custom-made all-round U-profile seal
  • Custom-made, long-lasting heat-conducting film for permanent, reliable heat dissipation from the LED circuit board
  • Low heat development thanks to the latest LED technology
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high light output
  • Maintenance free
  • Wide temperature range (up to 60 ° C)
  • No UV / IR radiation
  • Not sensitive to vibrations
  • Accessories available from stock Different radiation characteristics available

Technical specifications:

Input voltage:100-277 VAC (50/60 Hz)
Light source:SMD-LEDs
System performance:95 W / 140 W / 183 W / 225 W / 270W
LED-Efficiency:173 lm/W / 160 lm/W / 154 lm/W / 147 lm/W / 144 lm/W
Protection category:IP 65
Protection class:I
Max. surface temperature:+90°C (suitable for use in industrial premises with fire hazards) / D rating label
Beam angle:120°

Special features:

  • Robust housing made of corrosion-resistant die-cast aluminium
  • Dirt-resistant PTFE surface coating, approved for the food industry
  • 3mm impact resistant plastic cover (PC)
  • Custom-made U-profile seal surrounding all sides
  • Custom-made, durable, heat-conducting film for lasting, reliable dissipation of heat from the LED board
  • Low heat generation thanks to the latest LED technology
  • Full luminous flux is available instantly after switching on
  • Low energy consumption with high light output
  • Maintenance-free
  • Wide operating temperature range (up to 60°C) - No UV/IR radiation
  • Vibration-resistant - Accessories available from stock
  • Various directional characteristics available

Technical specifications:

Input voltage:100–277 V AC (50/60 Hz)
Light source:SMD-LEDs
System performance:130 W
Luminous flux:1.600lm
Protection category:IP 65
Protection class:I
Temperature:+ 90°C (suitable for use in fire endangered operations)

Special features:

  • Robust housing made of corrosion-resistant die-cast aluminium
  • Dirt-resistant PTFE surface coating, approved for the food industry
  • 3mm impact resistant plastic cover (PC)
  • Custom-made U-profile seal surrounding all sides
  • Custom-made, durable, heat-conducting film for lasting, reliable dissipation of heat from the LED board
  • Low heat generation thanks to the latest LED technology
  • Full luminous flux is available instantly after switching on
  • Low energy consumption with high light output
  • Maintenance-free
  • Wide operating temperature range (up to 60°C) - No UV/IR radiation
  • Vibration-resistant - Accessories available from stock
  • Various directional characteristics available

Technical specifications:

Eingangsspannung:100–277 V AC (50/60 Hz)
Lichtquelle:SMD-LEDs
Systemleistung:80 W
Lichtstrom:1.600 lm
Schutzart:IP 65
Schutzklasse:I
Max. Oberflächentemperatur:+90 °C (geeignet zum Einsatz in feuergefährdeten Betriebsstätten) / D-Kennzeichnung
Gewicht:11,5 kg

Special features:

  • High temperature range (up to 70 °C)
  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating
  • 3mm impact-resistant plastic washer (PC)
  • Thermally conductive film for permanently reliable heat dissipation from the LED board
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high light output
  • Maintenance free
  • Insensitive to vibrations
  • Specially adapted for use in harsh environments

Technical specifications:

Input voltage:100-277 VAC (50/60 Hz)
Light source:SMD-LEDs
System performance:140 W / 183 W
LED-Efficiency:160 lm/W / 154 lm/W
Protection category:IP 65
Protection class:I
Operating range of temperature:-30°C to +70°C
Beam angles:120°
