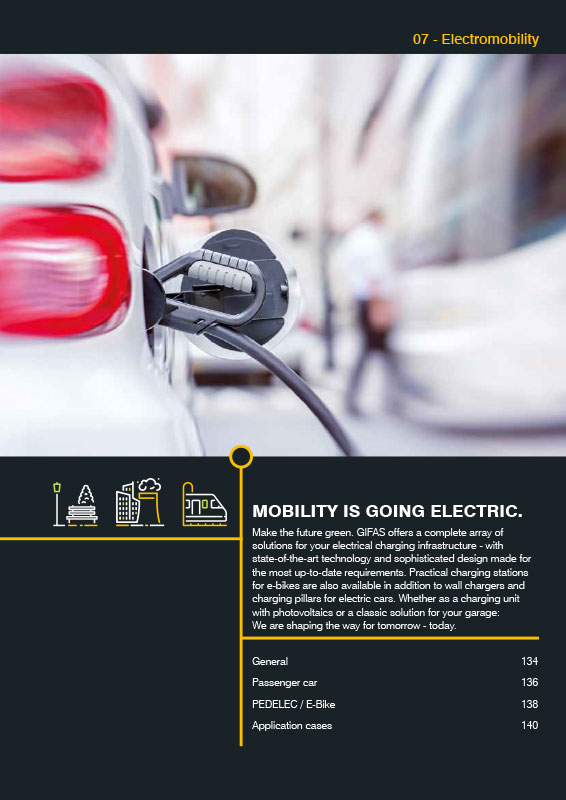

Catalog-Download

Make the future green. GIFAS offers the required total solution for your charging infrastructure – with intelligent technology, advanced design and state-of-the-art requirements.

In addition to wall boxes and pillars for electric cars GIFAS also offer practical charging stations for e-bikes. Whether as a charging unit with photovoltaic or the classic solution for your garage: we are shaping the way for tomorrow – today.

For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!

Special features:

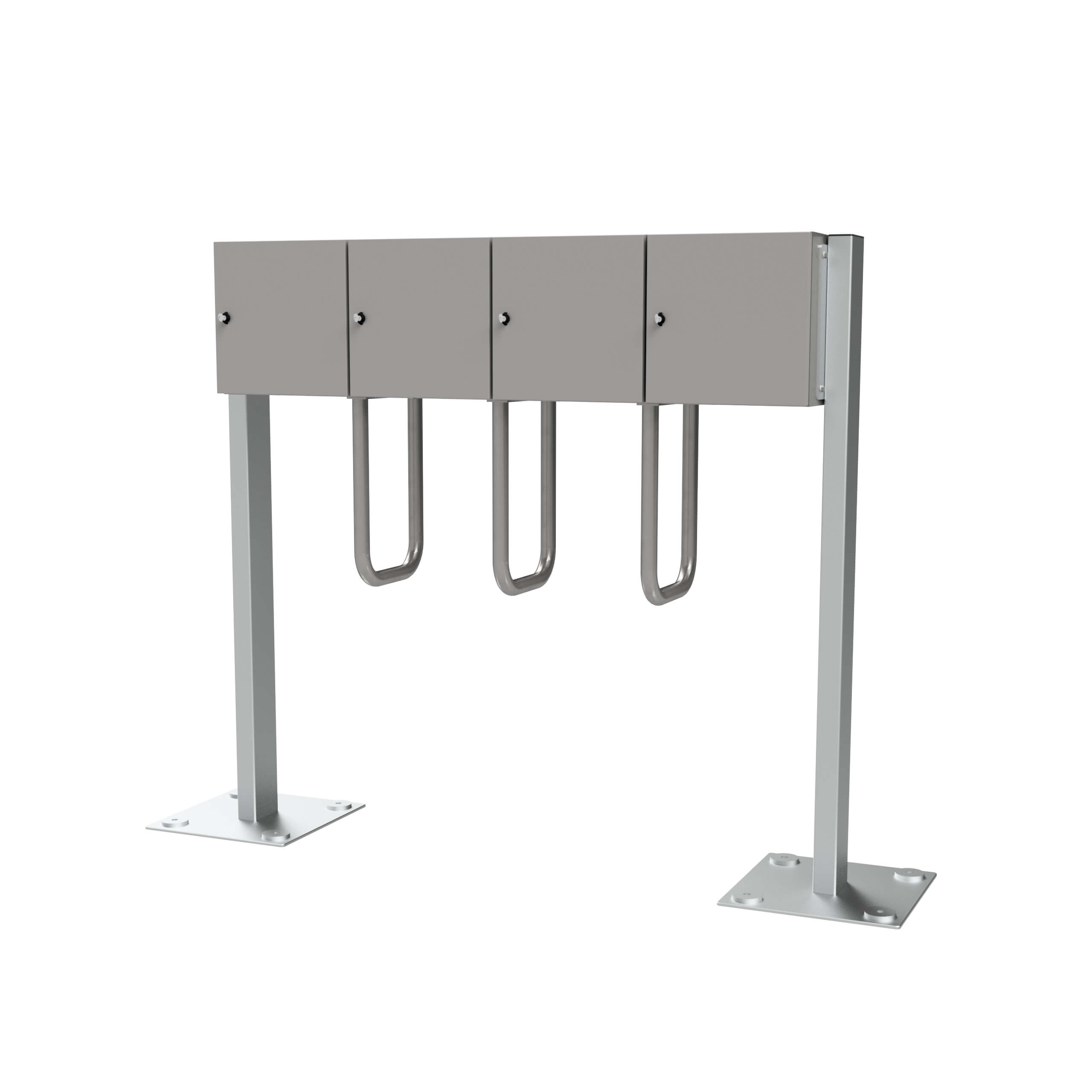

  • Depending on the choice, versions with 2-6 lockable utility compartments (V2A stainless steel)

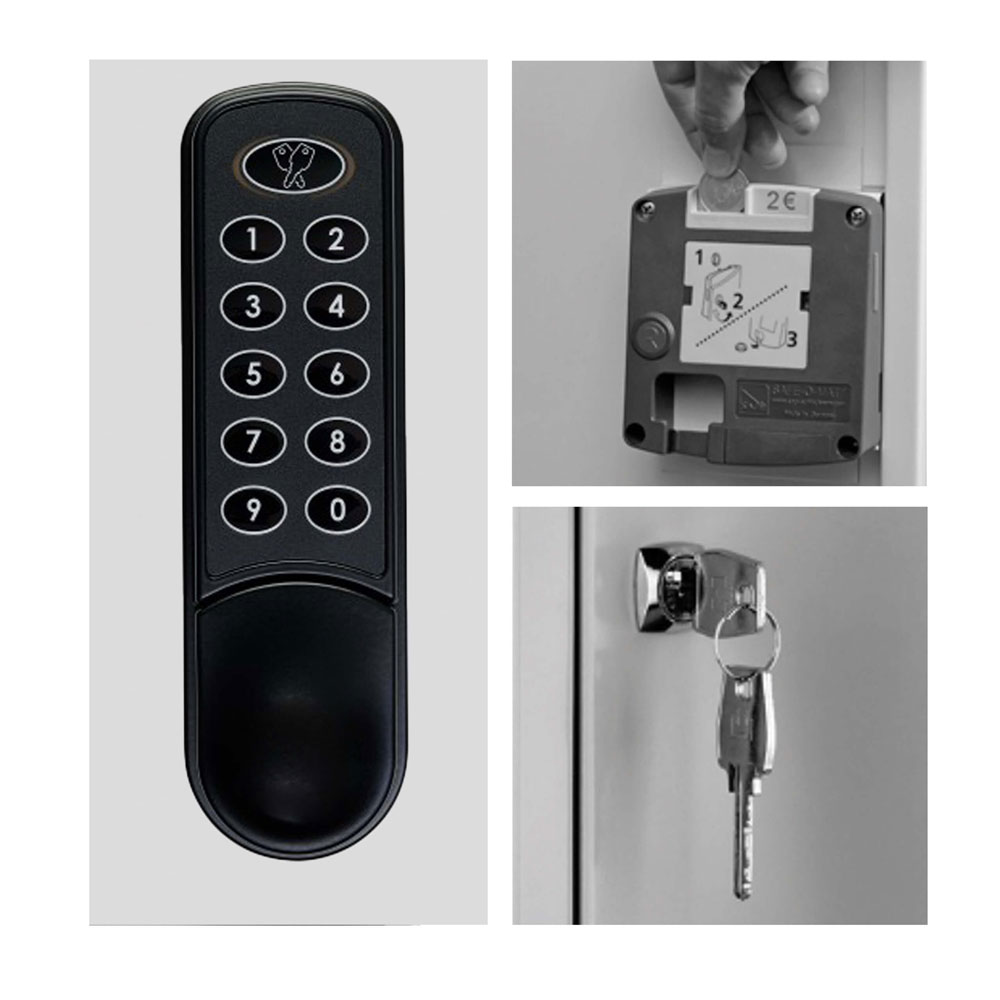

  • Various mechanical (rotating cylinders, coin deposit) or electronic locking systems (number code, RFID)
  • The first compartment is a service compartment with an integrated solid rubber distributor for the mains connection and the protective devices
  • The standard cross-section is max. 3x6mm2 provided, the supply line is standard from below through the left base plate
  • The integrated, massive V2A mounting brackets enable secure locking directly at the charging point
  • The stand construction is made of sheet steel and has a KTL base coating and is also powder-coated in the standard RAL7016 color

Technical specifications:

Solid rubber distributor: mounted in the supply compartment, Schuko protected in pairs with 1 FI / LS
Mains connection: up to max. 3 x 6 mm²
Supply line: left spar frame

Special features:

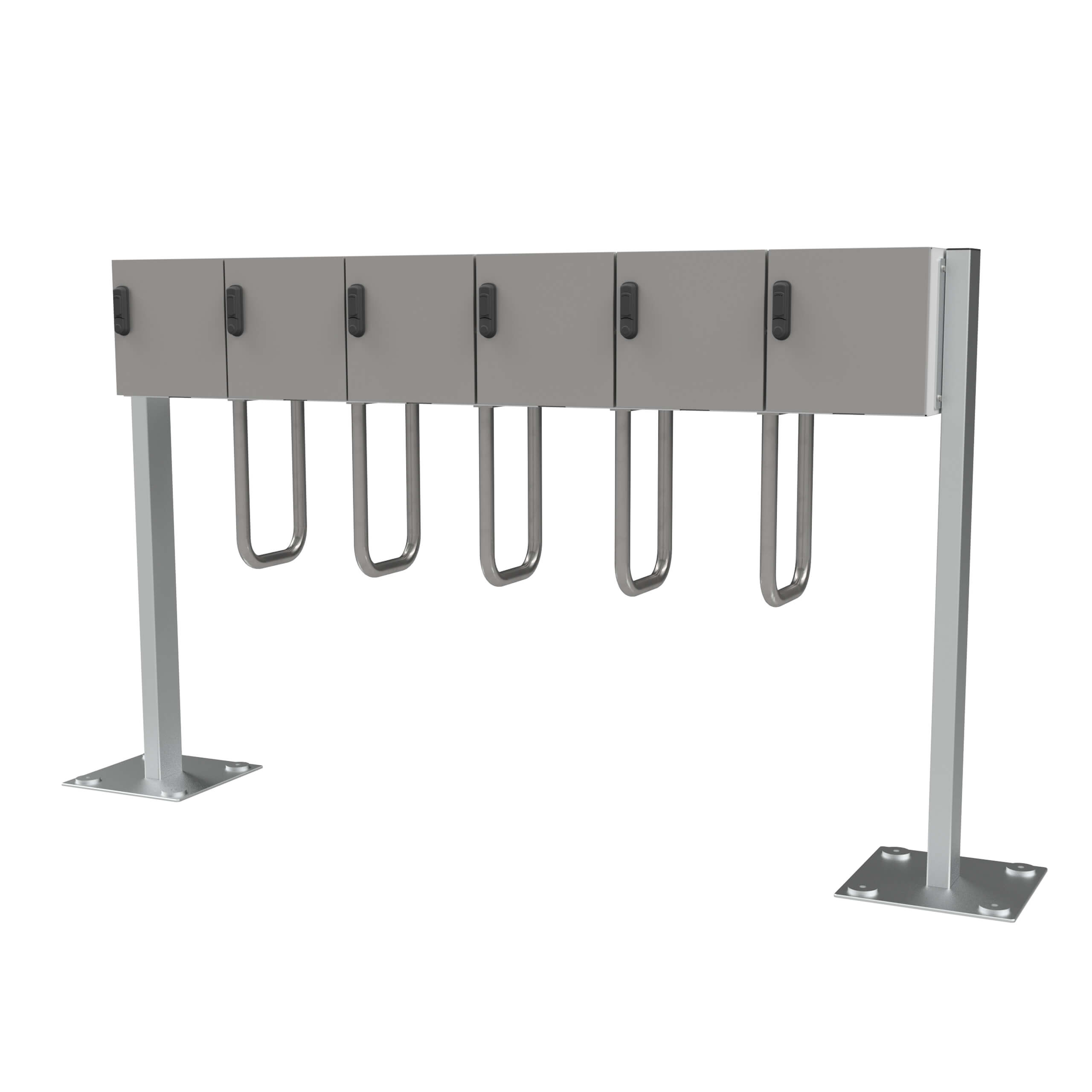

  • Depending on your choice, versions with 3-7 lockable compartments (V2A stainless steel)
  • various mechanical (rotating cylinders, coin deposit) or electronic locking systems (number code, RFID)
  • The service compartment consists of a solid rubber distributor mounted on the rear from the outside, which is intended for the mains connection and the protective devices.
  • The standard cross-section is max. 3x6mm2 provided, the supply line is standard from below through the left base plate
  • The integrated, massive V2A mounting brackets enable secure locking directly at the charging point
  • The stand construction is made of sheet steel and has a KTL base coating and is also powder-coated in the standard RAL7016 color

Technical specifications:

Solid rubber distributor: outside, rear-mounted, Schuko in pairs secured with 1 FI / LS
Mains connection: up to max. 3 x 6mm²
Supply line: left spar frame
