- Floor outlet with screw cap, to be set at floor level and outlet pipe (sunk into the floor box when not being used)
- For 1 x inputs 45 x 45 x 4 mm and 1 x inputs 22.5 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed (IP 67)
- Suitable for maintainance with wet sweeping devices when closed (IP 67) as well as when plugged (with attached outlet pipe,
water height maximum 18 mm) - Non-slip when plugged
Catalog-Download

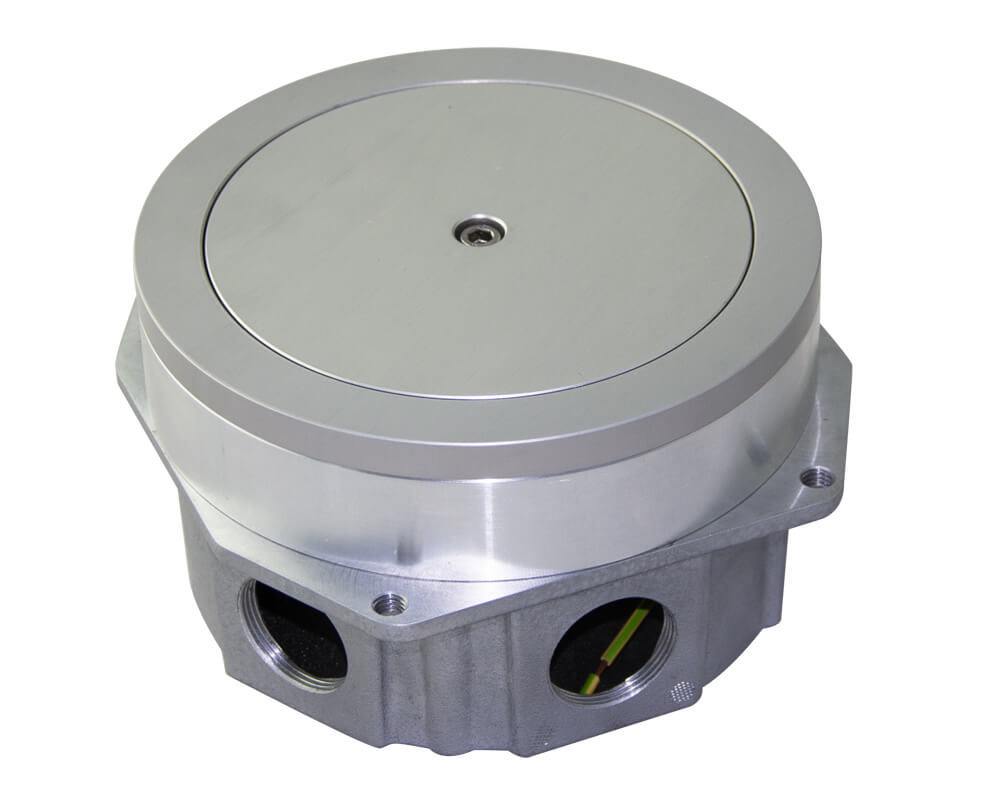

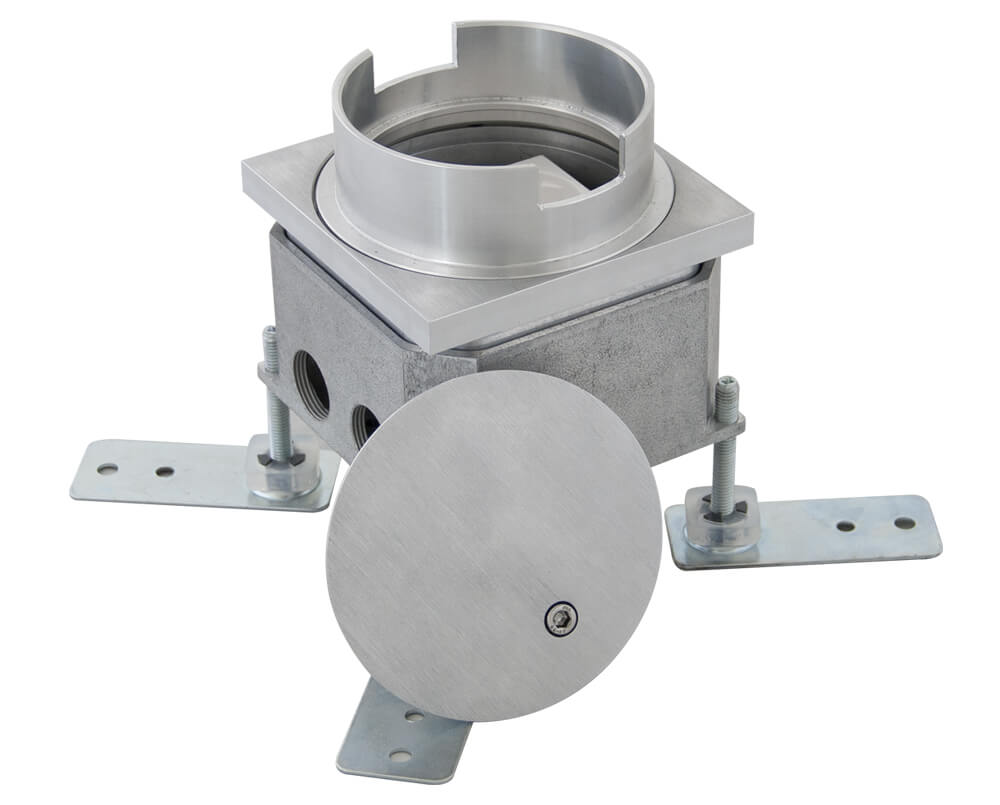

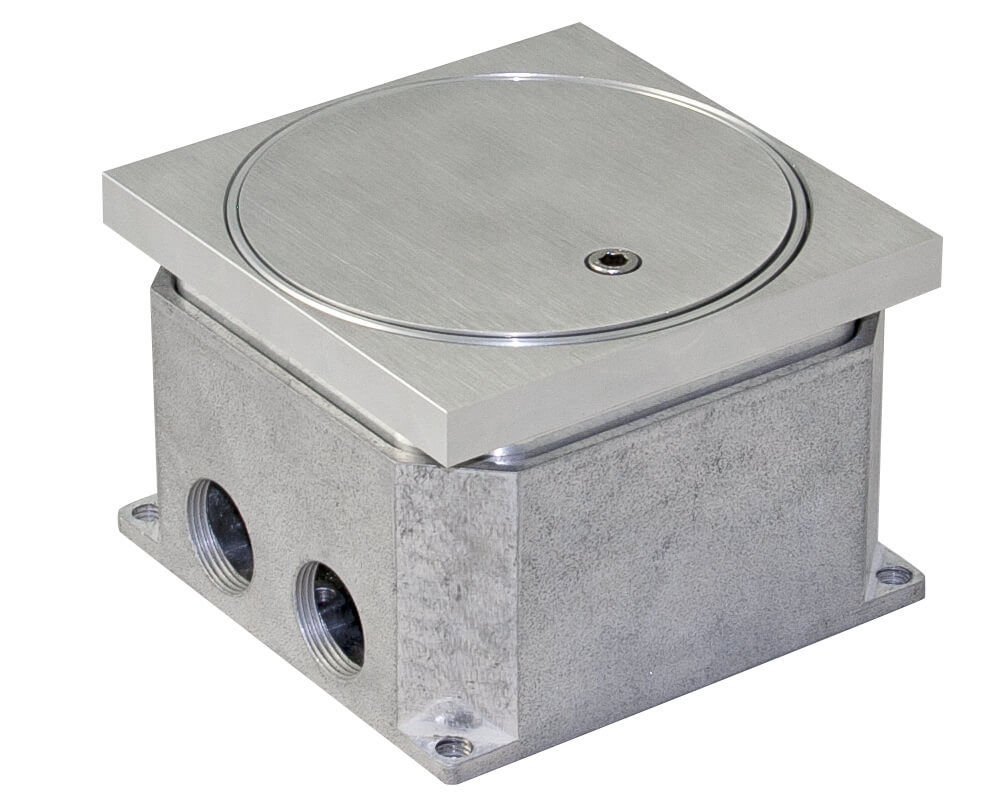

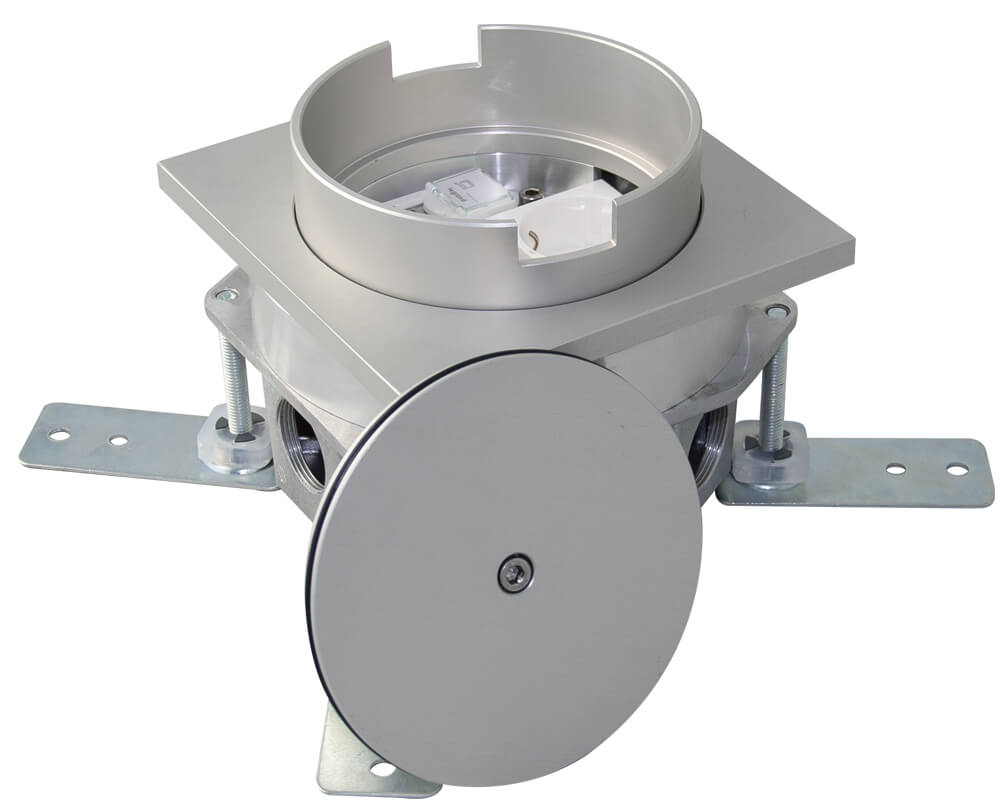

The well designed and robust floor outlets, made of aluminium, are available in different sizes. These smart allrounders are used in congress halls and event spaces, hotels and gastronomy, company buildings and industrial areas or outdoor facilities- basically anywhere where high levels of functionality and safety is required.
All models are passable and even some can be used on floors that require wet cleaning.
For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!
Special features:
Technical specifications:
| Outer dimensions (L x W): |
119 x 119 mm |
| Installation depth: | 83 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized |
| Maximum static load acc. to EN 50085: | 20 kN |
Special features:
- Floor outlet with screw cap, to be set at floor level
- For 2 x input 45 x 45 x 4 mm and 2 x input 22,5 x 45 x 4 mm (z. B. Schuko, RJ 45, etc.) (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed (IP 67)
- Suitable for maintainance with wet sweeping devices when closed (IP 67) as well as when plugged (with attached outlet pipe,
water height maximum 14 mm) - Non-slip when plugged
Technical specifications:
| Outer dimensions (L x W): |
156 x 156 mm |
| Installation depth: | 95 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized |
| Maximum static load acc. to EN 50085: | 40 kN |
