The well designed and robust floor outlets, made of aluminium, are available in different sizes. These smart allrounders are used in congress halls and event spaces, hotels and gastronomy, company buildings and industrial areas or outdoor facilities- basically anywhere where high levels of functionality and safety is required.
All models are passable and even some can be used on floors that require wet cleaning.

For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!

Special features:

  • Subfloor distributor to be installed at floor level
  • Can be travelled over when closed (IP 67)
  • Non slip when plugged (up to IP 44)

Technical specifications:

Outer dimensions
(L x W):
170 x 170 mm
Installation depth: 145 mm
Material: Aluminium natrual
(resistant to salt- and seewater)
Color acc. to tabulation: Alu colored anodized
Maximum static load acc. to EN 50085: 40 kN

Special features:

  • Subfloor distributor to be installed at floor level
  • Can be travelled over when closed (IP 67)
  • Non slip when plugged (up to IP 44)

Technical specifications:

Outer dimensions
(L x W):
170 x 170 mm
Installation depth: 190 mm
Material: Aluminium natrual
(resistant to salt- and seewater)
Color acc. to tabulation: Alu colored anodized
Maximum static load acc. to EN 50085: 40 kN

Special features:

  • Micro subfloor distributor to be installed at floor level
  • Can be travelled over when closed (IP67)
  • Non slip when plugged (up to IP 54)

Technical specifications:

Outer dimensions
(L x W):
170 x 170 mm
Installtion depth incl. levelling foot: 190–290 mm
Material: Aluminium natrual (resistant to salt- and seewater)
Color acc. to tabulation: Alu colored anodized
Maximum static load acc. to EN 50085: 40 kN

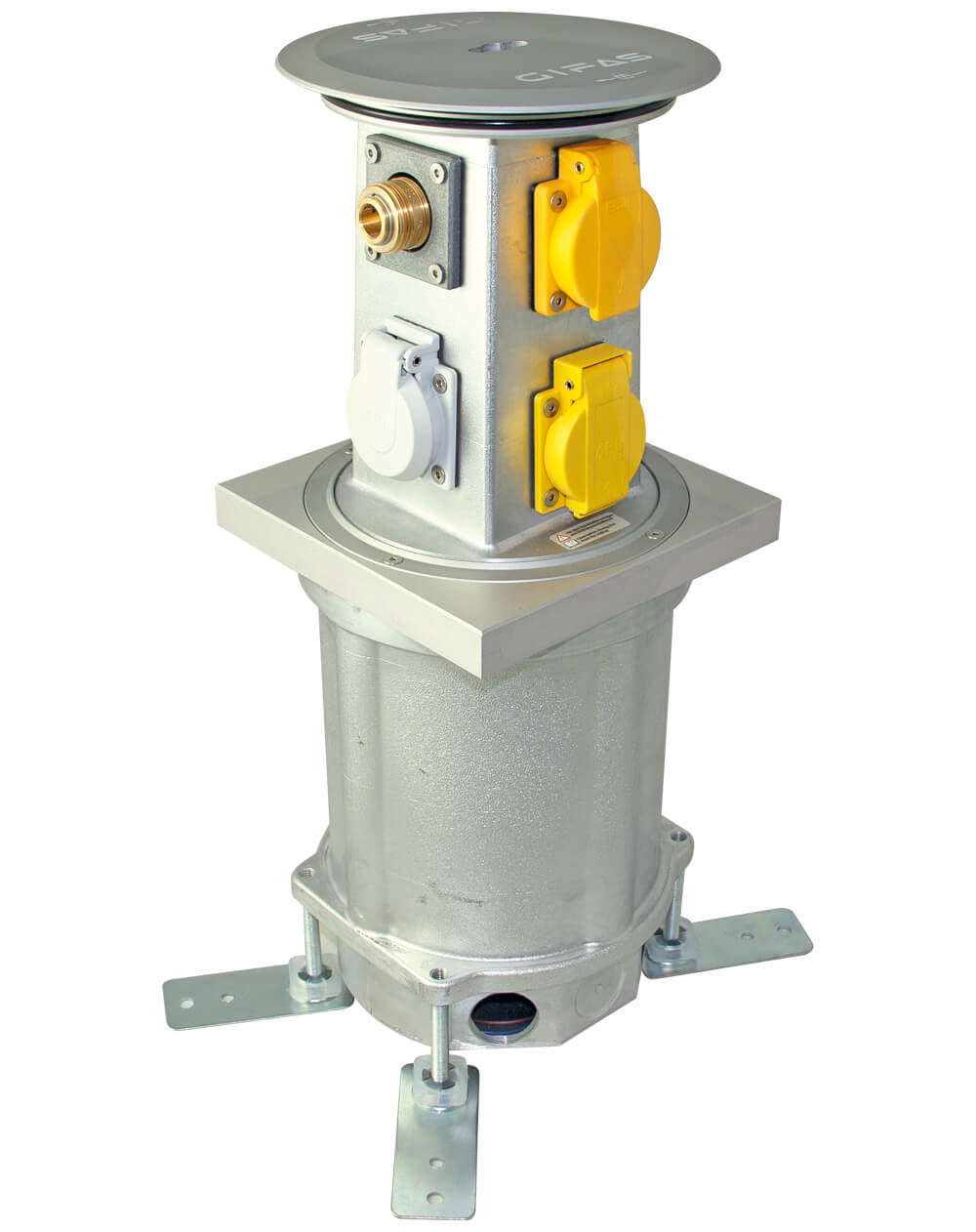

Special features:

  • Micro subfloor distributor to be installed at floor level
  • Can be travelled over when closed (IP 67)
  • Non slip when plugged (up to IP 54)

Technical specifications:

Outer dimensions
(L x W):
170 x 170 mm
Installtion depth incl. levelling foot: 255–355 mm
Material: Aluminium natrual
(resistant to salt- and seewater)
Color acc. to tabulation: Alu colored anodized
Maximum static load acc. to EN 50085: 40 kN

Special features:

  • Micro subfloor distributor to be installed at floor level
  • Can be travelled over when closed (IP 67)
  • Non slip when plugged (up to IP 54)

Technical specifications:

Outer dimensions
(L x W):
170 x 170 mm
Installtion depth incl. levelling foot: 255–355 mm
Material: Aluminium natrual
(resistant to salt- and seewater)
Color acc. to tabulation: Alu colored anodized
Maximum static load acc. to EN 50085: 40 kN
