We have a wide variety of control and special cables, flexible or assembled cables, which have very specific strengths and characteristics. The GIFAS ELECTRIC cable portfolio contains a wide variety of flexible and assembled cables. They are available in different strenghts and characterictics.
On request with your individual print.
For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!

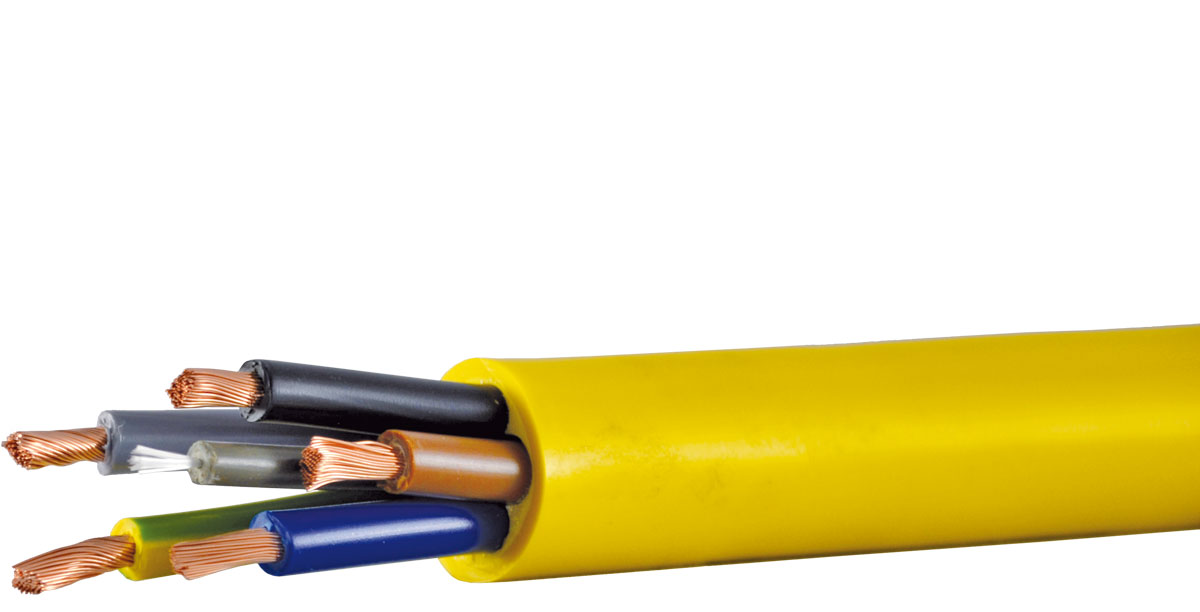

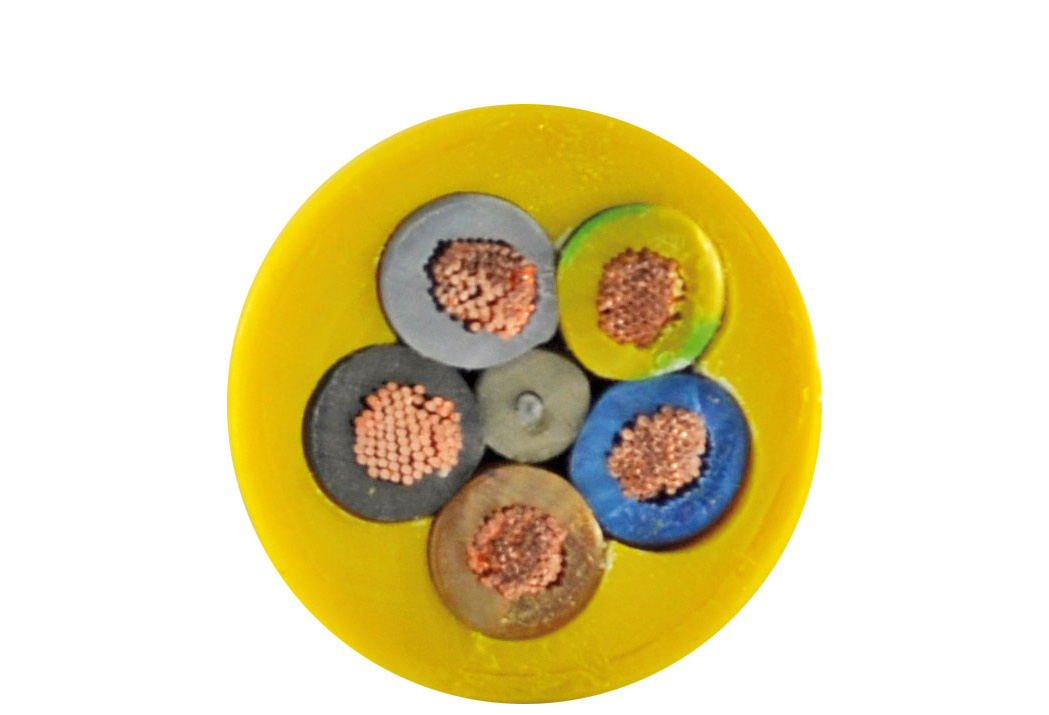

Special features:

  • Silicon-free cable
  • Polyvinyl chloride insulated
  • Above-average flexibility under normal conditions
  • Ideal for connecting lighter electrical equipment with medium mechanical stresses

Technical specifications:

Cable type: H05 VV-F
Operating voltage Uo/U: 300 / 500 V
Test voltage: 3000 V / 50 Hz
Temperature range: mobile: -15 °C to +70 °C fixed installation: -30 °C to +70 °C
Sheath colour: yellow

Special features:

  • Silicon and halogen-free cable
  • Particularly resistant to impacts as well as being wear and cut-resistant
  • Resistant to microbes, UV rays, oils, greases, petrol, water and weathering
  • For use in dry, moist and wet environments

Technical specifications:

Cable type: H05 BQ-F / H07 BQ-F (from 1.5 mm²)
Operating voltage Uo/U: 300 / 500 V (H05) – 450/ 750 V (H07)
Test voltage: 2000 V / 50 Hz (H05) – 2500 V / 50 Hz (H07)
Temperature range: mobile: -25°C bis +80°C fixed installed: -40°C to +90°C
Sheath colour: yellow

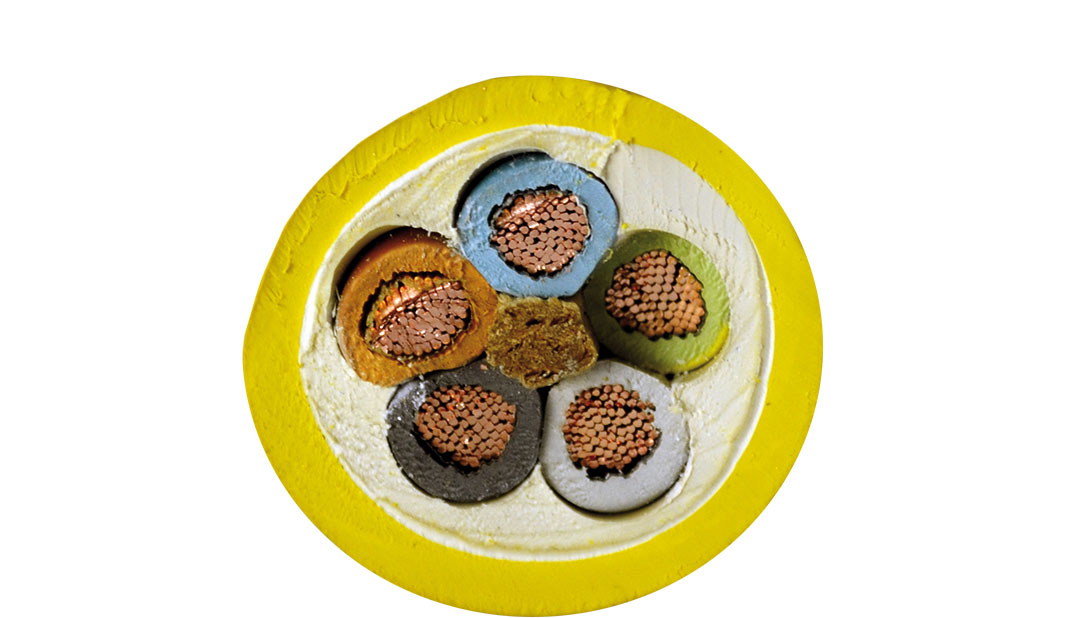

Special features:

  • Outer sheath made from highly mechanically stable polychloroprene
  • Silicon-free cable
  • High flexibility, excellent weather, ozone, oil and alkali resistance
  • High thermal load capacity
  • This type of cable is approved in compliance with DIN VDE 0165 in workshops at risk of explosion
  • – For use in dry, moist and wet spaces or for outdoors use, such as for the connection of equipment in industrial workshops or workshops at risk of fire

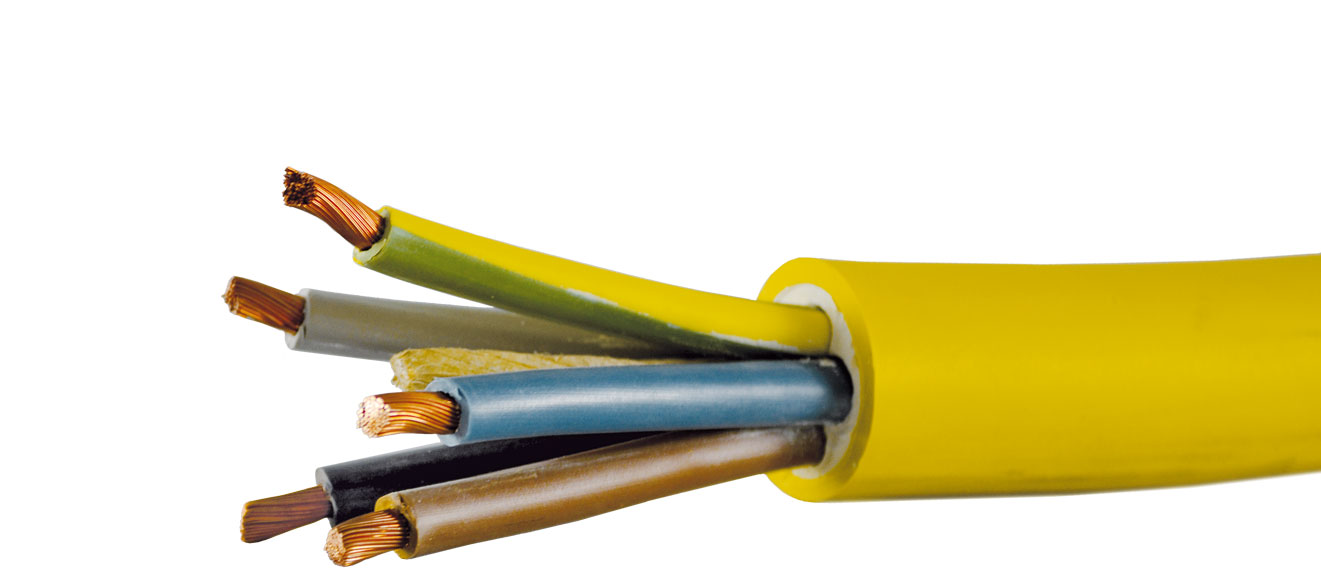

Technical specifications:

Cable type: H07 RN-F
Operating voltage Uo/U: 450 / 750 V
Test voltage: 2500 V / 50 Hz
Temperature range: mobile: -25°C to +60°C fixed installation: -40°C to +60°C short term: to +250°C
Max. core temperature: in operation +85°C (Norm +60°C)
Sheath colour: yellow

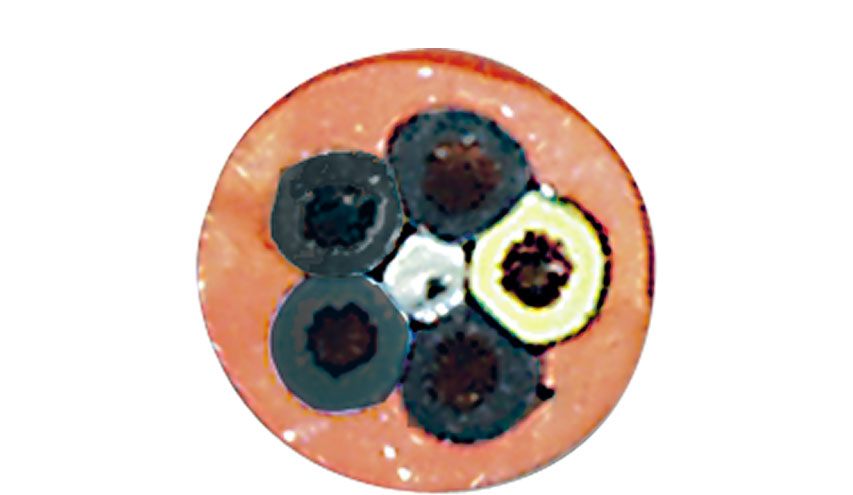

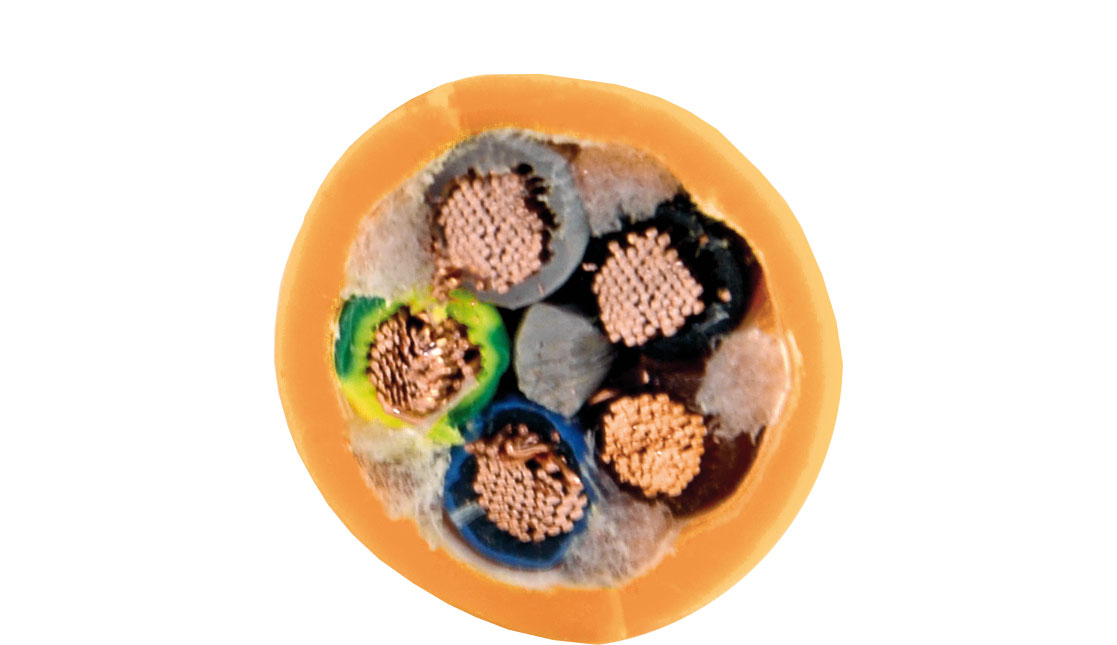

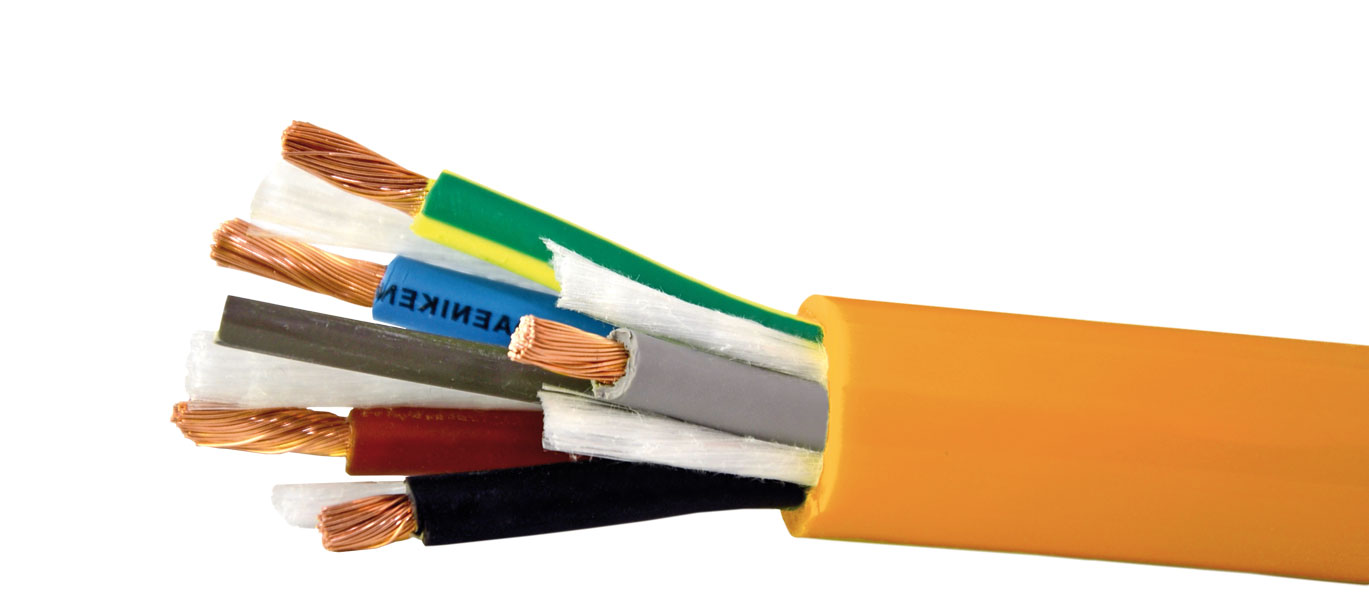

Special features:

  • Halogen and silicon-free cable
  • Exterior sheath made from cross-linked polymer, compliant with DIN VDE 0266, HXM 1
  • Flame-retardant, oil-resistant
  • Excellent resistance to chemical influences from ozone, mineral oils, diluted acids and alkalis
  • High mechanical stability guarantees a long service life
  • For use in dry and moist areas with moderate mechanical stresses

Technical specifications:

Cable type: (N) HXSLHXÖ-J
Operating voltage Uo/U: 300 / 500 V
Test voltage: 2000 V / 50 Hz
Temperature range: mobile: -25°C to +100°C fixed installed: -40°C to +100°C
Sheath colour: orange

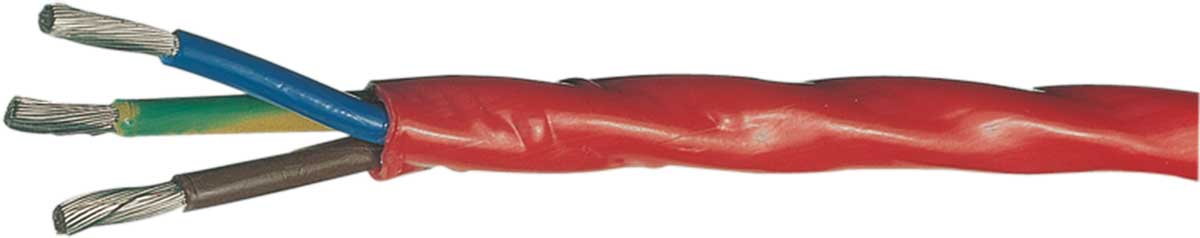

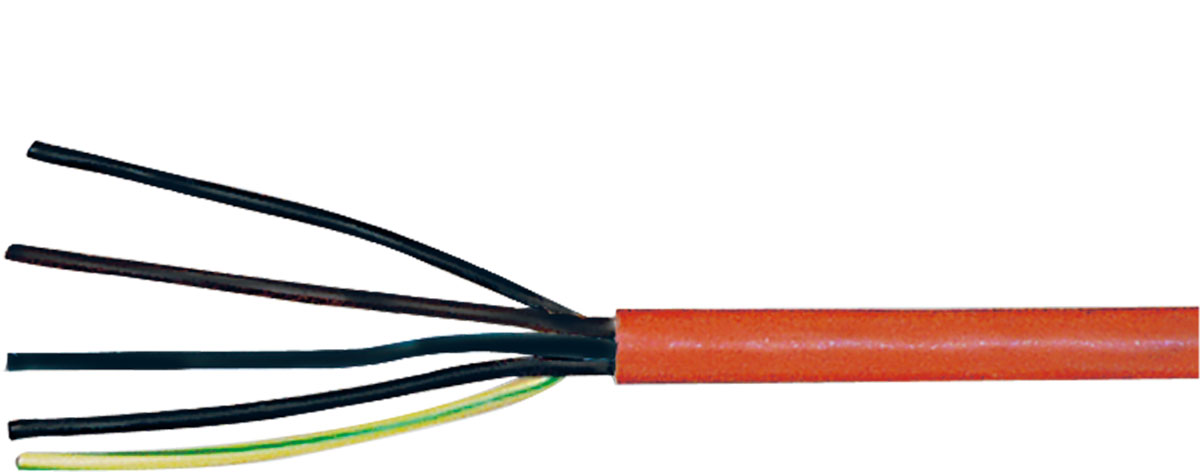

Special features:

  • Fluoropolymer insulated
  • Extremely heat-resistant
  • Nickel-plated Cu conducting wires
  • High thermal and chemical stability

Technical specifications:

Operating voltage Uo/U: 600 V
Test voltage: 2000 V / 50 Hz
Temperature range: constant: -190°C to +260°C schort term: to +300°C
Sheath colour: red

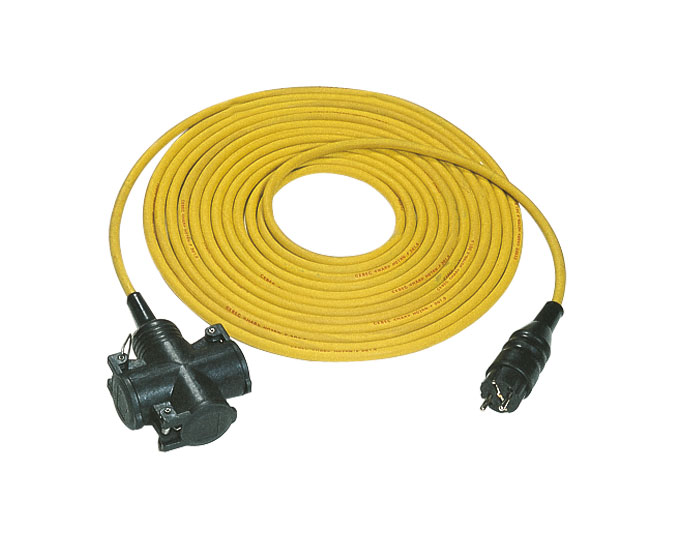

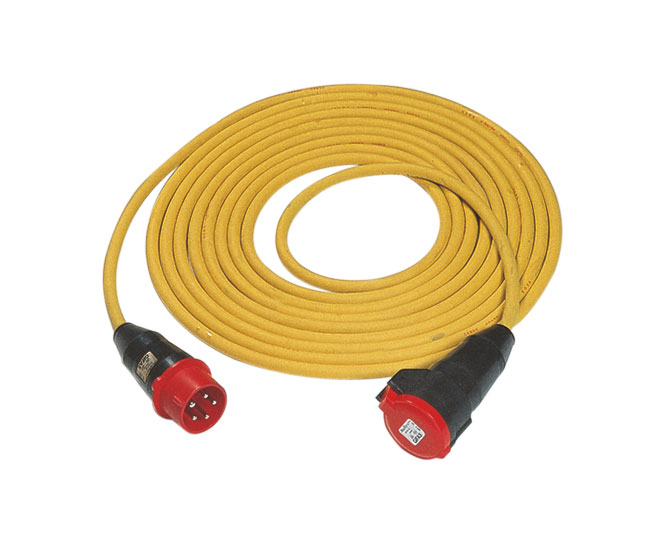

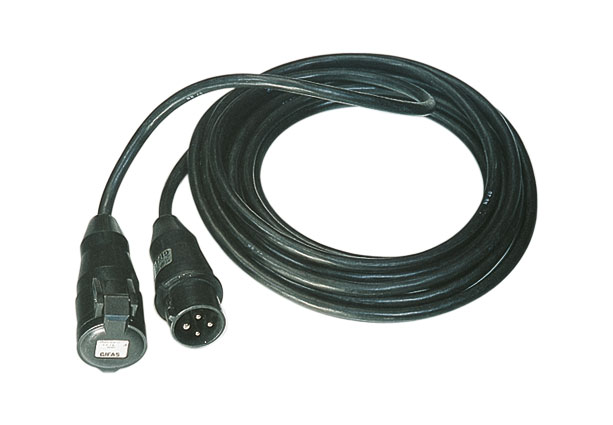

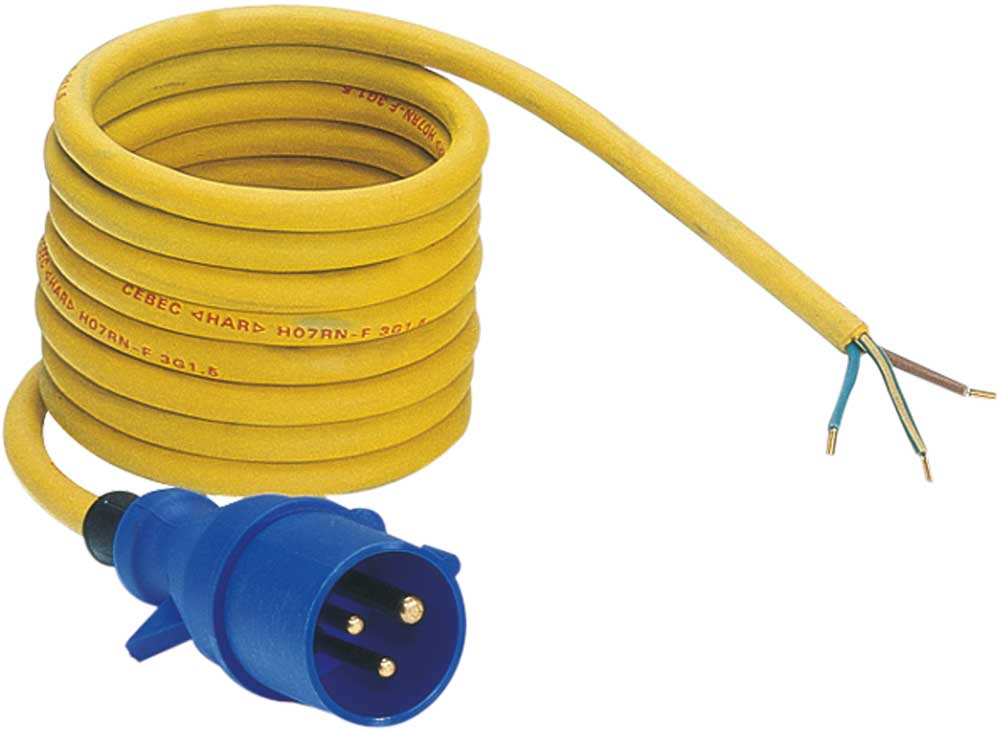

Special features:

  • Vulcanised contour plug on 2-wire cable
  • Vulcanised protective contact plug on 3-wire cable
  • mounted CEE plug
  • Free end stripped, uninsulated and equipped with wire end sleeves

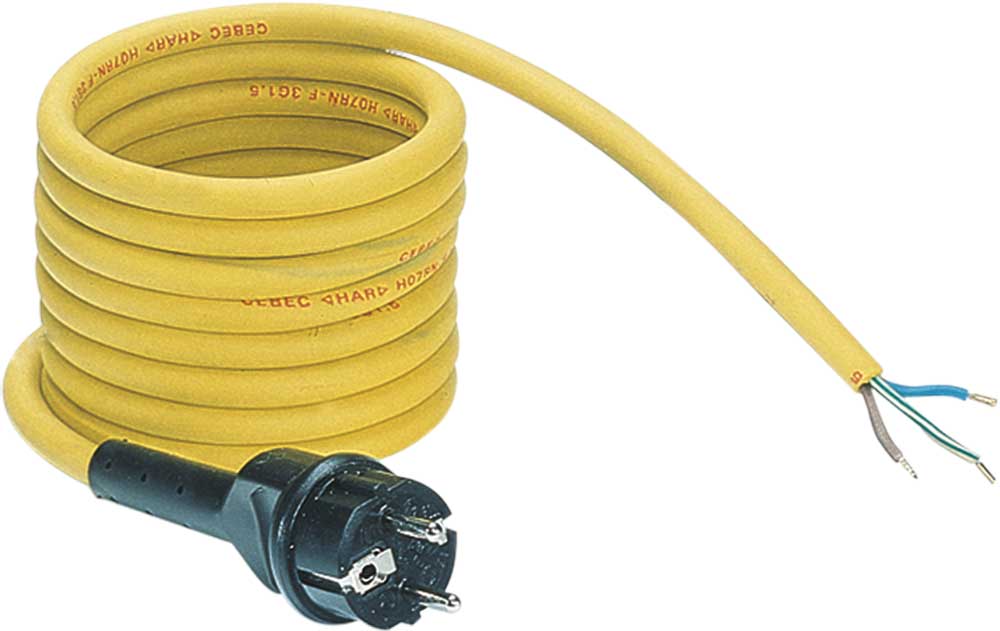

Technical specifications:

Cable type: H07 RN-F

Special features:

  • Vulcanised contour plug on 2-wire cable
  • Vulcanised protective contact plug on 3-wire cable
  • Free end stripped, uninsulated and equipped with wire end sleeves

Technical specifications:

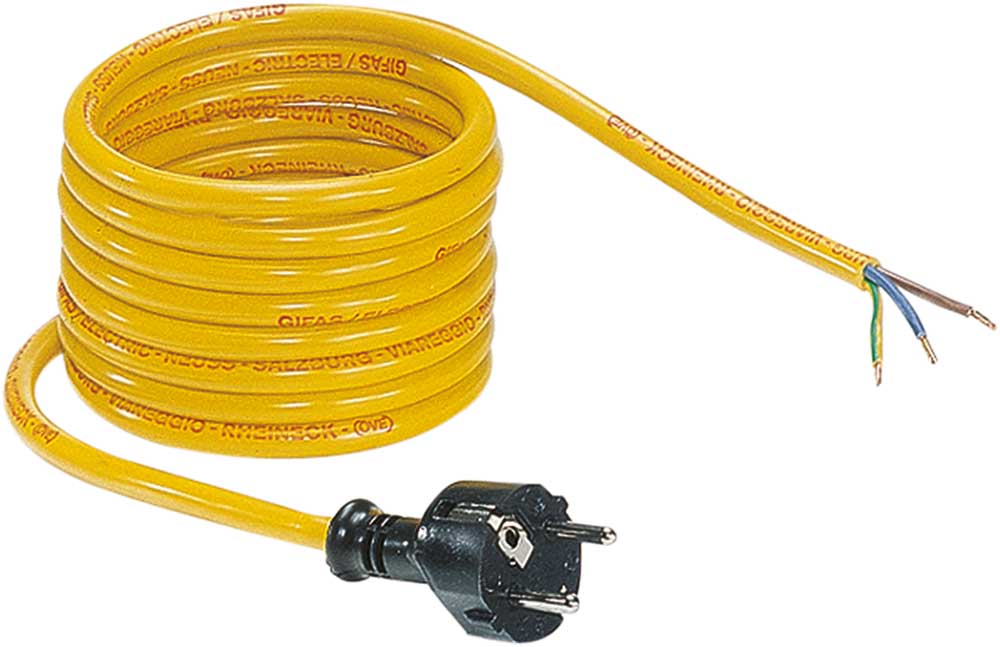

Cable type: Leuchtflex H05 VV-F

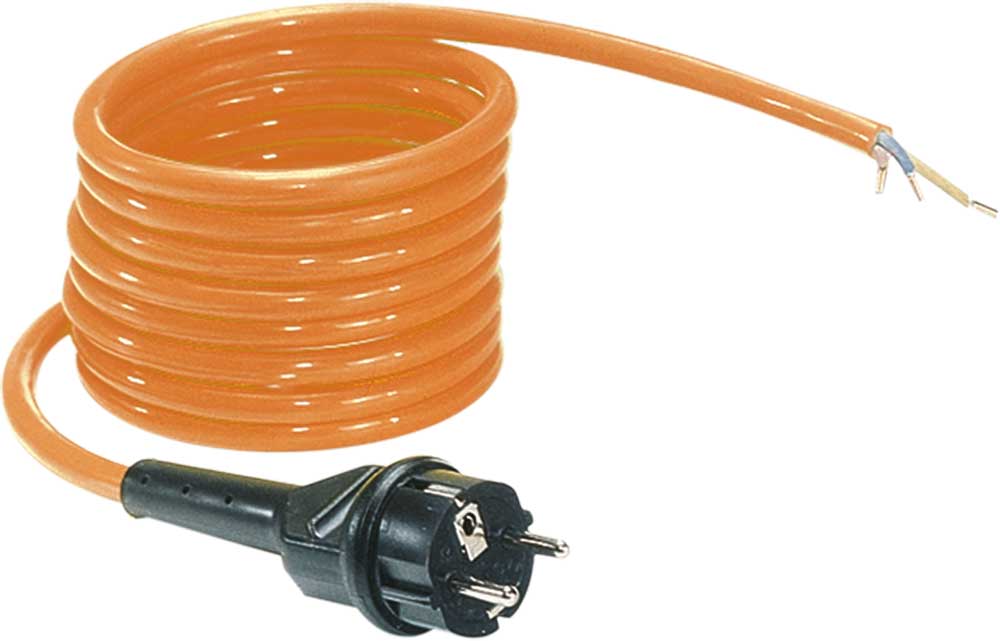

Cable type: Extremflex H05 BQ-F bzw. ab 1.5mm² H07 BQ-F

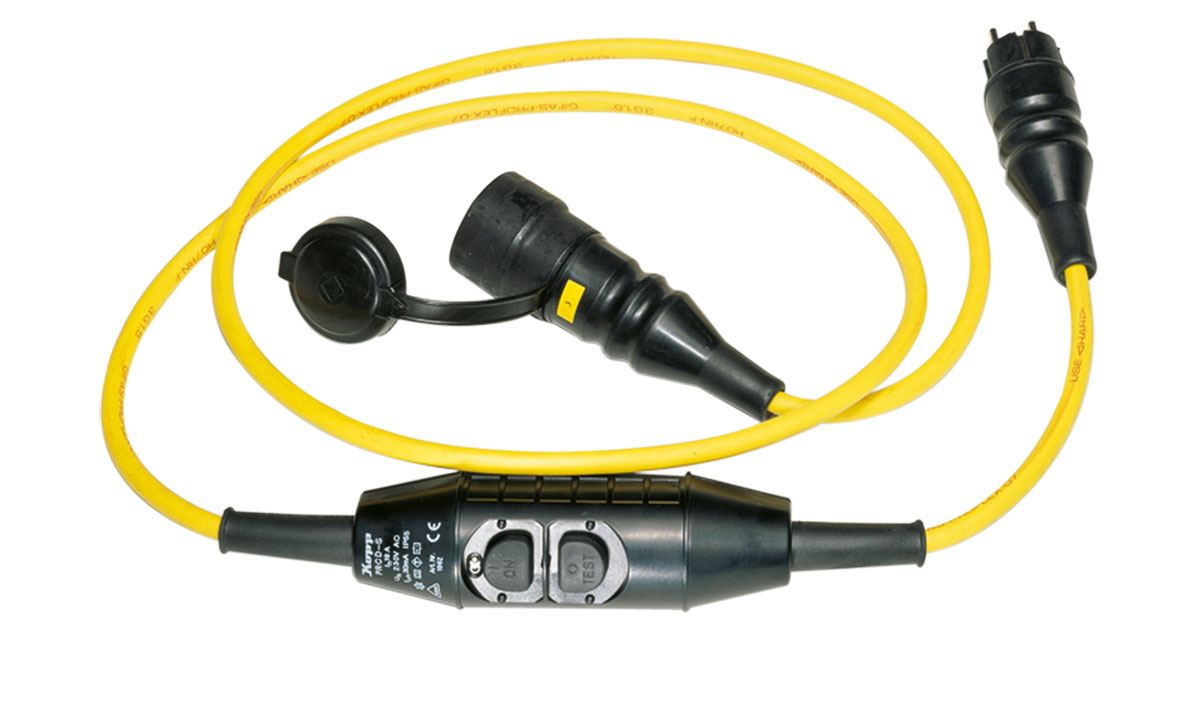

Special features:

  • H07 RN-F with moulded-on plug connectors
  • ALTERNATIVELY with residual current protection device PRCD-S
  • Encapsulated design for harsh conditions
  • Suitable for direct connection to the electrical device’s supply cable (H07 RN-F 3G 2,5 mm²)
  • Unaffected by the plug system used
  • Large, easy to operate ON and OFF buttons+
  • Additional visual switch position display
  • Undervoltage triggering
  • All-pole switching
  • Can be installed in cable drums and mobile distributors

Technical specifications:

With PRCD-S:
Rated voltage: 230 V / 50 Hz
Rated current: 16 A
Nominal fault current: 10 or 30 mA
Ambient temperature: based on a daily mean value that does not exceed Protection 35° C
Category: IP 55
Connection cross-section: 1 mm² to 2,5 mm²

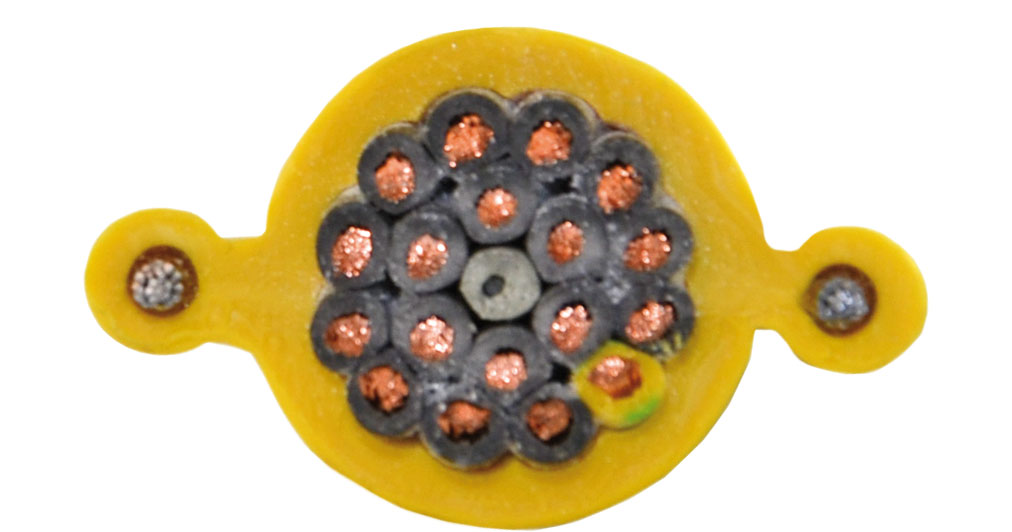

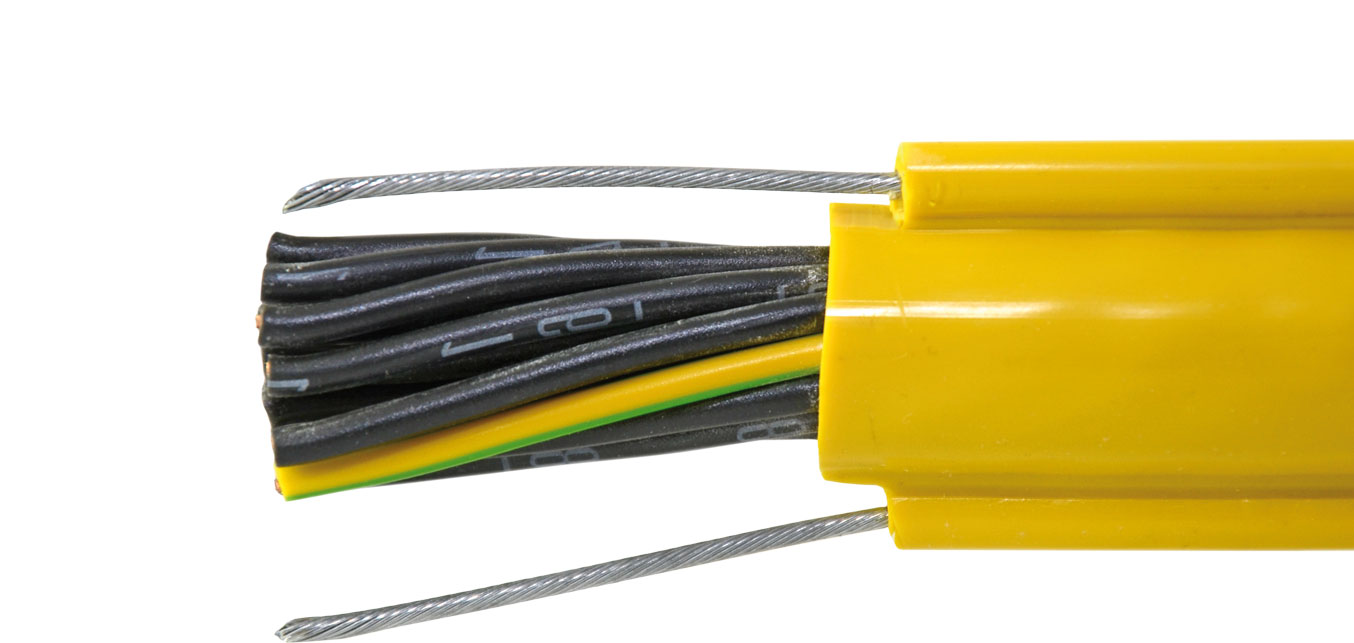

Special features:

  • Crane and lifting equipment control cable based on DIN EN 60811
  • Special mixture of cold-flexible, weather-resistant PVC acting both as a sheath and as a wire material

Technical specifications:

Carrying force: up to 135 kg
Critical point: approx. 190 kg
Temperature range: constant -30° C to +70° C defined -40° C to +70° C
Rated voltage Uo/U: 300 / 500 V
Test voltage: 3000 V

Special features:

  • High quality, long service life
  • Excellent recoil forces, even in cold climates
  • Tested with a million load cycles without failure
  • Microbe-resistant, therefore also suitable for refrigerated warehouses

Technical specifications:

Cable type: H05 BQ-F / H07 BQ-F
Temperature range: -30°C bis +80°C
Rated voltage Uo/U: 300 / 500 V (H05) – 450 / 750 V (H07)
Test voltage: 2000 V (H05) – 2500 V (H07)

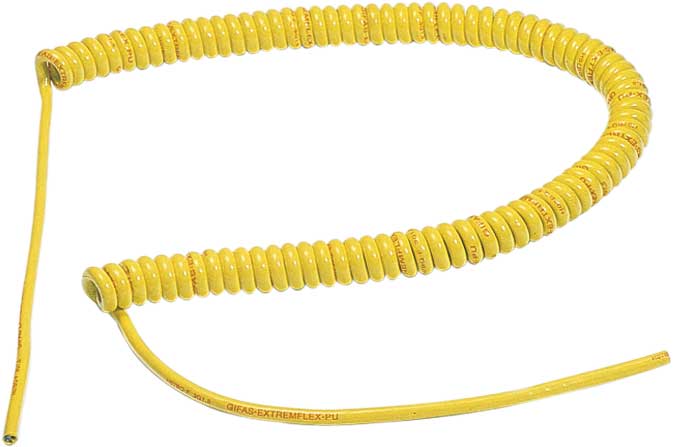

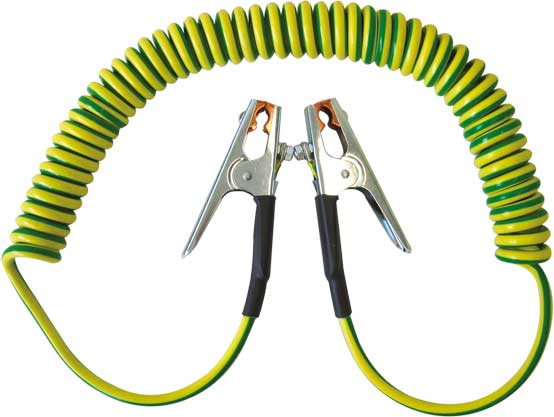

Special features:

  • Highly flexible grounding spiral cable
  • Low weight
  • Temperature and corrosion-resistant
  • Impact resistant in high and low temperature range
  • Relatively high compressive stability with low wall thickness
  • Seawater-resistant, shatter-proof and impact-resistant, resistant to termites, ozone-resistant
  • Extensively resistant to acids, alkalis and solvents
  • Oil-resistant exterior sheath

Technical specifications:

Temperature range: -40° C to 80° C – (short-term 100° C)
Operating voltage: 1000 V
Testing alternating voltage: 3500 V
Wire structure: ultra-fine wire Class 6
Coil length: 600 mm
Free ends: 450 mm
Extended length: 5000 mm
