- Robust housing made of corrosion-resistant die-cast aluminium
- Dirt-resistant PTFE surface coating, approved for the food industry
- Toughened safety glass (ESG) or impact resistant plastic cover (PC)
- Custom-made U-profile seal surrounding all sides
- Custom-made, durable, heat-conducting film for lasting, reliable dissipation of heat from the LED board
- Low heat generation thanks to the latest LED technology
- Pressure compensation element for extreme temperature fluctuations
- Full luminous flux is available instantly after switching on
- Low energy consumption with high light output
- Maintenance-free
- Wide operating temperature range (up to 60 °C)
- No UV/IR radiation
- Vibration-resistant
- For special projects also available in extremely vibration- and impact-resistant design

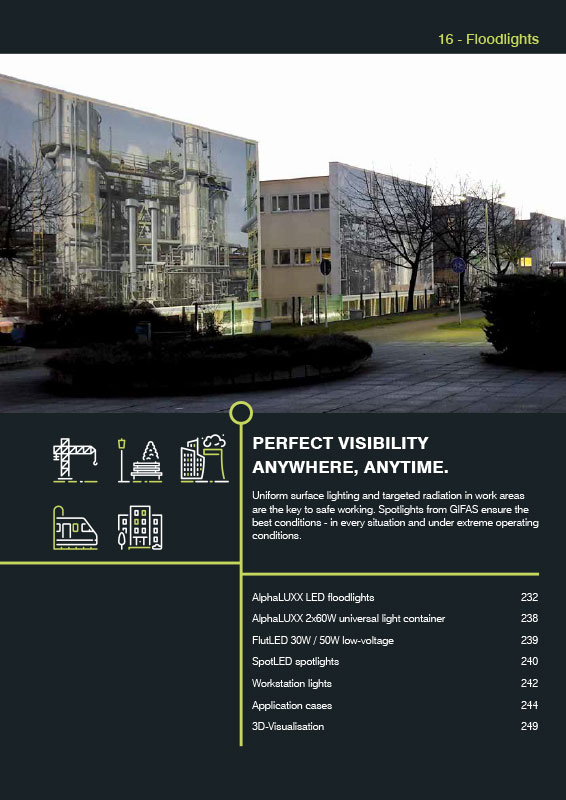

Catalog-Download

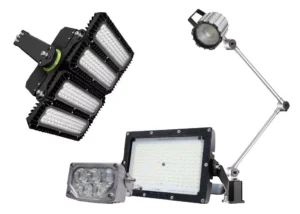

GIFAS spotlights provide an energy-efficient, long-lasting illumination for commercial, industrial and indoor and outdoor areas.
The correct light sources, safe and convenient, for tailored lighting for every lighting task.
For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!
Special features:
Technical specifications:
| Input voltage: | 100–277 VAC (50/60 Hz) |
| Light source: | SMD-LEDs |
| System performance: | 25 W / 40 W / 60 W |
| System efficiency: | 130 lm/W / 138 lm/W / 142 lm/W |
| Protection category: | IP 65 |
| Protection class: | I |
| Max. surface temperature: | +90 °C (suitable for use in industrial premises with fire hazards) / D rating label |
Special features:
- for special mechanical loads, such as use on moving or vibrating machine parts, conveyor belts or vehicles
- vibration-damped assembly of the ballast and special securing of all screws
- robust housing made of corrosion-resistant die-cast aluminum
- dirt-repellent PTFE surface coating
- 3 mm polycarbonate (PC) bespoke all-round U-profile seal
- Made-to-measure, long-lasting heat-conducting foil for permanent, reliable heat dissipation of the LED board
- low heat development thanks to the latest LED technology
- Pressure compensation element for extreme temperature fluctuations
- full luminous flux is available immediately after switching on
- low energy consumption with high luminous efficancy
- maintenance free
- wide temperature range (up to 60 ° C)
- no UV / IR radiation
- also available in dimmable version insensitive to vibrations
Technical specifications:
| Input voltage: | 100–277 VAC (50/60 Hz) |
| Light source: | SMD-LEDs |
| System performance: | 25 W / 40 W / 60 W |
| System efficiency: | 139 m/W / 136m/W / 128 lm/W |
| Protection category: | IP 65 |
| Protection class: | I |
| Max. surface temperature: | +90 °C (suitable for use in industrial premises with fire hazards) / D rating label |
Special features:
- Tremendous efficiency of up to 167 lumens per watt
- Also available in a dimmable version
- Robust housing made of corrosion-resistant die-cast aluminium
- Dirt-resistant PTFE surface coating, approved for the food industry
- 5mm toughened glass
- Custom-made U-profile seal surrounding all sides
- Custom-made, durable, heat-conducting film for lasting, reliable dissipation of heat from the LED board
- Low heat generation thanks to the latest LED technology
- Pressure compensation element for extreme temperature fluctuations
- Full luminous flux is available instantly after switching on
- Low energy consumption with high light output
- Maintenance-free
- Wide operating temperature range (up to 60 °C)
- No UV/IR radiation
- Vibration-resistant
- For special projects also available in extremely vibration- and impact-resistant design
Technical specifications:
| Input voltage: | 200–240 V AC (50/60 Hz) |
| Light source: | SMD-LEDs |
| System performance: | 86 W / 111 W / 128 W |
| System efficiency: | 149 lm/W / 149 lm/W / 146 lm/W |
| Protection category: | IP 65 |
| Protection class: | I |
| Max. surface temperature: | +90 °C (suitable for use in industrial premises with fire hazards) / D rating label |
Special features:
- for special mechanical loads, such as use on moving or vibrating machine parts, conveyor belts or vehicles
- vibration-damped assembly of the ballast and special securing of all screws
- robust housing made of corrosion-resistant die-cast aluminum
- dirt-repellent PTFE surface coating
- 3 mm polycarbonate (PC) bespoke all-round U-profile seal
- Made-to-measure, long-lasting heat-conducting foil for permanent, reliable heat dissipation of the LED board
- low heat development thanks to the latest LED technology
- Pressure compensation element for extreme temperature fluctuations
- full luminous flux is available immediately after switching on
- low energy consumption with high luminous efficancy
- maintenance free
- wide temperature range (up to 60 ° C)
- no UV / IR radiation
- also available in dimmable version insensitive to vibrations
Technical specifications:
| Input voltage: | 200–240 V AC (50/60 Hz) |
| Light source: | SMD-LEDs |
| System performance: | 86 W / 111 W / 128 W |
| System efficiency: | 149 lm/W / 149 lm/W / 146 lm/W |
| Protection category: | IP 65 |
| Protection class: | I |
| Max. surface temperature: | +90 °C (suitable for use in industrial premises with fire hazards) / D rating label |
Special features:
- Vibration-resistant
- Housing with cooling fins for optimised heat dissipation
- Housing available in white, silver-grey, black
- Clip made from stainless steel V2A, powder-coated
- Various beam angles available (different lenses)
- Connection via potentiometer possible for brightness adjustment (500 kOhm, positive logarithm)
Technical specifications:
| Voltage: | 12–30 VDC or 24 VDC via 230 VAC power supply unit |
| Illuminants: | 5 x Power LEDs |
| Beam angle: | Spot 10° / Medium 38° / Wide 67° |
| System performance: | 10W |
| Luminous flux: | 750lm |
Special features:
- Overtemperature protection
- Dimmable
- Colour cool white, comfort white, warm white
- Wall mountable
Technical specifications:
| Voltage: | 230 VAC |
| Illuminants: | 8 x 3 W Power LEDs |
| Beam angle: | Spot 10° / Medium 38° / Wide 67° |
Special features:
- Small light in a modern design
- Vibration-proof
- Ready for use instantly, flicker-free
- Can be supplied as a wide or broad beam
Technical specifications:
| LED power: | 5 x 3 W PowerLEDs |
| Voltage: | 12–30 VDC |
| Beam angle: | Spot 10° / Medium 38° |
Special features:
- Low energy consumption with high light output
- Minimal heat generation
- No UV / IR radiation
- Shock and impact insensitive
- Can be switched on and off over 1 million times
- Maintenance-free
Technical specifications:
| LED power: | 1 x 20 W |
| Voltage: | 230 V AC and 24 V AC / DC |
| Illuminance: | 1,500 lm |
| LED lifespan: | > 50,000 h |
| LED LED switching capacity: | > 1 million times |
Special features:
- Robust housing made of corrosion-resistant die-cast aluminium
- Dirt-resistant PTFE surface coating, approved for the food industry
- Toughened safety glass (ESG) or impact resistant plastic cover (PC)
- Custom-made U-profile seal surrounding all sides
- Custom-made, durable, heat-conducting film for lasting, reliable dissipation of heat from the LED board
- Low heat generation thanks to the latest LED technology
- Pressure compensation element for extreme temperature fluctuations
- Full luminous flux is available instantly after switching on
- Low energy consumption with high light output
- Maintenance-free
- Wide operating temperature range (up to 60 °C)
- No UV/IR radiation
- Vibration-resistant
- For special projects also available in extremely vibration- and impact-resistant design
Technical specifications:
| Input voltage: | 100–277 VAC (50/60 Hz) |
| Light source: | SMD-LEDs |
| System performance: | 80 W / 100 W / 120 W |
| System efficiency: | 139 m/W / 136m/W / 128 lm/W |
| Protection category: | IP 65 |
| Protection class: | I |
| Max. surface temperature: | +90 °C (suitable for use in industrial premises with fire hazards) / D rating label |
| Beam angles: | 60°, 90° symmetric |
Special features:
- full luminous flux, is available immediately
- low energy consumption with high light output
- minimal temperature development
- high energy efficiency
- maintenance-free
- no UV / IR radiation
- shock and vibration insensitive

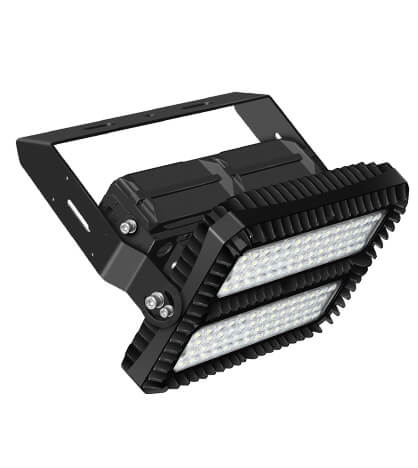

Technical specifications:
| Input voltage: | 100-230 VAC (50/60 Hz) |
| System performance: | 230 W / 450 W / 680 W / 900W |
| LED-Efficiency: | 35,800 lm / 65,700 lm / 100,100 lm / 134,000 lm |
| Protection category: | IP 66 |
| Protection class: | I |
| Light color: | 5,000 K (300W) / 5,700 K (450W-900W) |
| Impact resistance: | IK 10 |
| Housing: | Die-cast aluminium |
| Operating range of temperature: | -20°C to +50°C |
