Mobile distributors

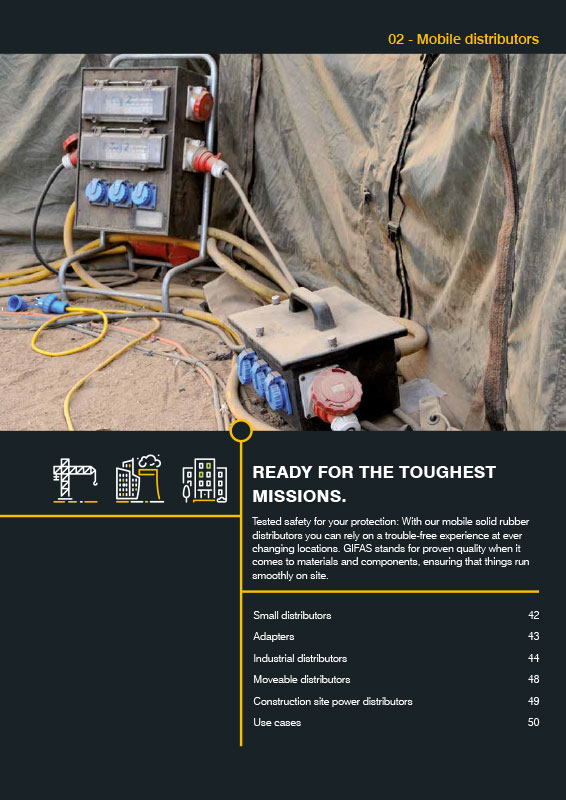

PDF-Download

Thanks to our underfloor distributors, electrical power is quickly available anywhere and without time-consuming installation work! Tailored, customized equipment according to choice.
As with all our products, we attach tremendous importance to using high-quality components and production techniques.

One material plays a vital role for GIFAS products: solid rubber made from butyl rubber. This elastomer possesses numerous properties that make it the ideal material for hard-working products. These properties include, for example, the excellent attenuation of oscillation and impact energy, the strong resistance to acids and bases, excellent resistance to weather, UV and ozone and a high electrical insulating capacity.

Further product properties of mobile distributors:

  • All external metal parts made from rust-proof material
  • Solid rubber sockets with nickel-plated contact sleeves
  • Fuse elements protected with special shock-resistant cover
  • SS screws set in rust-proof brass press-fit bushings with dual anchor
  • Wired ready for connection
  • parts can be exchange individually
  • Protection category up to IP 65
  • Self-extinguishing and flame-resistant
  • Comply with all minimum standards requirements for equipment
  • of Category 2 “K2”

For further information please have a look in our PDF at the left side or contact us! We look forward to hearing from you!

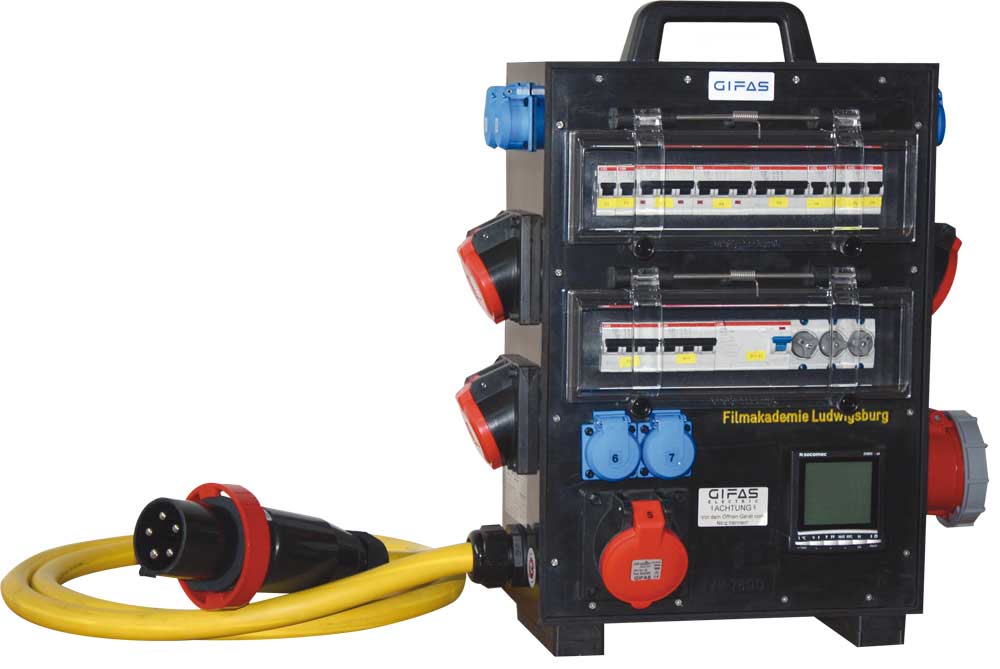

Special features:

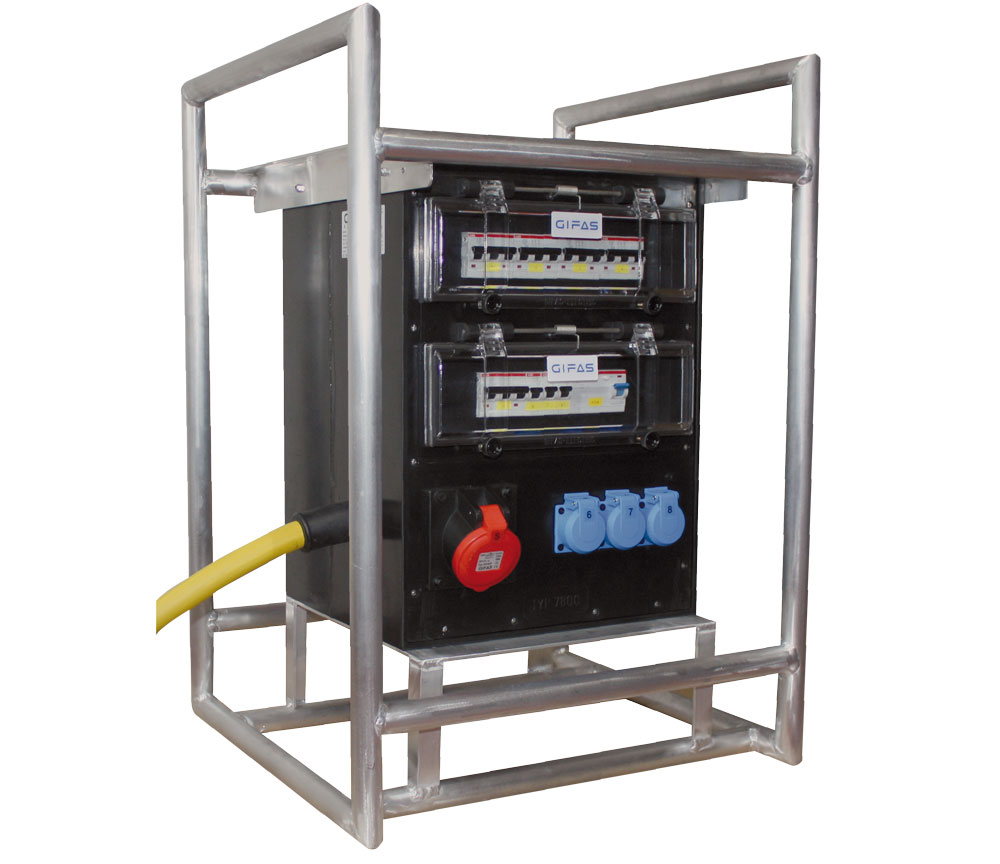

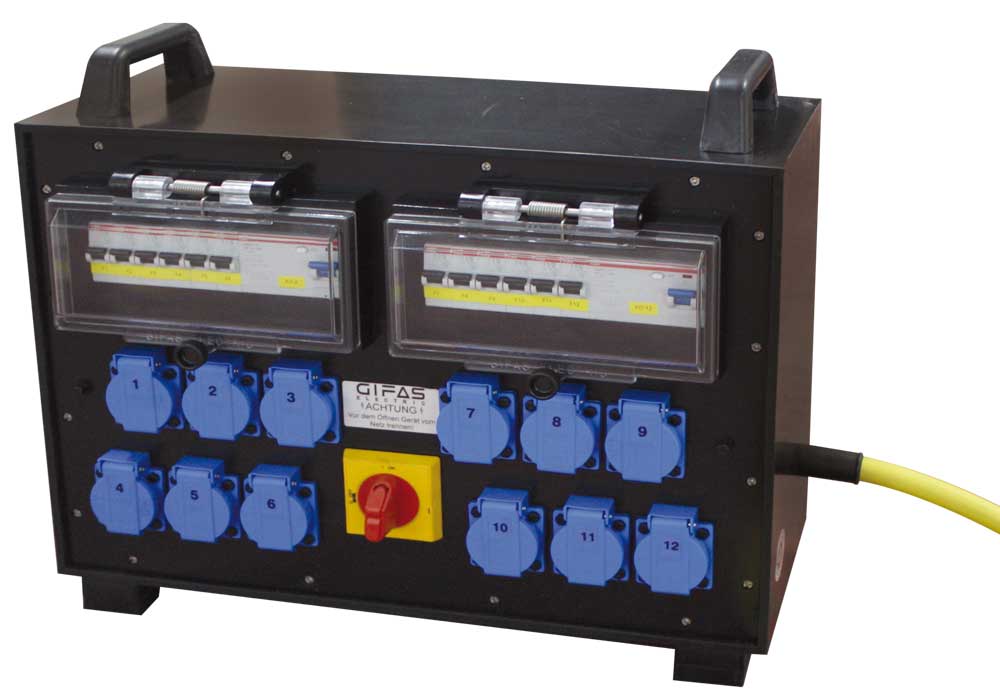

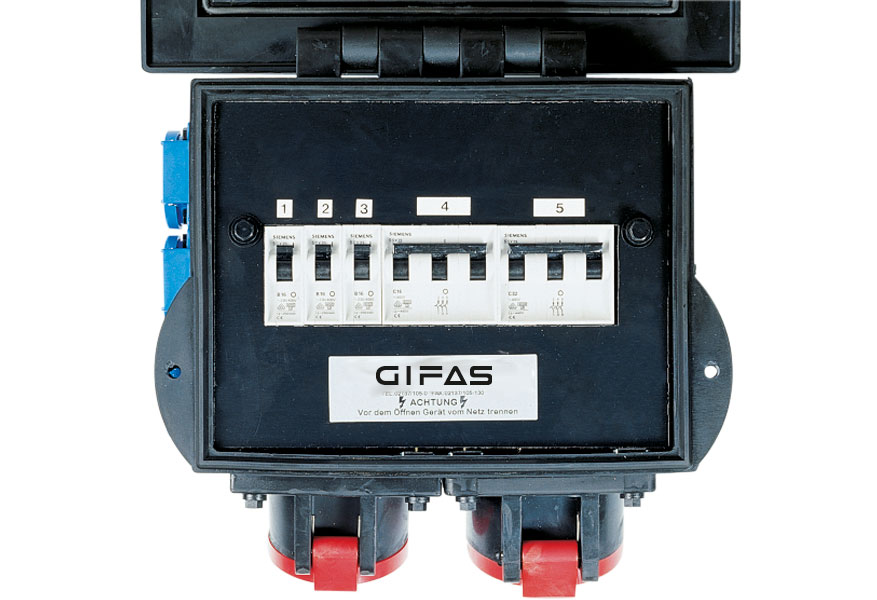

  • Miniature circuit breakers under transparent protective cap: 51 (17 per transparent protective cap)
  • Wired ready for connection
  • With 4 adjustable feet and 1 or 2 carrying handles
  • Available with electronic meters
  • Available as a double distributor, mounted back-to-back

Technical specifications:

Dimensions:H x B x T = 500 x 360 x 173 mm
Weight:23.0 kg

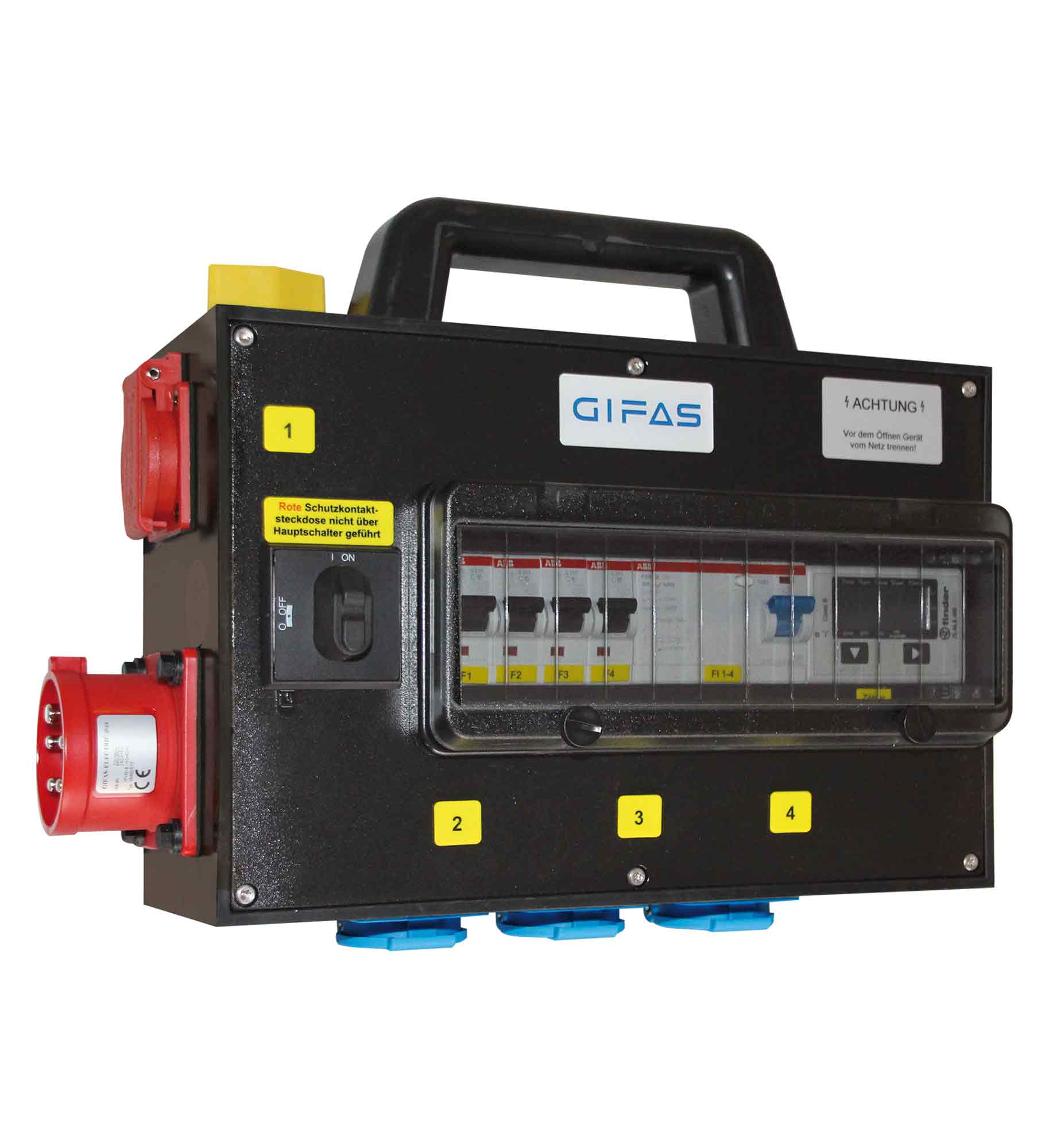

Special features:

  • Wired ready for connection

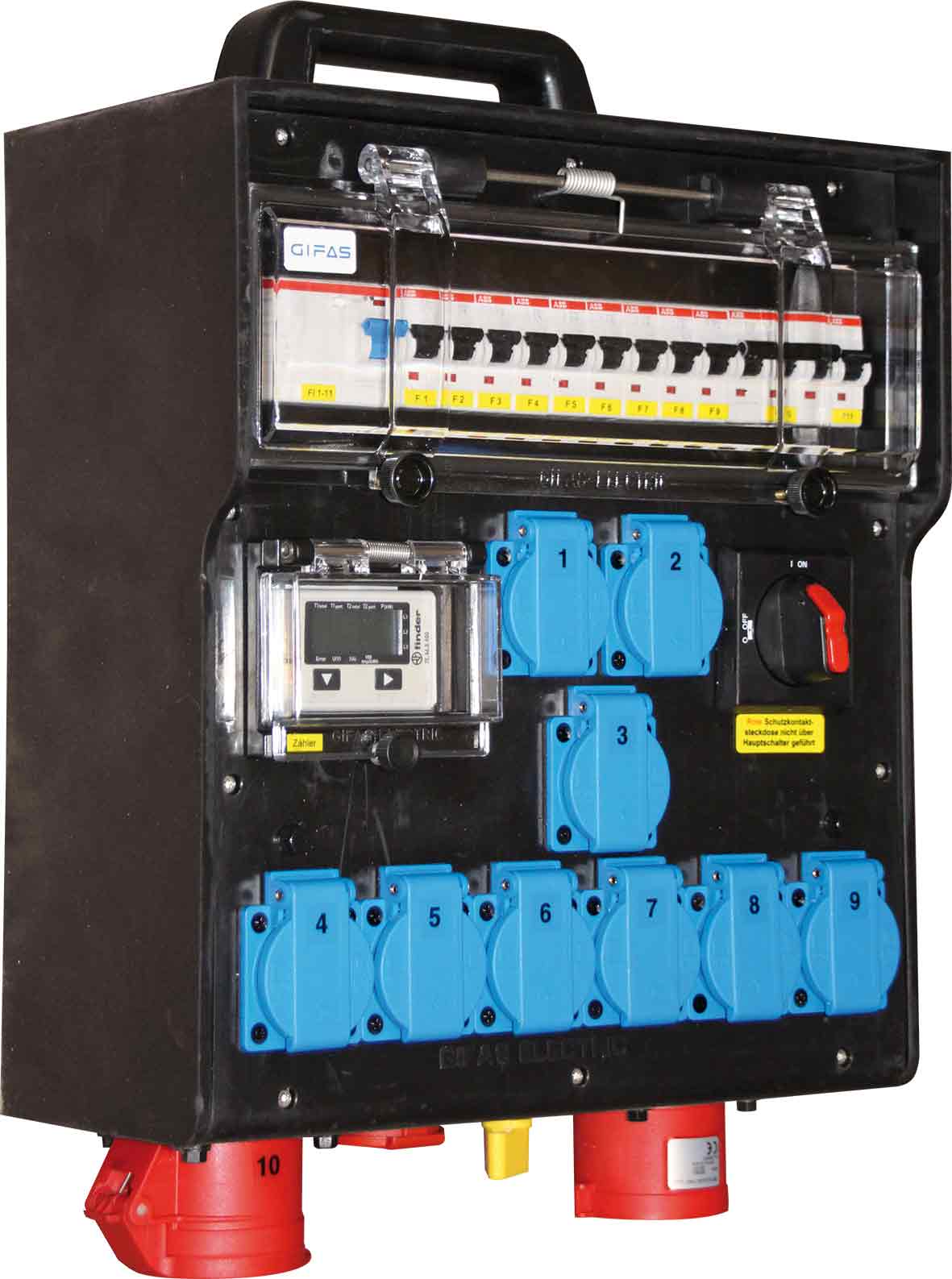

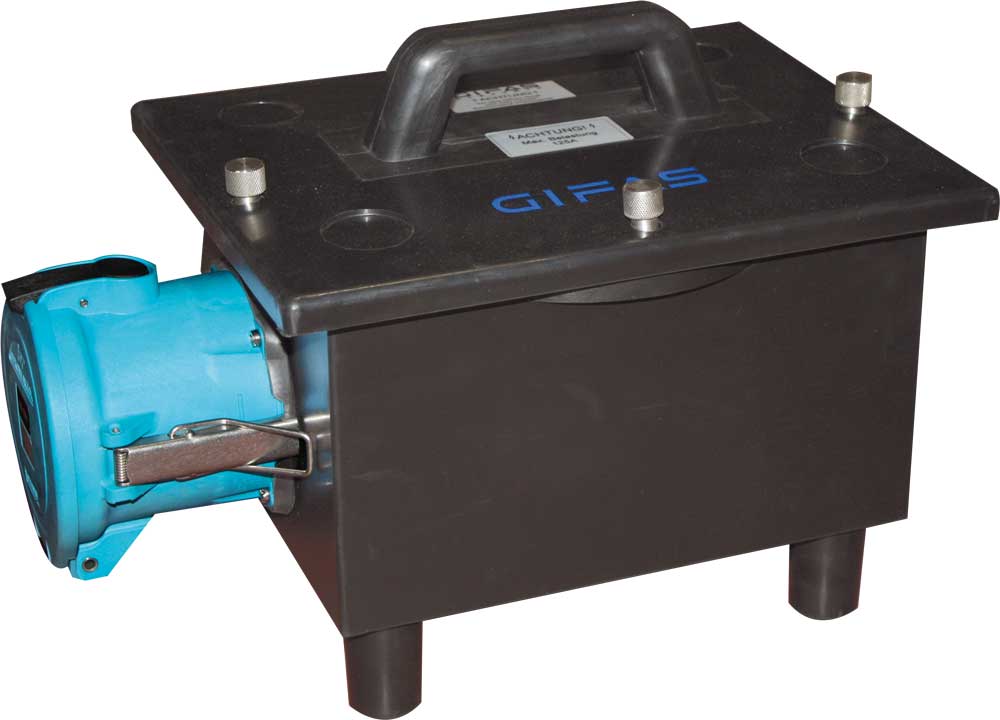

  • Deliverable with a maximum of 20 miniature circuit breakers inside under the cover plate (with 2 quick release screws)
  • With 4 adjustable feed and a carrying handle
  • Optional tool-free opening via quick lock screws

Technical specifications:

Dimensions:H x B x T = 305 x 350 x 280 mm
Weight:14.0 kg

Special features:

  • Wired ready for connection
  • Deliverable with a maximum of 9 miniature circuit breakers inside under the cover plate (with 2 quick release screws)
  • With 4 adjustable feed and a carrying handle
  • Optional tool-free opening via quick lock screws

Technical specifications:

Dimensions:H x B x T = 275 x 280 x 230 mm
Weight:approx. 6.0 – 8.0 kg

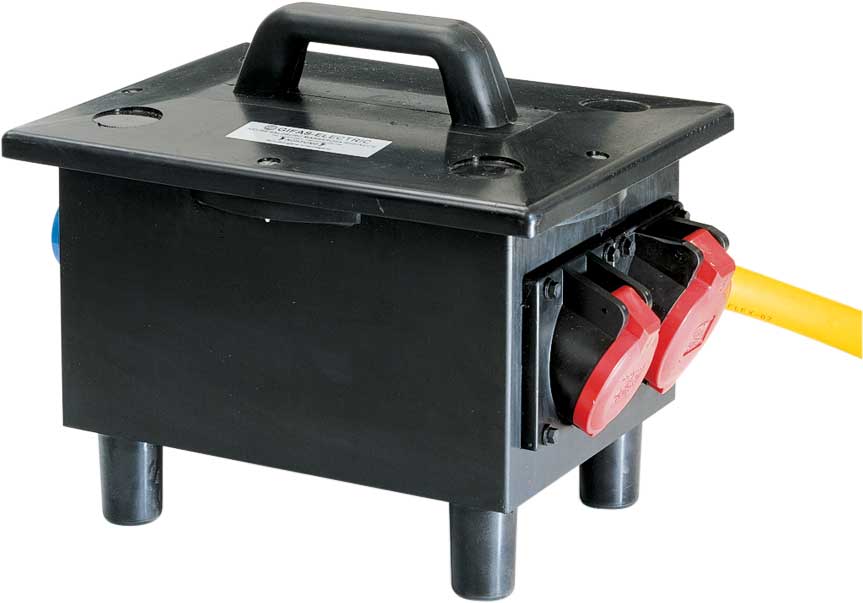

Special features:

  • Wired ready for connection

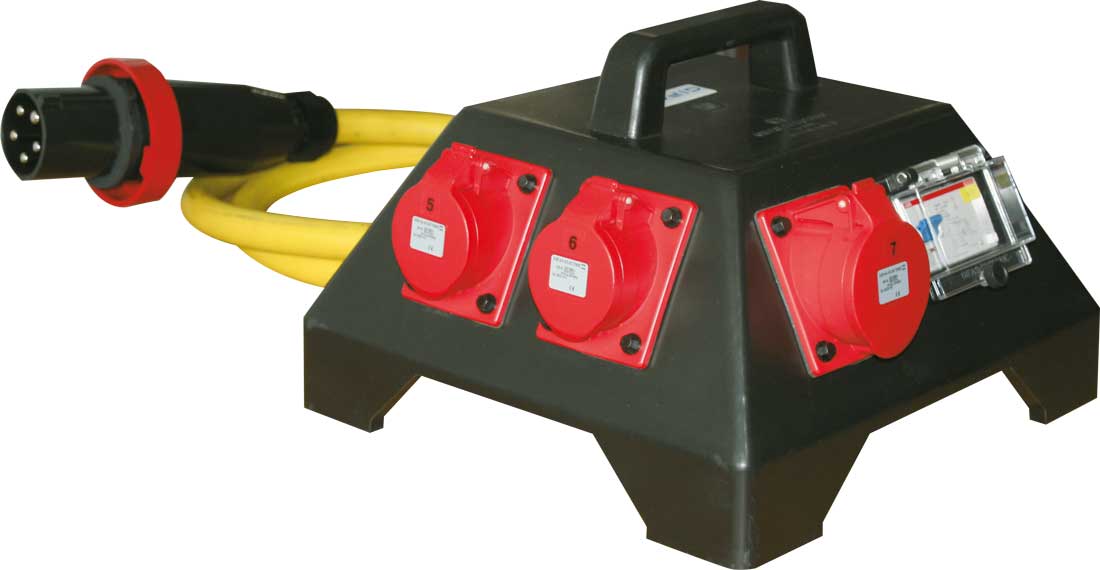

  • Deliverable with a transparent protective cover for a maximum 11 miniature circuit breakers, or 15 miniature circuit breakers inside the distributor base
  • With 4 adjustable feed and a carrying handle
  • Optional tool-free opening via quick lock screws

Technical specifications:

Dimensions:H x B x T = 250 x 361 x 361 mm
Weight:approx. 15.0 kg

Special features:

  • In-built thermocouple can be installed on request for tangential fan control
  • External screws are made from stainless steel and are captive
  • Easy to service designs as all parts are individually replaceable
  • Transformers according to VDE 0570, IEC 61558
  • Safety isolated housings according to VDE 0100 part 410

Technical specifications:

Power:120–160 VA
Voltage:230 V / 230 V
Versions:Toroidal core transformer

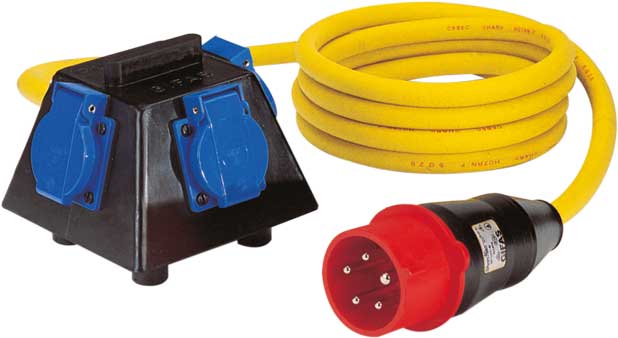

Special features:

  • Wired ready for connection
  • With 4 adjustable feed and a carrying handle
  • Easy to service
  • All parts are individually replaceable

Technical specifications:

Dimensions:H x B x T = 115 x 130 x 130 mm
Weight:approx. 0.8 – 2.5 kg

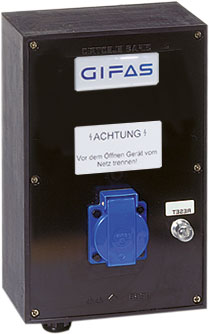

Special features:

  • Wired ready for connection
  • Easy to service
  • All parts are individually replaceable

Technical specifications:

Dimensions:H x B x T = 184 x 92 x 53 mm
Weight:1.5 kg

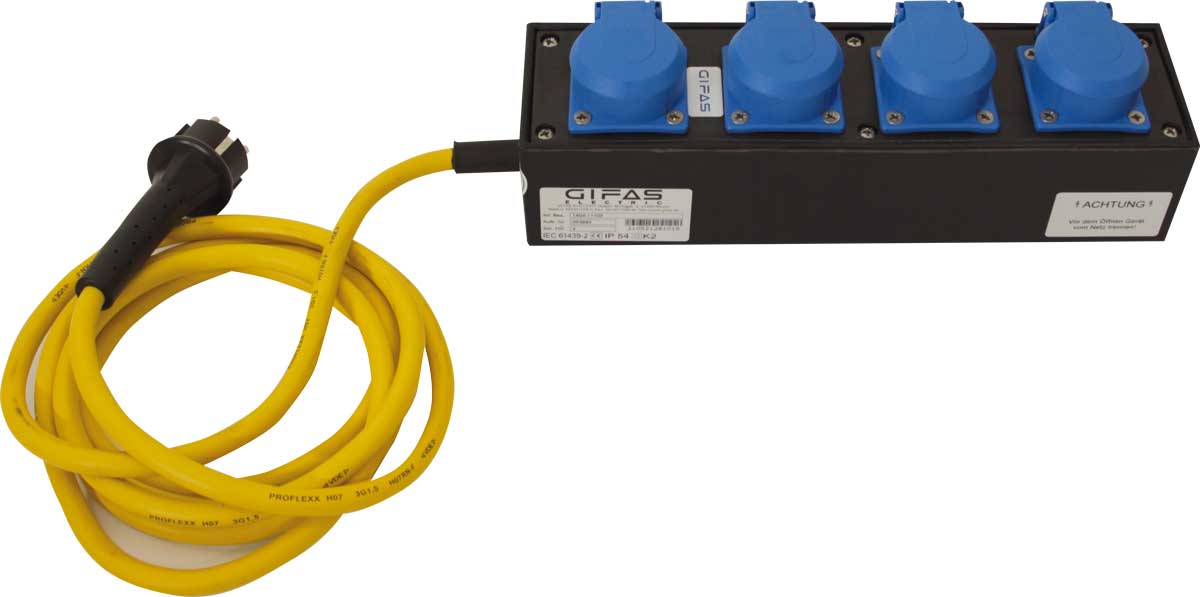

Special features:

  • Wired ready for connection
  • Available with a transparent protective cover for a maximum of two miniature circuit breakers
  • Easy to service
  • All parts are individually replaceable

Technical specifications:

Dimensions:H x B x T = 290 x 78 x 91 mm
Weight:2.0 kg

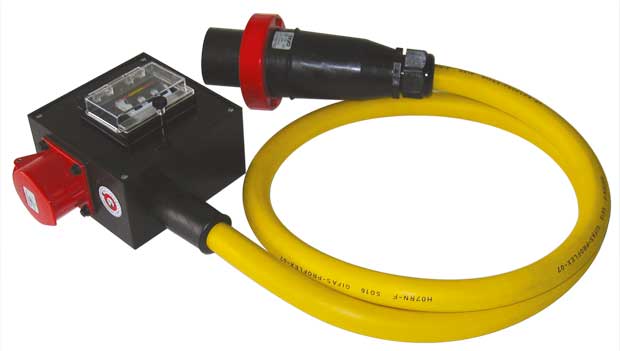

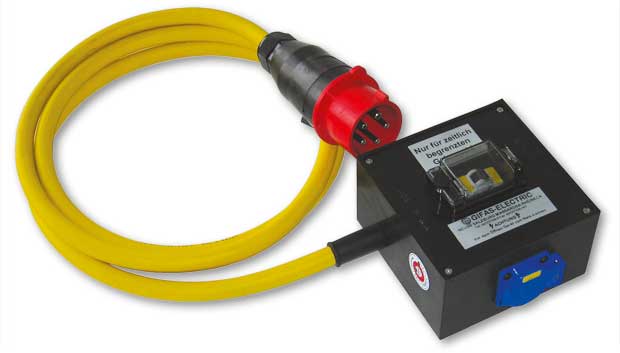

Special features:

  • GIFAS adapters are manufactured according to VDE regulations
  • The design requirements for adaptors are laid down in the VDE 0623 series of regulations, in particular part 4, or compliant with them

Special features:

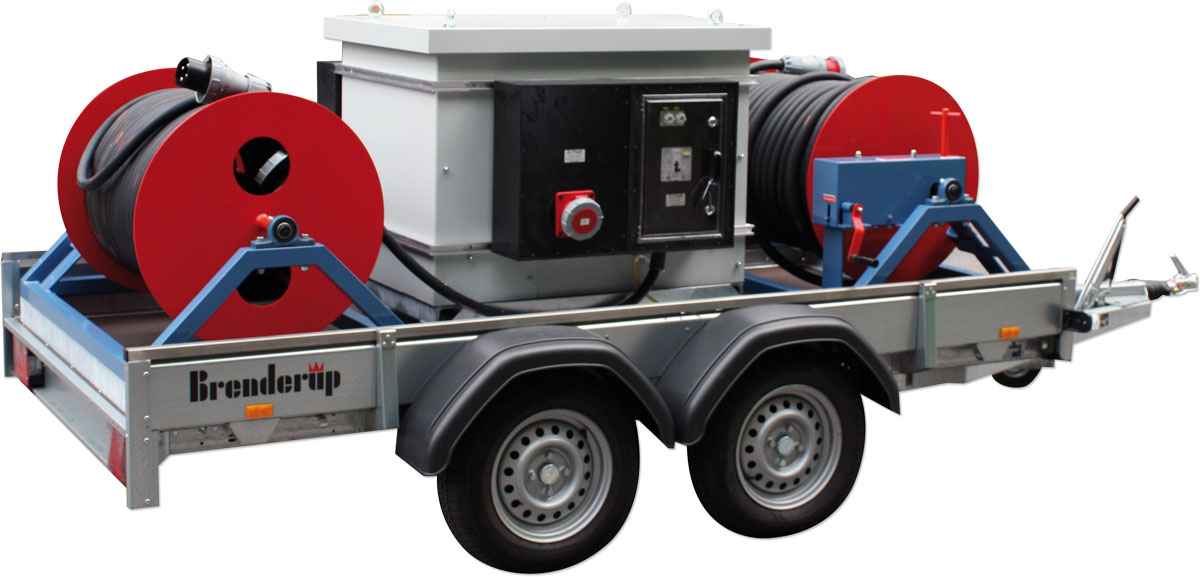

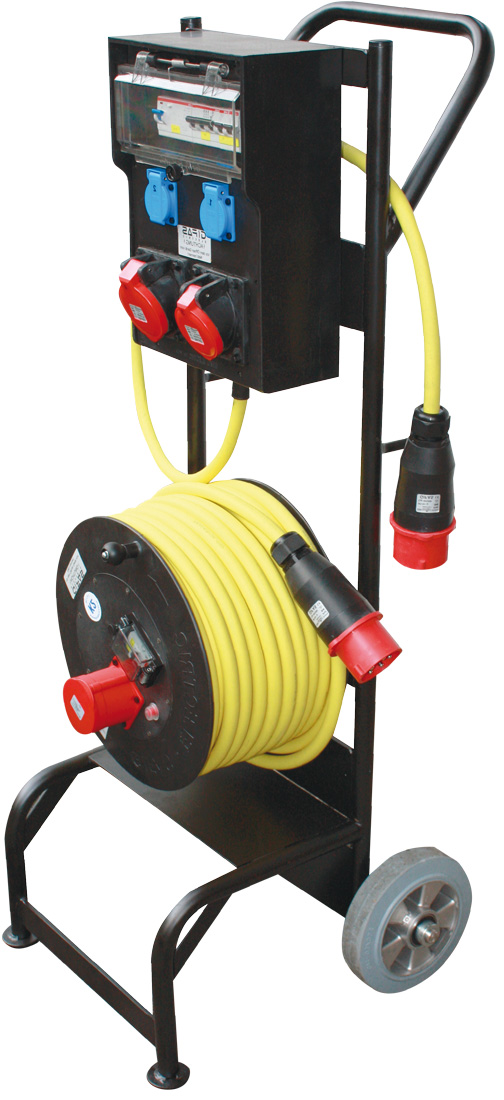

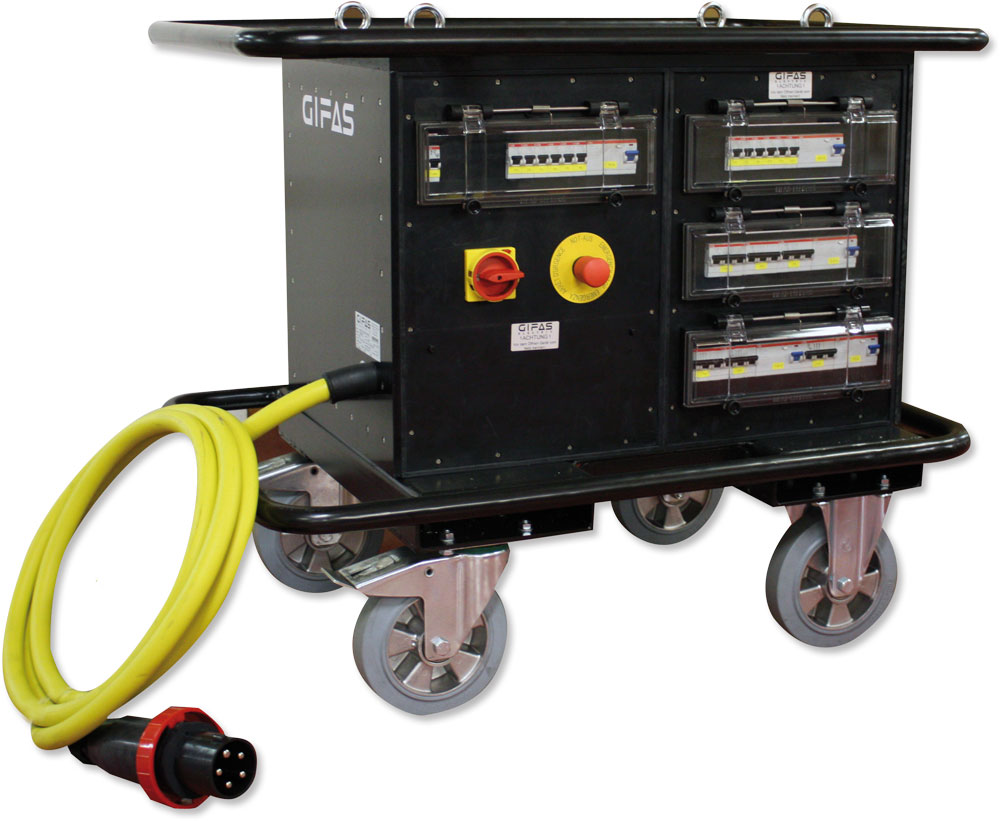

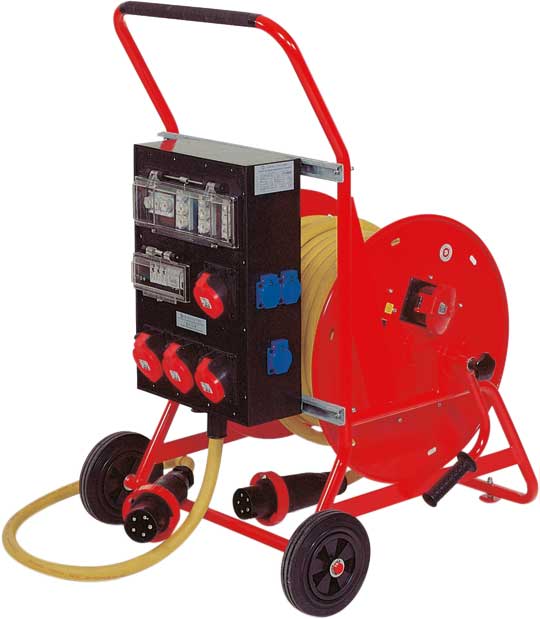

  • For complex mobile power distribution
  • In combination with cable reels as needed
  • According to your requirements

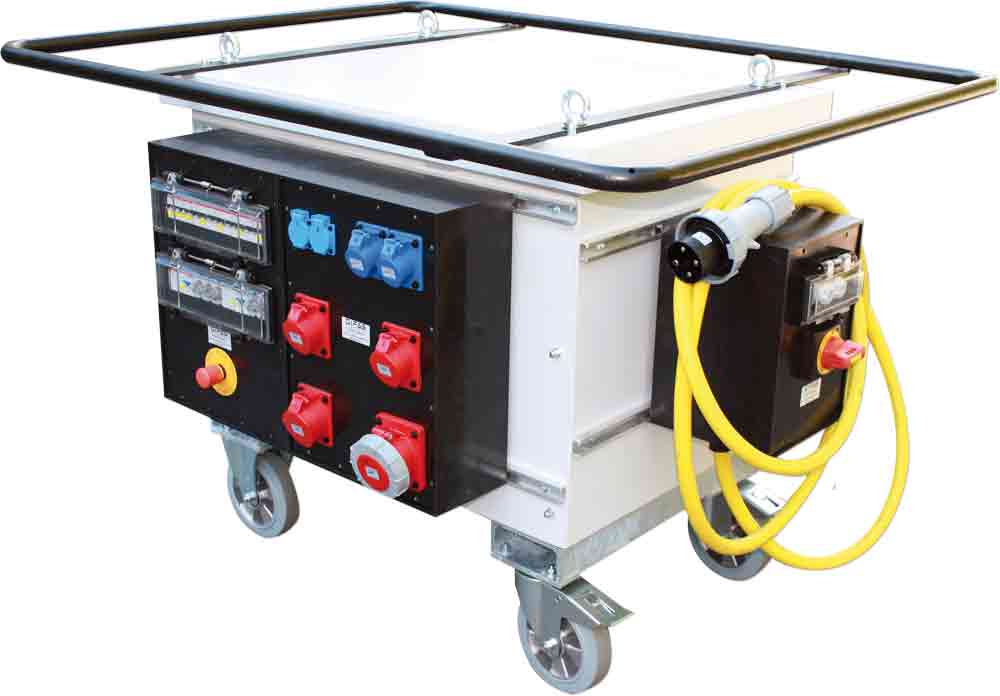

Special features:

  • Attachments and sockets are built into the solid rubber housing
  • Extreme temperature resistance down to - 40° C, weather independent
  • Doors are lockable, even whilst in use
  • Improved safety thanks to multiple RCD breakers
  • Resistant and robust
  • Electronic Integrated into proven solid rubber housing
  • Stable, corrosion resistant sheet steel housing
  • Powder coated, with galvanized steel frame
  • 2 lifting eyes

Special features:

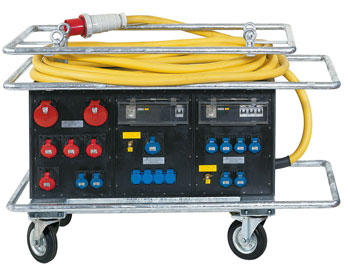

  • Manufacturing to customer specifications
  • Almost unlimited possibilities for implementation
  • For major revisions, assembly, construction sites, inspection and assembly areas in the industry, concert and festival events or theaters
