Industrial lighting

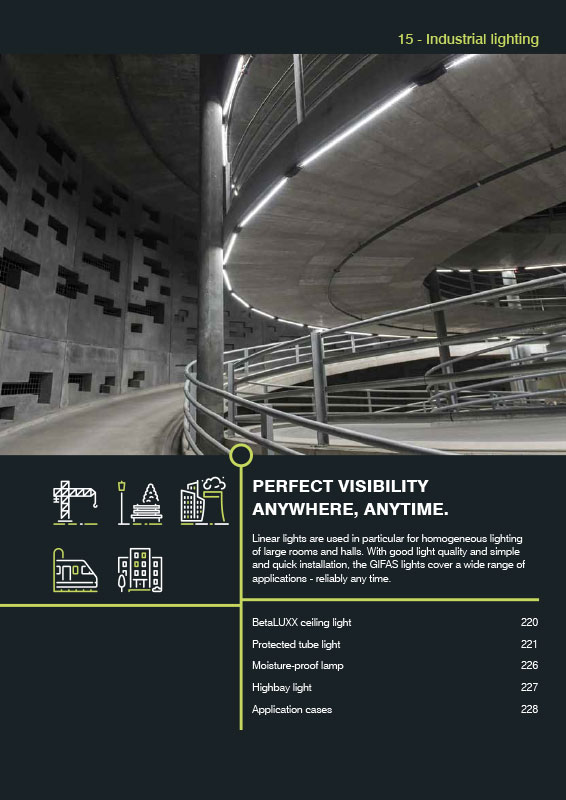

Catalog-Download

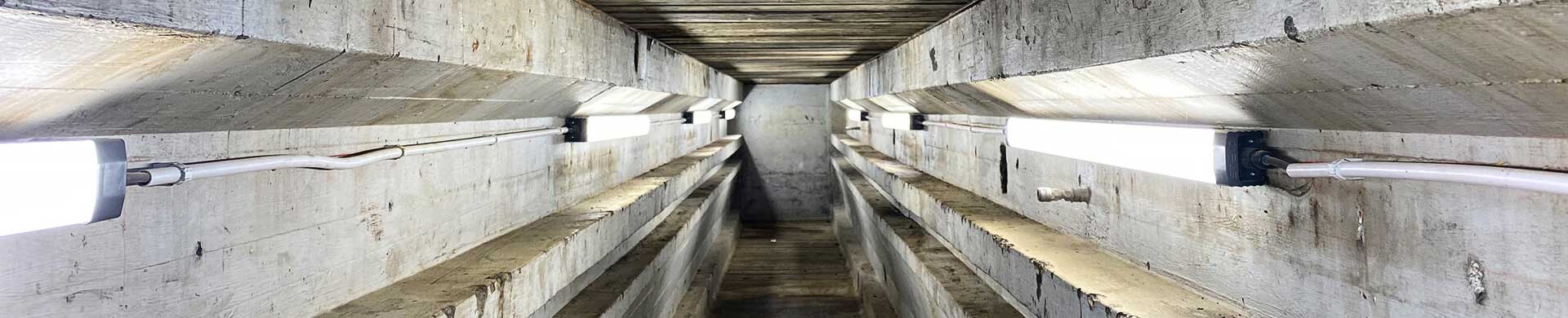

GIFAS has revised its range of protective tube lights completely. In particular, the degree of protection has been raised up to IP68 and the connection has been massively improved. The protective tube lights work thanks to their high protection even in extreme working environments without any trouble and maintenance!

For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!

Special features:

  • Full luminous flux, is available immediately
  • low energy consumption with high light output
  • minimal temperature development
  • at least 50,000 hours of operation
  • shockproof cover (IK10)
  • high energy efficiency
  • maintenance-free
  • Stainless steel closures and fasteners
  • no UV / IR radiation
  • shock and vibration insensitive
  • Incl. through-wiring 5 x 2,5qmm

Technical specifications:

Input voltage: 220–240 VAC
Cover: GFK
Light colour: 5,000 K
Temperature operation range: -15 to +35 °C
Protection class: I
Protection category: IP 65
Beam Angle: 120°
Shock resistance: IK 10

Special features:

  • even light dispersion
  • low glare effect thanks to satin-finish cover
  • simple installation via mounting clip (including delivery) made of stainless spring steel (1,4310)
  • low energy consumption with high luminous efficacy
  • 5 years warranty

Technical specifications:

Input voltage: 220~277 V AC
Cover: aluminum grey
Light colour: 3,000 K / 4,000 K / 5,000 K
Temperature operation range: -20 °C to +40 °C
Protection category: IP 66
Impact resistant: IK 10
Beam Angle: 120°
Illuminance: 1,964 lm / 3,929 lm / 6,574 lm
LED efficiency: 120 lm/W
System efficiency: 20 W / 35 W / 55 W
Dimensions: 20 W: 570 x 69.3 x 59.4 mm
Dimensions: 40 W: 1,064 x 69.3 x 59.4 mm
Dimensions: 60 W: 1,524 x 69.3 x 59.4 mm

Special features:

  • Reduced current consumption
  • 40 % less heat generation than with fluorescent bulbs
  • No starter and no EBU required
  • Use of ultra-modern, patented LEDs
  • Consistent illumination, regardless of ambient temperature
  • Unbreakable (workplace safety)
  • Non-dimmable
  • Feed-through wiring
  • Tube shock-resistant Plexiglas

Technical specifications:

Operating voltage: 230 V AC
Illuminant: T8 LED tube
Light colour: 4,000 K
Temperature range: -25 °C to +50 °C
Protection category: IP 65
Protection class: II
System performance: 17W

Special features:

  • Reduced current consumption
  • 40 % less heat generation than with fluorescent bulbs
  • No starter and no EBU required
  • Use of ultra-modern, patented LEDs
  • Consistent illumination, regardless of ambient temperature
  • Unbreakable (workplace safety)
  • Non-dimmable
  • Feed-through wiring
  • Tube shock-resistant Plexiglas

Technical specifications:

Operating voltage: 230 V AC
LED lifetime: min. 40,000 h
Illuminant: T8 LED tube
Light output: 1,200 lm / 2,600 lm / 3,200 lm
Light colour: 4,000 K
Temperature range: -25 °C to +45 °C
Protection category: IP 68
Protection class: II/III
Dimensions: Ø 54 mm

Special features:

  • Fluorescent bulb in rod shape or compact fluorescent bulb
  • Light body made from shock-resistant PMMA or borosilicate glass
  • All screws and brackets in stainless steel
  • Resistant to chemical and mechanical influences
  • Sealing cover made from fibreglass-reinforced nylon 66, dust and water tight
  • Large choice of different outputs, lengths and voltagess

Technical specifications:

Operating voltage: 12/24 VDC – 24/42/230 VAC
Tube: makrolon / borosilicate glass
Light colour: 4,000 K
Temperature range: -25 to +45 °C
Ballast unit: EBU built in*
Protection category: IP 68
Protection class: II/III
Dimensions: Ø 70 mm

Special features:

  • high efficiency and uniformity of light
  • robust and impact resistant
  • energy saving
  • easy construction
  • suitable for use in the toughest environment (tunnel area, sewage treatment plants, water reservoir, chemical industry)
  • Version for direct connection via cable glands
  • Through wiring 2 x 2.5mm² possible on all models

Technical specifications:

Operating voltage: 198-264 VAC (176-264 VDC)
Power Supply: 20W / 35W / 55W
Luminous flux: 2121 lm / 4245 lm / 7102 lm
System efficency: 106 lm/W / 121 lm/W /129 lm/W
Lamp duration: L70 B10 >50.000h
Protection category: IP 66
Protection class: II
Beam angle: 120°

Special features:

  • precise optics for oval beam 40 ° x 80 °
  • optimized thermal management for high ambient temperatures
  • high efficiency
  • on request also other light colors possible

Technical specifications:

Input voltage: 100-277 VAC (50/60 Hz)
System performance: 120 W / 150 W / 180 W / 210W / 240 W
Lighting current: 16.800 lm / 21.000 lm / 25.200 lm / 29.400 lm / 33.600 lm
Protection category: IP 65
Protection class: I
Light color: 5.000 K
Shock resistance: IK 08
Material: Aluminium
Operating range of temperature: -40°C bis +60°C
