Underfloor distributors

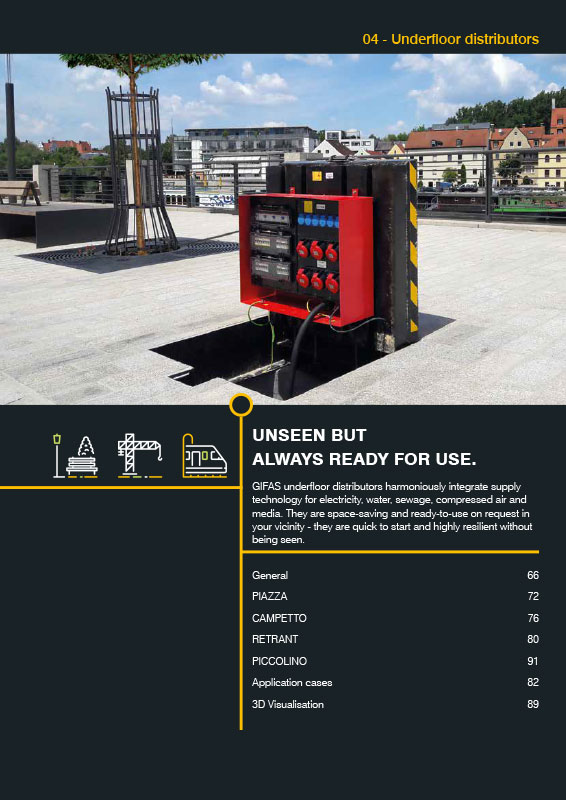

PDF-Download

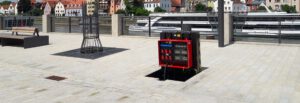

Underfloor distributors are the ideal solution when it comes to laying pipelines for electricity, water, waste water, compressed air or data connections invisibly below the floor but at the same time ensuring excellent accessibility. GIFAS underfloor distributors perform this task brilliantly.

They are made from a solid stainless steel construction with a maintenance-free, solid rubber distributor system that supports flexible loading. During operation, they are recessed into the floor and closed with a locking system, allowing them to be walked or driven over without any problems.

For further information please have a look at our PDF at the left side or contact us! We look forward to hearing from you!

Also take a look at the application video “Underfloor distributors”!

Special features:

  • Solid stainless steel construction (V2A)
  • Gas springs for force-free, automatic opening
  • Shaft cover can be custom-filled
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Classification as per EN 124:400 kN (40 t) / D400
Cover:1000 x 1000 x 70 mm
Weight:approx. 780 kg

Special features:

  • Solid stainless steel construction (V2A)
  • Gas springs for force-free, automatic opening
  • Shaft cover can be custom-filled
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Classification as per EN 124:400 kN (40 t) / D400
Cover:700 x 700 x 70 mm
Weight:approx. 450 kg

Special features:

  • Solid stainless steel construction (V2A)
  • Gas springs for force-free, automatic opening
  • Shaft cover can be custom-filled
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Classification as per EN 124:400 kN (40 t) / D400
Cover:580 x 550 x 70 mm
Weight:approx. 350 kg

Special features:

  • Shaft cover can be custom-filled
  • Solid stainless steel construction (V2A)
  • Gas springs for force-free, automatic opening
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Maximum load:125 kN (12.5 t) / B125
Classification as per EN 124:125 kN (12.5 t)
Cover:880 x 992 mm
Weight:approx. 250 kg

Special features:

  • Shaft cover made from non-slip steel floor plate
  • Solid stainless steel construction (V2A)
  • Load of special designs up to 50 kN
  • Gas springs for force-free, automatic opening
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Maximum load:to 30 kN (3 t)
Classification as per EN 124:15 kN (1.5 t) / A15
Cover:880 x 992 mm
Weight:approx. 250 kg

Special features:

  • Covers can be individually filled / paved, can be supplied in two sizes
  • Solid stainless steel construction (V2A)
  • Gas springs for force-free, automatic opening
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Maximum load:125 kN (12.5 t)
Classification as per EN 124:125 kN (12.5 t) / B125
Cover:628 x 435 mm / 778 x 535 mm
Weight:approx. 70 kg

Special features:

  • Covers can be individually filled / paved, can be supplied in two sizes
  • Solid stainless steel construction (V2A)
  • Load of special designs up to 30 kN
  • Gas springs for force-free, automatic opening
  • Distributor as per the client’s request

Technical specifications:

Area of use:internal / external area
Maximum load:to 30 kN (3 t)
Classification as per EN 124:15 kN (1.5 t) / A15
Cover:628 x 435 mm / 778 x 535 mm
Weight:approx. 60 kg

Special features:

  • Cover made of Stainless steel non-slip steel floor plate
  • Ground-flush installation
  • Locking is performed using a countersunk, cover-flush dual bit lock
  • reclosing after commissioning
  • Excellent safety thanks to the GIFAS double pressure method; the cover is held securely closed even without a lock

Technical specifications:

Area of use:Underfloor distributors for restricted spaces
Maximum load:to 30 kN (3 t)
Classification as per EN 124:15 kN (1.5 t) / A15
Cover:340 x 240 mm
Weight:approx. 25 kg

Special features:

  • Cover made of Stainless steel non-slip steel floor plate
  • Ground-flush installation
  • Locking is performed using a countersunk, cover-flush dual bit lock
  • Excellent operating safety thanks to reclosing after commissioning

Technical specifications:

Area of use:Underfloor distributors for restricted spaces
Classification as per EN 124:250 kN (25 t) / C250
Cover:200 x 200 mm
Weight:approx. 7.5 kg

Special features:

  • Cover made of Stainless steel non-slip steel floor plate
  • Ground-flush installation
  • Locking is performed using a countersunk, cover-flush dual bit lock
  • Excellent operating safety thanks to reclosing after commissioning

Technical specifications:

Area of use:Underfloor distributors for restricted spaces
Classification as per EN 124:2 kN (200 kg)
Cover:120 x 120 mm
Weight:approx. 4.2 kg
