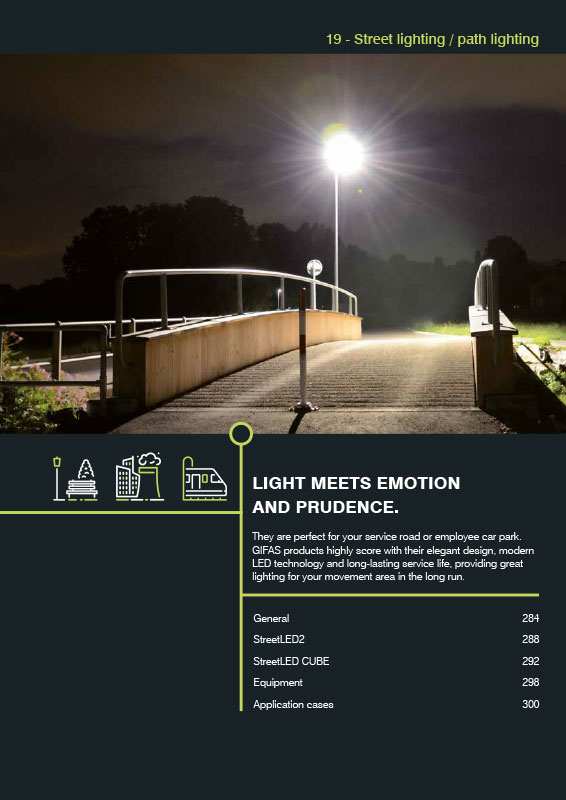

Catalog-Download

Efficient LEDs for optimal street and parking lot lighting. To perfectly illuminate public areas, powerful street and parking lot lighting is essential. At GIFAS ELECTRIC you will find various powerful luminaires with low energy consumption for this application. Discover our assortment!

For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!

Special features:

  • low power consumption
  • very low CO² emissions
  • long life of the lights
  • Efficient thermal management with ideal heat dissipation
  • powder-coated die-cast aluminium housing
  • excellent price-performance ratio (low payback period)

Product information:

StreetLED 15 - the right lamp for lighting needs of approx. 5 lx, according to the street category P4. Classic applications of the StreetLED 15 are smaller streets, pedestrian and cycle paths, private forecourts, lanes and parking lots.

Technical specifications:

Light source: 15 LEDs
Light colour: 4,000 K
Lighting current: 1,900 lm
Light efficiency: 112 lm/W
Operating life: mind. 100,000 h
Dimmable: 50 %
Street category: P4 (5 lx)
System performance: 17W

Special features:

  • low power consumption
  • very low CO2 emissions
  • long life of the lights
  • Efficient thermal management with ideal heat dissipation
  • powder-coated die-cast aluminium housing
  • excellent price-performance ratio (low payback period)

Product information:

StreetLED 30 - The right lamp for lighting needs of approx. 0.5 Øcd / m², according to the street category P3 and M5. Classic applications of the StreetLED 30 are larger pedestrian and cycle paths, private areas or industrial facilities



Technical specifications:

Light source: 30 LEDs
Light colour: 4,000 K
Lighting current: 3,800 lm
Light efficiency: 141 lm/W
Operating life: min. 100,000 h
Dimmable: 50 %
Street category: P3 or M5 (0,5 cd/m²)
System performance: 27W

Special features:

  • low power consumption
  • very low CO2 emissions
  • long life of the lights
  • Efficient thermal management with ideal heat dissipation
  • powder-coated die-cast aluminium housing
  • excellent price-performance ratio (low payback period)

Product information:

StreetLED 60 - The right lamp for lighting needs of approx. 0.75 Ø cd / sqm, according to the street category M4. Classic applications of the StreetLED 60 are municipal roads, intersections, parking lots and sophisticated open and industrial sites.

Technical specifications:

Light source: 60 LEDs
Light colour: 4,000 K
Lighting current: 9,600 lm
Light efficiency: 150 lm/W
Operating life: min. 100,000 h
Dimmable: 50 %
Street category: M4 (0.75 cd/m²)
System performance: 64W

Special features:

  • low power consumption
  • very low CO2 emissions
  • long life of the lights
  • Efficient thermal management with ideal heat dissipation
  • powder-coated die-cast aluminium housing
  • excellent price-performance ratio (low payback period)

Product information:

StreetLED 90 - The right lamp for lighting needs of approx. 1.0 Øcd / m2, according to the street category M3. Classic applications of the StreetLED 90 are urban streets and squares, multiple intersections, large areas and parking lots, large open and industrial sites.

Technical specifications:

Light source: 90 LEDs
Light colour: 4,000 K
Lighting current: 11,500 lm
Light efficiency: 155 lm/W
Operating life: min. 100,000 h
Dimmable: 50 %
Street category: M3 (1.0 cd/m²)
System performance: 74W

Special features:

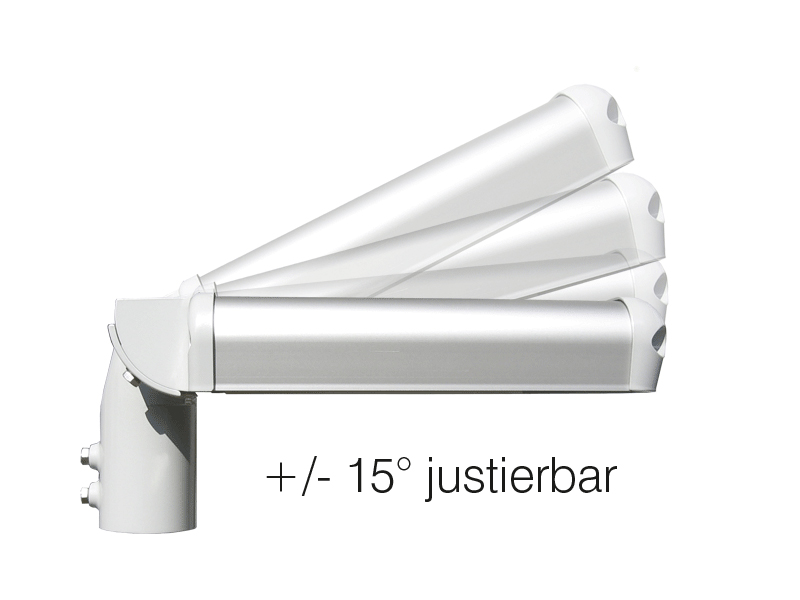

The right lamp for lighting needs of approx. 5 lx, corresponding to lighting class P4 and M6. Classic applications of the StreetLED CUBE 12 are smaller streets, pedestrian and cycle paths, private forecourts, lanes and parking lots.

Technical specifications:

Light source: 1 modules-12 LEDs
Light colour: 4.000 K
Lighting current: 2.653 lm
Light efficiency: 130 lm/W
Operating life: min. 100,000 h
Dimmable: 50 %
Street category: P4

Special features:

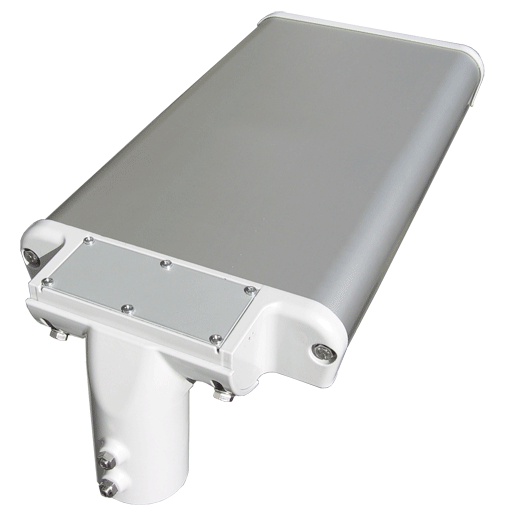

The right luminaire for lighting needs of approx. 7.5 lx or 0.5 cd / m², corresponding to lighting class P3 and M5. Classic applications of the StreetLED CUBE 24 are roads, larger pedestrian and cycle paths, private areas or industrial facilities.

Technical specifications:

Light source: 2 modules-24 LEDs
Light colour: 4.000 K
Lighting current: 5.271 lm
Light efficiency: 130 lm/W
Operating life: min. 100.000 h
Dimmable: 50 %
Street category: P3 / M5

Special features:

The right lamp for lighting needs of approx. 0.75 cd / m2, corresponding to the illumination class M4. Classic applications of the StreetLED CUBE 48 are municipal roads, intersections, parking lots and sophisticated open and industrial sites.

Technical specifications:

Lichtquelle: 4 Module-48 LEDs
Lichtfarbe: 4.000 K
Lichtstrom: 10.325 lm
LED Effizienz: 130 lm/W
Lebensdauer: min. 100.000 h
Schaltbar: 50 %
Straßenkategorie: M4

Special features:

The right lamp for lighting needs of approx. 1.0 cd / m², corresponding to the lighting class M3. Classic applications of the StreetLED CUBE 72 are urban streets and squares, multiple intersections, large areas and parking lots, large open and industrial sites.

Technical specifications:

Light source: 6 modules-72 LEDs
Light colour: 4.000 K
Lighting current: 15.183 lm
Light efficiency: 130 lm/W
Operating life: min. 100.000 h
Dimmable: 50 %
Street category: M3

Special features:

The right lamp for lighting needs of approx. 0.75 cd / m², corresponding to the lighting class M4. Classic applications of the StreetLED CUBE S48 are local roads, intersections, parking lots and sophisticated open and industrial sites.

Technical specifications:

Light source: 15 LEDs
Light colour: 4,000 K
Lighting current: 15,000 lm
Light efficiency: 133 lm/W
Operating life: min. 100,000 h
Dimmable: 50 %
Street category: P4 (5 lx)

Special features:

The right lamp for lighting needs of approx. 1.0 cd / sqm, according to the lighting class M33. Classic applications of the StreetLED CUBE H48 are urban streets and squares, multiple intersections, large areas and parking lots, large open and industrial sites.

Technical specifications:

Light source: 6 modules-72 LEDs
Light colour: 4,000 K
Lighting current: 15,000 lm
Light efficiency: 130 lm/W
Operating life: min. 100,000 h
Dimmable: 50 %
Street category: M3

Special features:

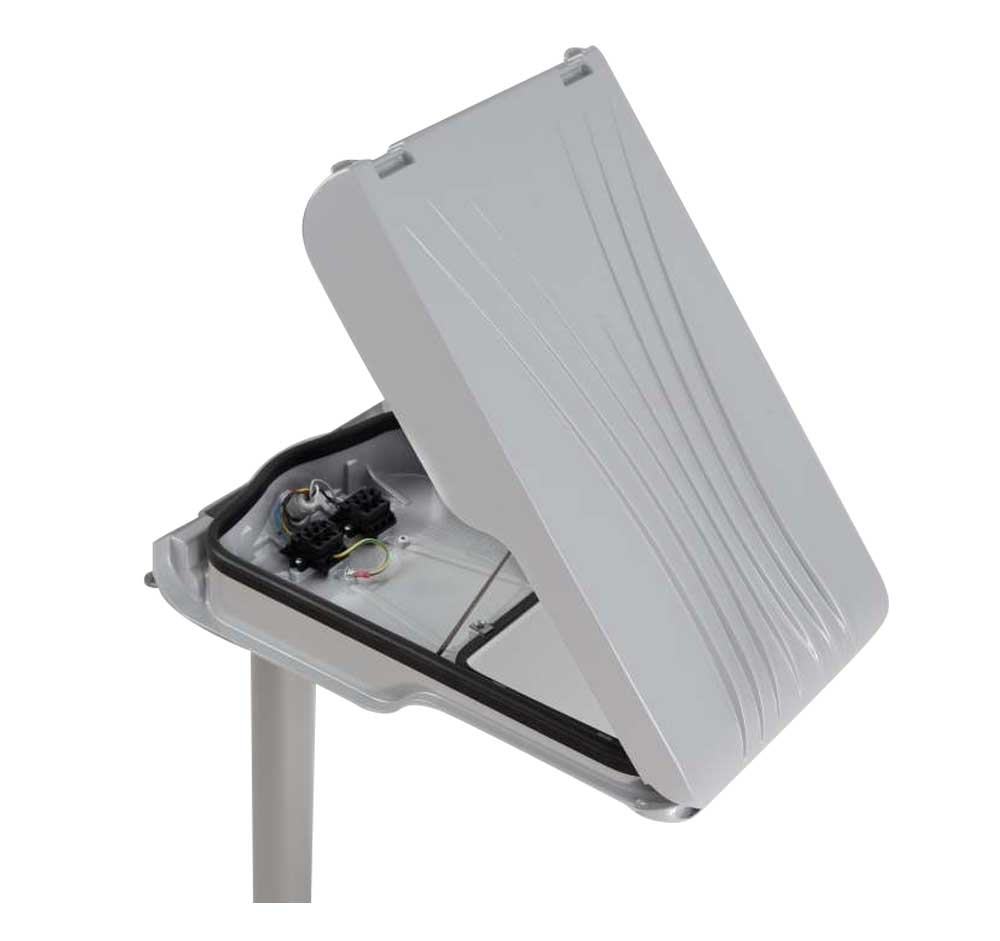

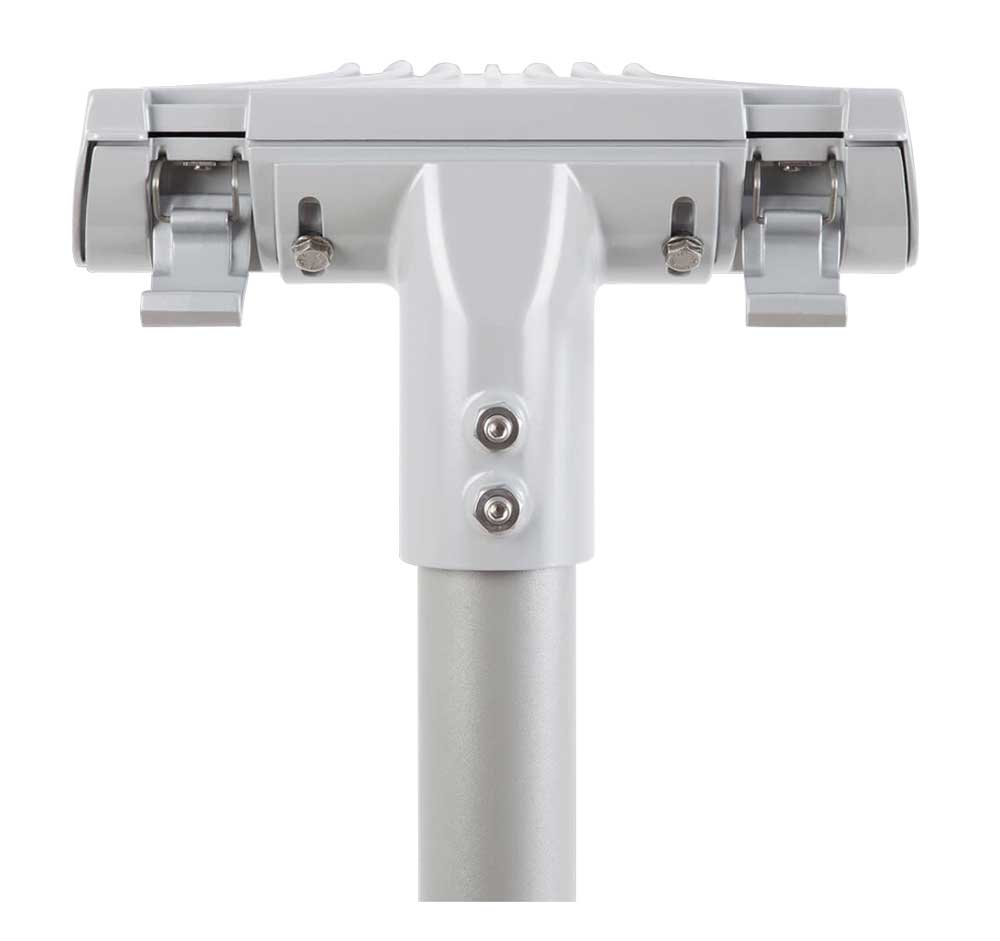

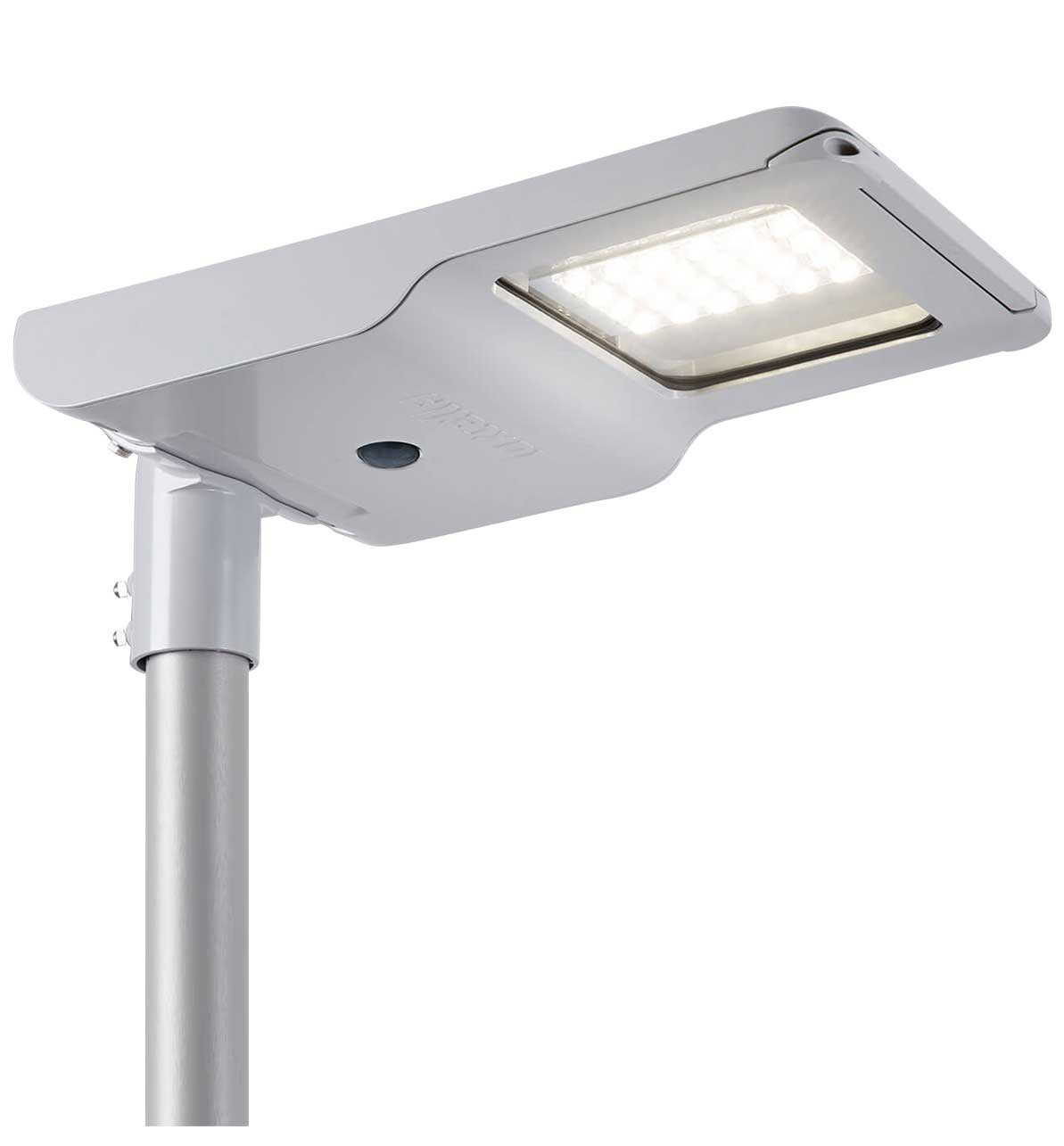

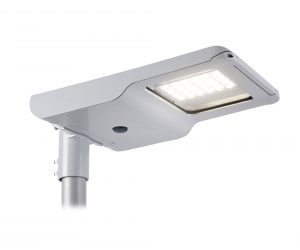

The retrofittable StreetLED SMART is the answer to the diverse possibilities of future-proof and smart street lighting that can do a lot more than just illuminate a street. With the integrated Zhaga socket and a sensor-ready driver, various sensors and wireless solutions can be used as required. Retrofitting of lighting control functionalities such as motion or daylight sensors can be carried out easily and without tools on site.

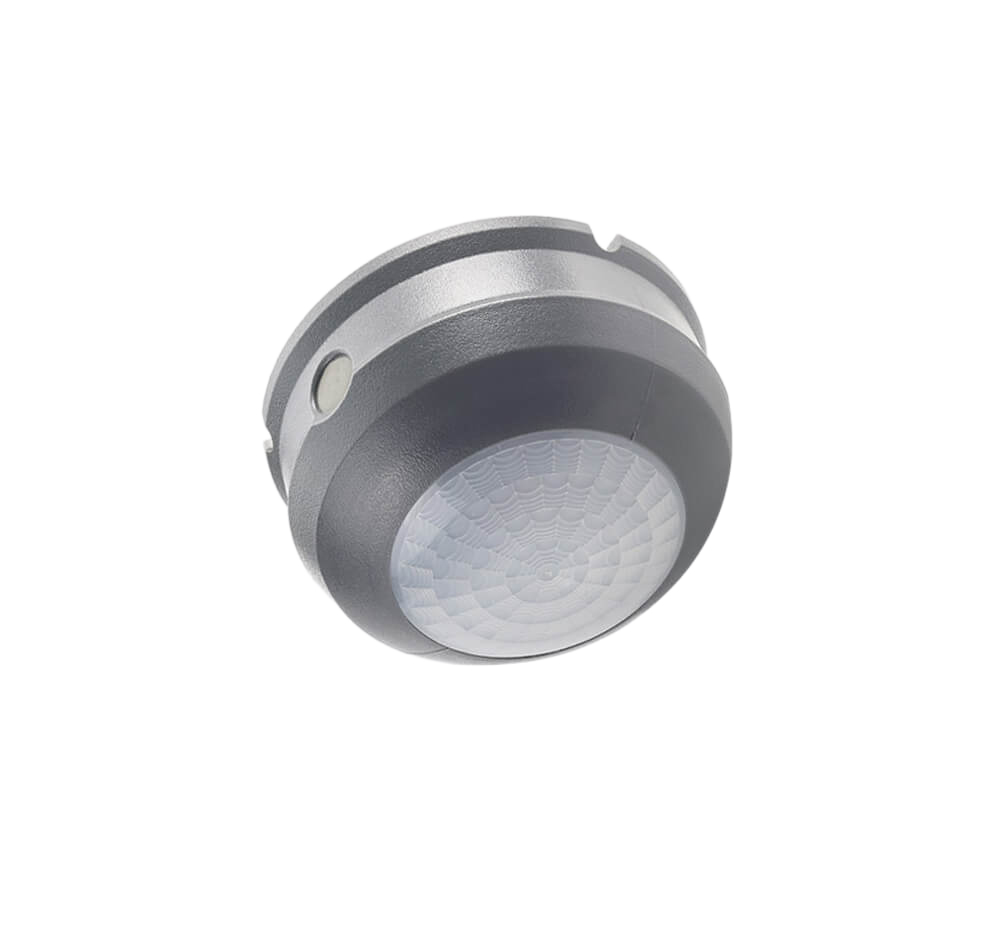

  • Sensor control and connection via Zhaga socket
  • Free parameterization of the system
  • Remote maintenance and condition monitoring
  • Energy monitoring in real time
  • Definition of lighting profiles and dimming

Technical specifications:

Light source: 12 / 24 / 36 / 42 LEDs
Light color: 4.000 K
Luminous flux: 2.390 lm / 3.950 lm / 7.990 lm / 11.420 lm / 15.730 lm
System efficiency: 149 lm/W / 141 lm/W / 148lm/W / 150 lm/W / 157 lm/W
Operating life: approx. 100.000 h
Dimmable: 0 - 100% (Dali)
Street category: P4/M6 / P3/M5 / M4 / M3
