Anywhere that flammable gases, vapurs or dust is able to mix up with air or oxygen is a risk of explosion. This potential does not just exist only in the chemical industry and mining, also Bottling plants for alcoholic liquids are endangered. Any undeirsable explosion imperil the health and lifes of anyone located around and is very likely to lead to serious material damage can be the consequences.

Where safety is an absolute must, GIFAS Ex products are used wherever there is a risk of explosion. Tested quality guaranteed.

For further information please have a look at thePDF on the left side or contact us! We are looking forward to hear from you!

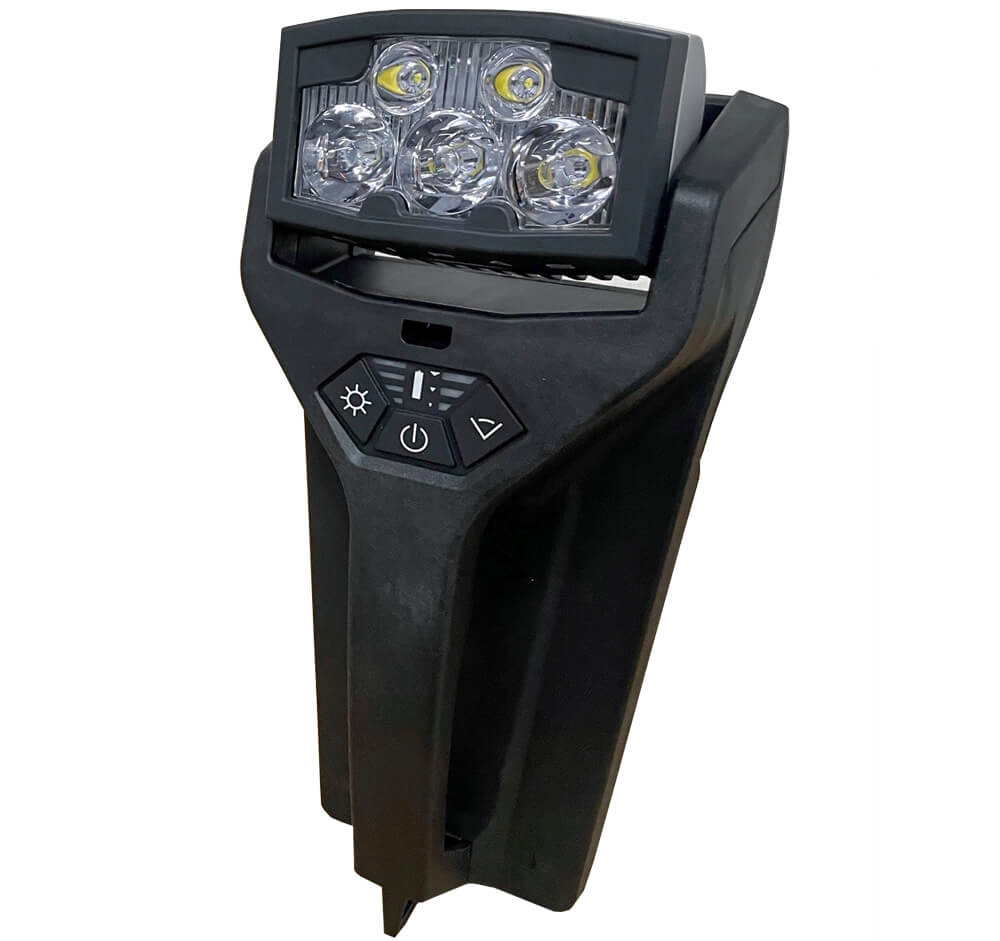

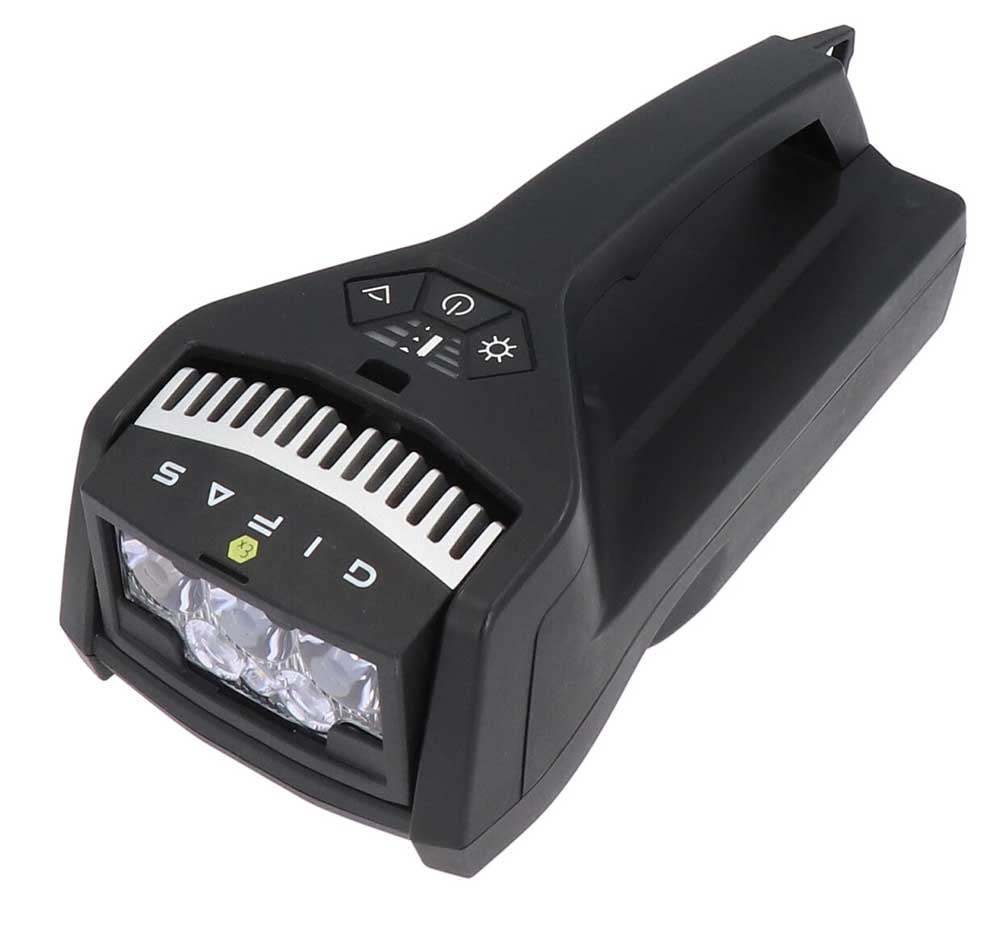

Special features:

  • Sturdy, shatter-proof polyamide housing
  • Up to 26 hours of light in three selectable operating modes
  • Extremely bright light

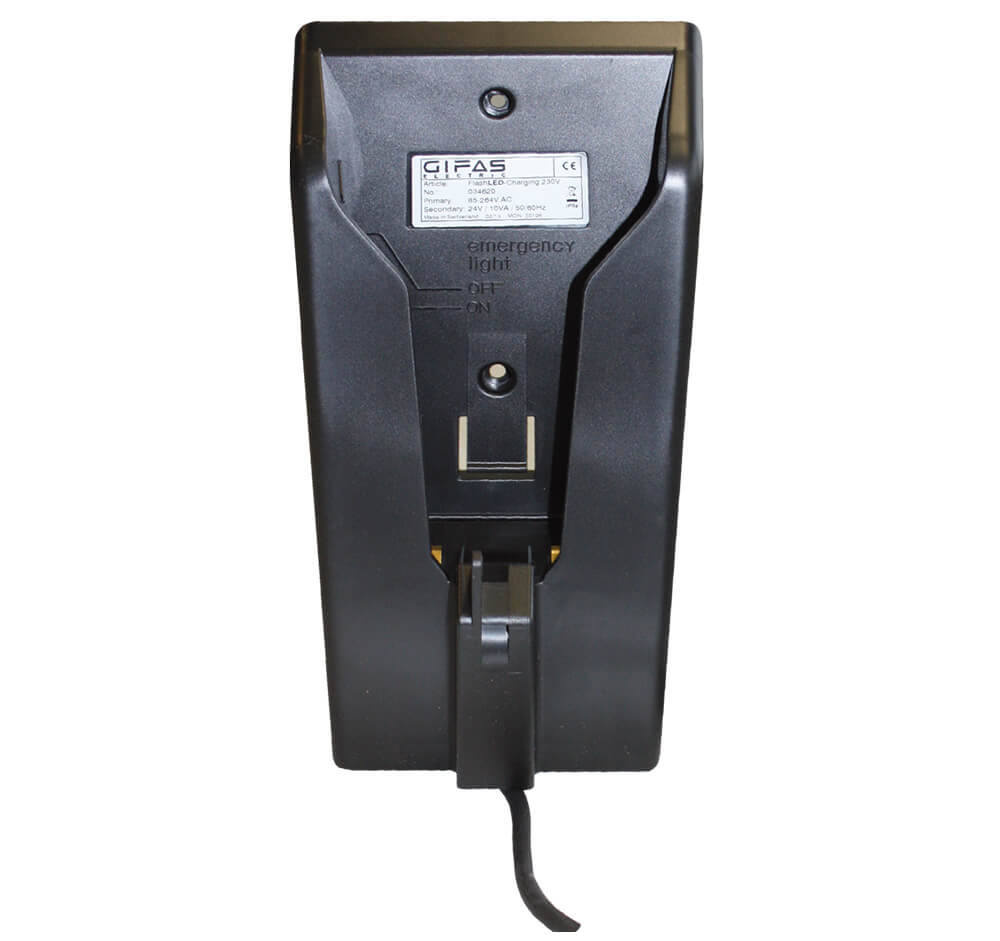

  • Incl. charger with corrosion-resistant contacts
  • Charging station can be used as a wall-mounted model
  • Overcurrent, temperature and deep discharge protection
  • Vertical-swivel lamp head, dimmable, flash mode
  • Memory function = last setting is saved
  • The light can be locked in the charging station
  • Emergency light mode up to 5.5 hours (including Morse function)

Technical specifications:

Labeling: Ex II 2G Ex ib IIC T4 Gb; Ex II 2D Ex ib IIIC T135 °C Db
ATEX Certification No.: SEV 20 ATEX 0436X
Operating voltage: 230 V AC / 12 / 24 V DC
Power supply: LiPo 7.4V - 3,500 mAh
Charging time: 6.5 h
Light duration: 5.5 to 26 h – depending on the operating mode
Illuminant: 6 × 1.6 W Power LEDs (cool white 5,000K)
Light protection category: IP 65
Ambient temperature: - 20° C < Ta < + 50° C
Temperature class: T4
EX risk areas: Zones 1 / 2 / 21 / 22
Gas group: IIC
Dust group: IIIC
Dimensions (L x H x W): 251 x 93.4 x 123 mm
Weight: 1.1 kg

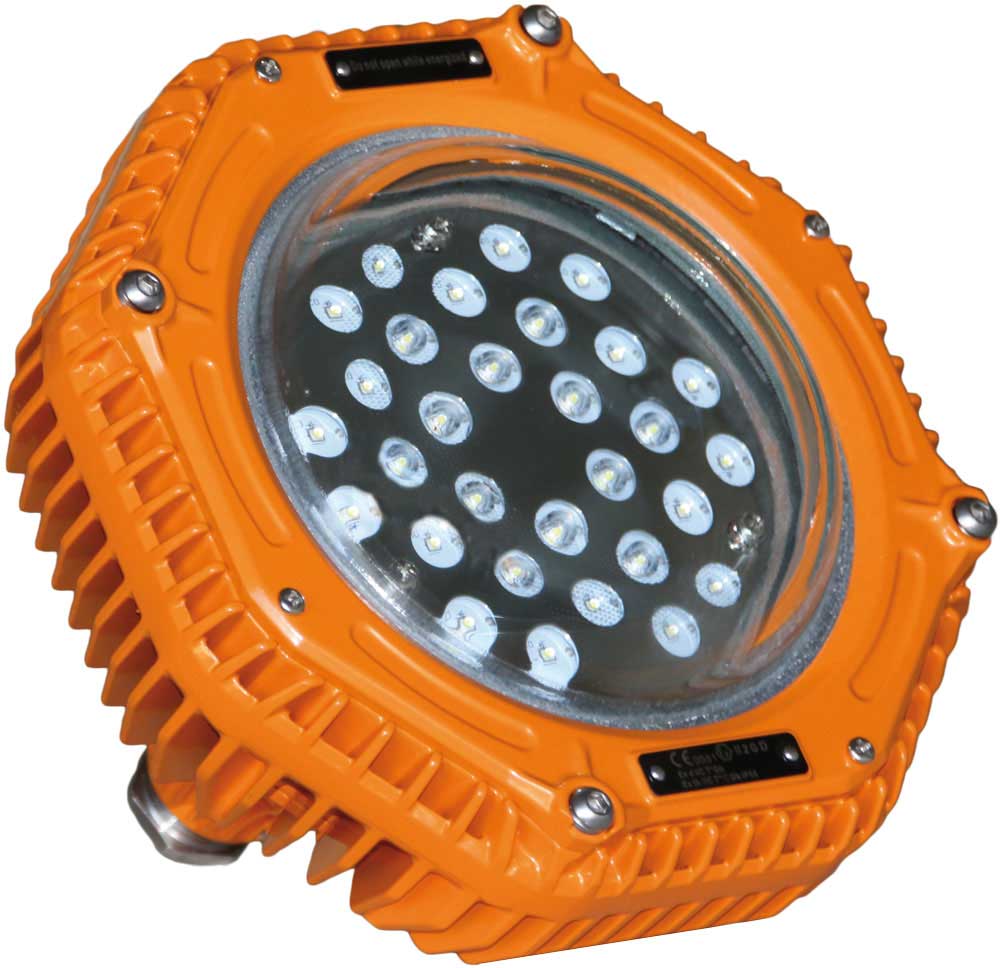

Special features:

  • Especially suitable for use in small and confined spaces
  • Reduced dazzle thanks to anti-glare surface
  • Casing made from highly stable aluminium alloy for applications in corrosive environments
  • Shock and vibration-resistant, hardened glass reduces the risk of premature failure
  • Explosion-protected, fire resistant, water and salt resistant, dust-proof

Technical specifications:

Labeling: Ex II 2 G – Ex d IIC T5 Gb / Ex II 2 D – Ex t IIIC T95 °C Db
Protection category: IP 66
Ex-zones: 1 / 2 / 21 / 22
System output: 60 W
Input voltage: 100–277 V AC
LED output: 110 lm/W
Light source: LED
Light colour on average: 6,000 K
Operating temperature range: -40 °C to +55 °C
Lifetime: > 50,000 h
Dimensions: H x D = 206 x 220 mm
Weight: 3.5 kg

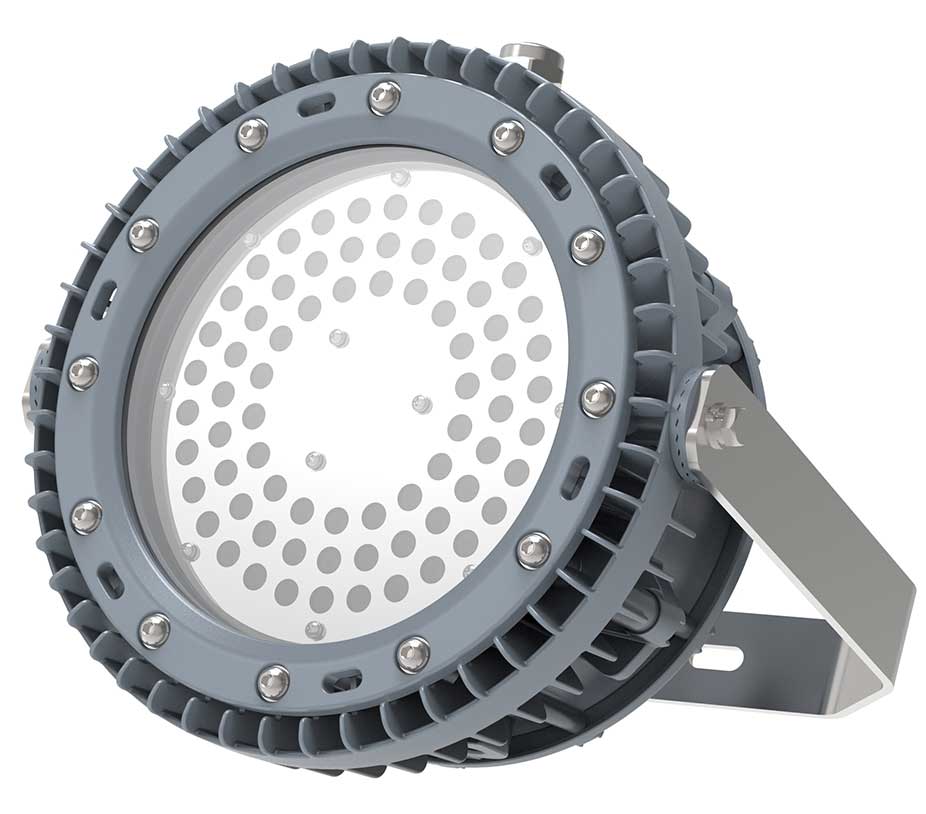

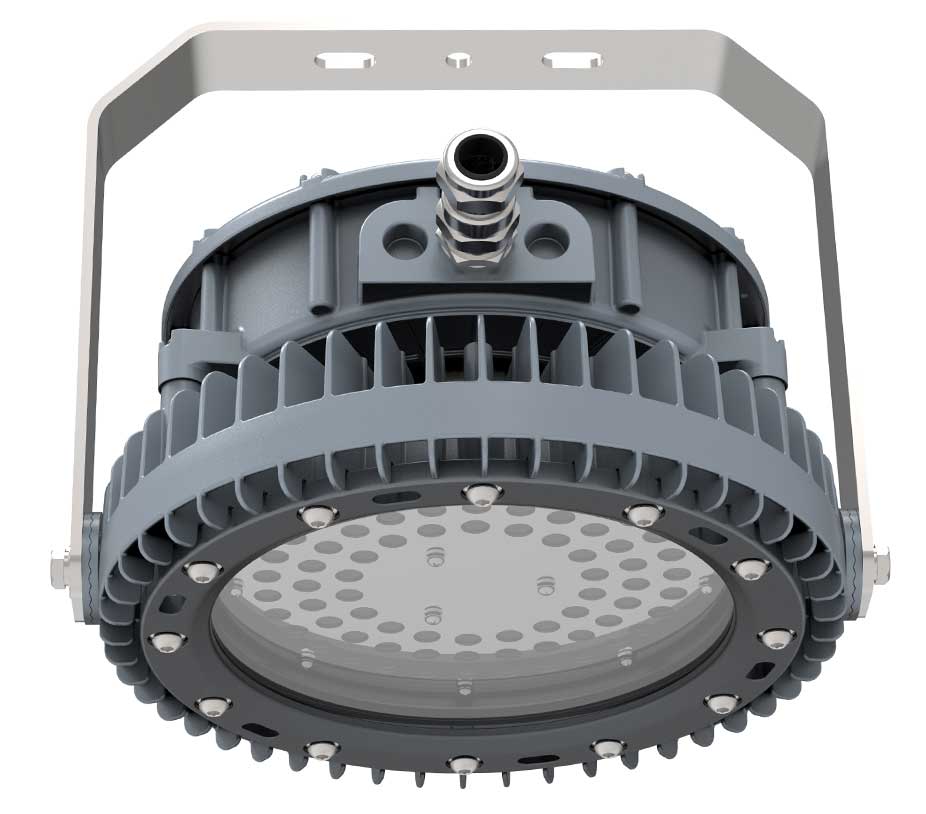

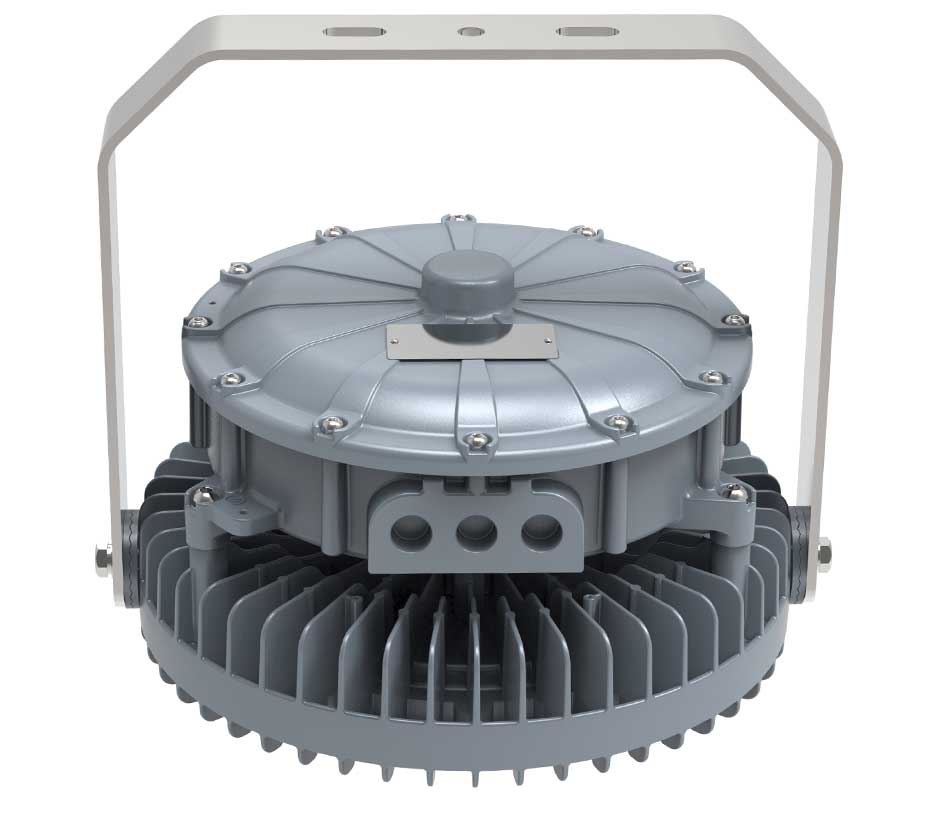

Special features:

  • Suitable for all areas that require an efficient and extremely robust ex-lamp
  • Excellent efficiency and high light output
  • Anti-glare, reduces glare in applications where the user may have direct visual contact with the light source
  • Shock and vibration resistant tempered glass
  • High strength aluminum alloy housing
  • Optional and optimum luminous intensity distribution for different applications

Technical specifications:

Labeling: Ex II 2 G – Ex db IIC T4/T5 Gb / Ex II 2 D – Ex tb IIIC T105/T95 °C Db
Protection category: IP 66
Ex-Zone: 1 / 2 / 21 / 22
Power: 120 W / 150 W
Operating voltage: 100–277 V AC
Frequency: 50/60 Hz
Light color on average : 5700 K
Temperature range: - 40° C to + 55° C
Bulb lifetime: > 50,000 h
Dimensions: H = 197 mm – Ø 330 mm
Weight: 11 kg
System efficency: 116 lm / W / 136 lm / W

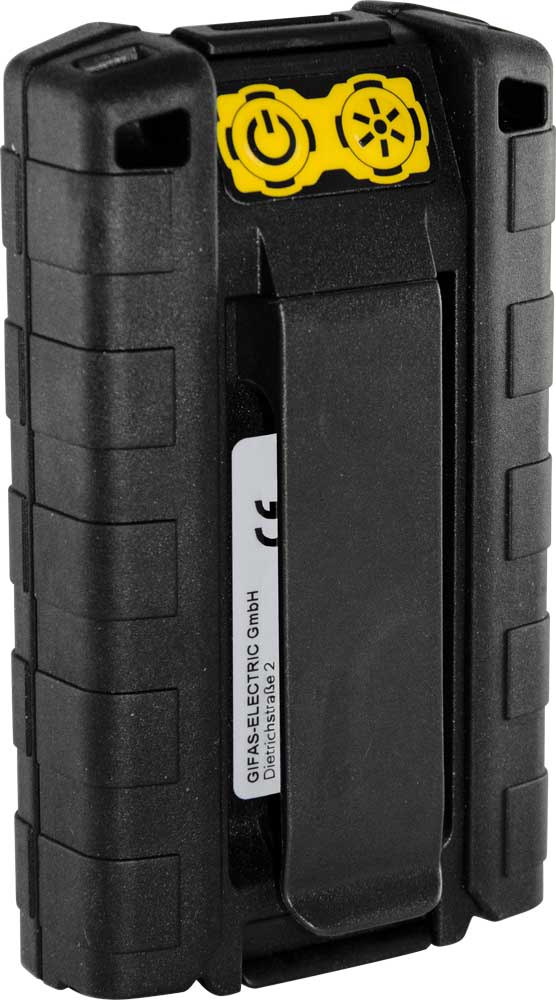

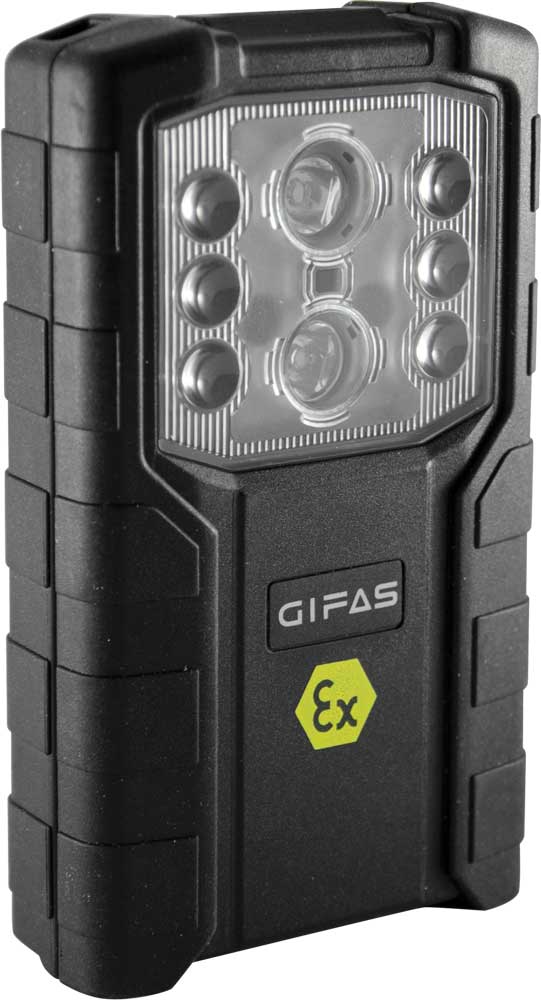

Special features:

  • At least 3 h of light in three selectable operating modes
  • Memory function (last settingis retained)
  • Corrosion-resistant charging pins (gold-plated spring steel)
  • Overcurrent, temperature and deep discharge protection
  • compact design

Technical specifications:

Labeling: II 2G Ex ib IIC T4 Gb; II 2D Ex ib IIIC T135° C Db
ATEX certification nr.: SEV 22 ATEX 0644 X
Electric power supply: LiPo 7.4 V - 820 mAh
Charging time: 5 h
Light duration: 3 to 7 h (depending on operating modes)
Illuminant: 2 Power LEDs (cool white 5,000K)
Protection category: IP 54
Permitted ambient temperature: - 20° C < Ta < +45° C
Ex-Zones: 1 / 2 / 21 / 22
Dimensions (WxLxH): 116 x 68 x 34 mm (excl. charging station); 148 x 87 x 44mm (incl. charging station)
Weight: 182 g

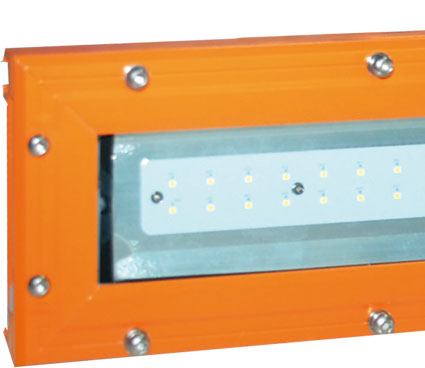

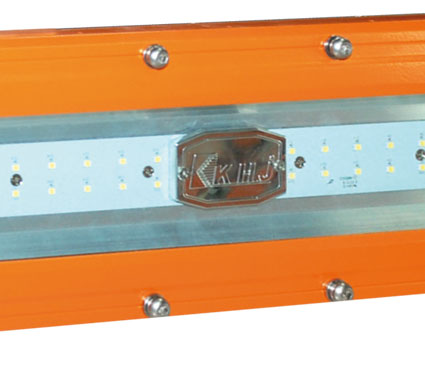

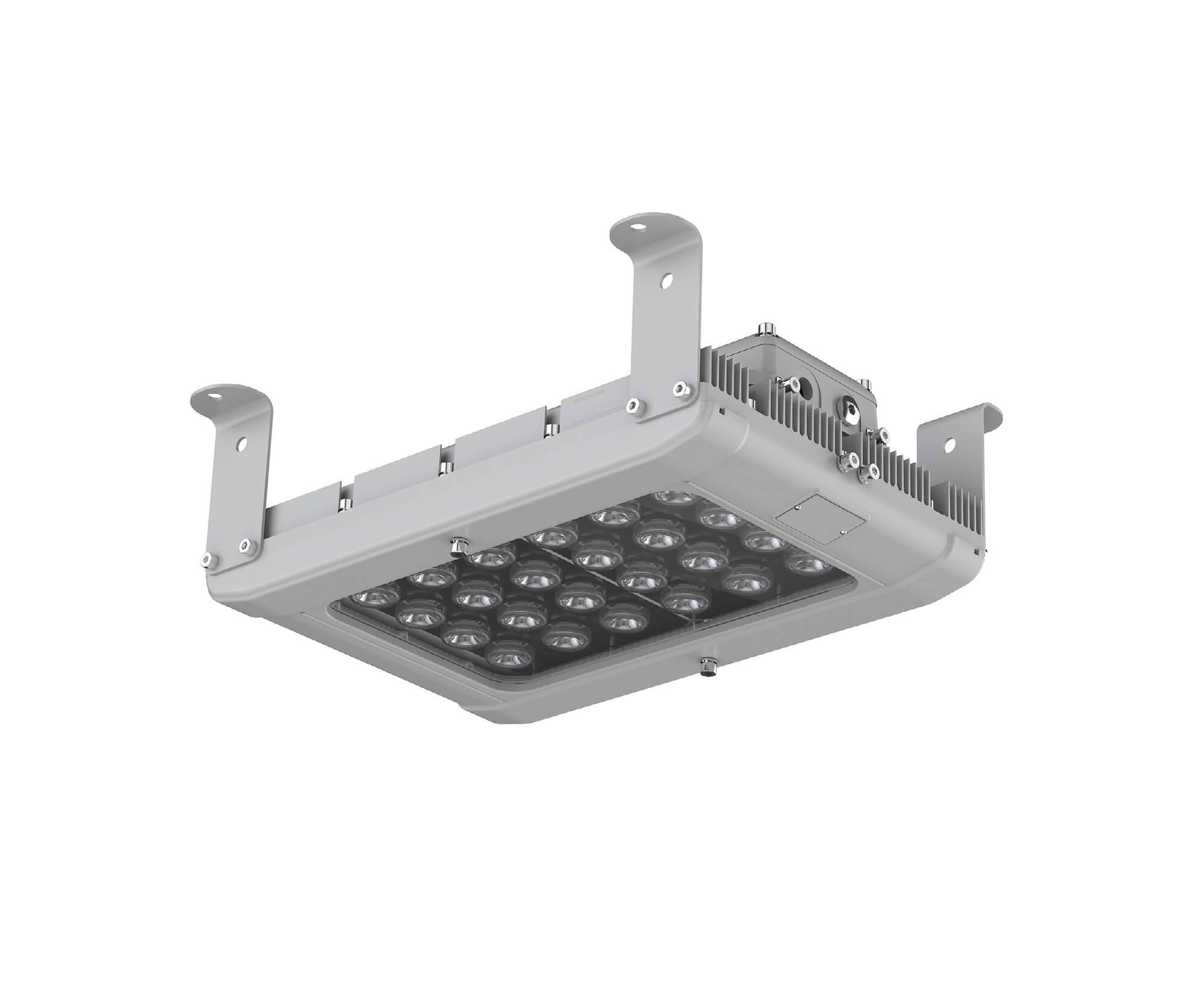

Special features:

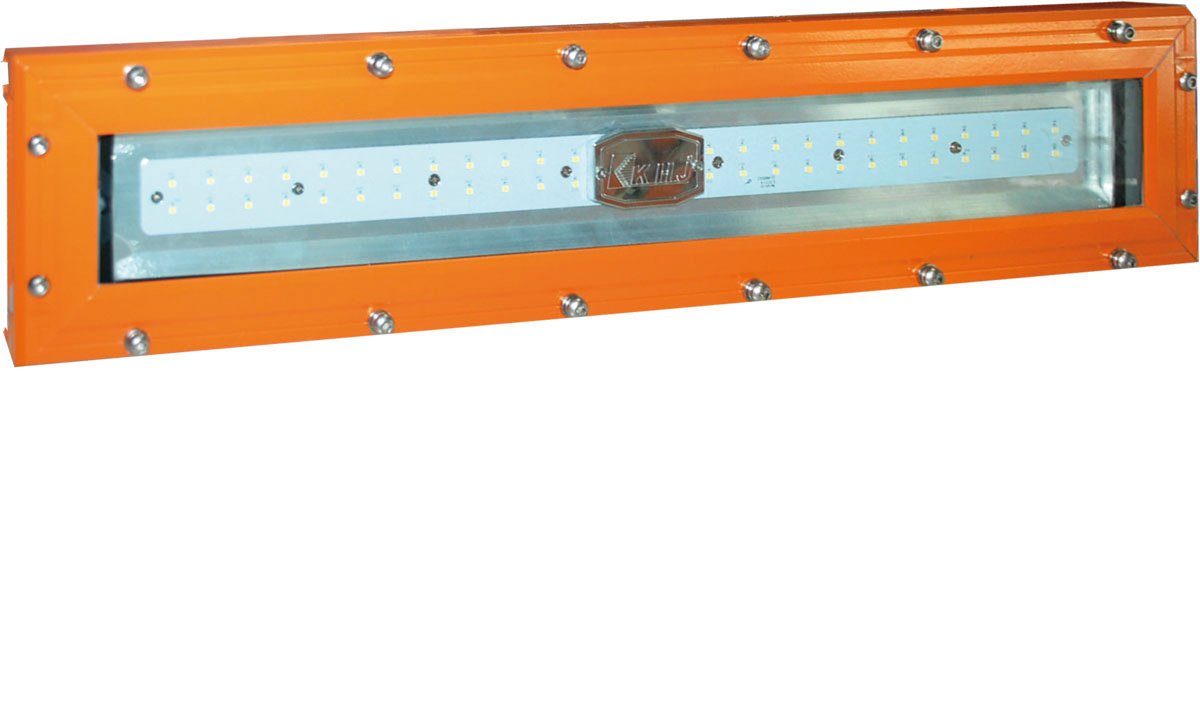

  • Suitable for all areas that require efficient and extremely robust Ex-safe lighting
    Robust aluminiuzm casing that can withstand forces up to 10 J
    high protection category: IP 66
    Withstands corrosive applications and salt water

Technical specifications:

Labeling: Ex II 2 G – Ex d eb IIB T6 Gb / Ex II 2 D – Ex tb IIIC T80°C Db
Protection category: IP 66
Ex-zones: 1 / 2 / 21 / 22
Output: 36/56 W
Voltage: 100–277 V AC
Voltage frequency: 50/60 Hz
Light output: 36 W: 4910 lm / 56 W: 7640 lm
Illuminant: LED‘s
Light color on average : 5700 K
Temperature range: - 40° C to + 55° C
Lifetime: > 50,000 h
Dimensions: 36 W: W x H x L = 136 x 85 x 600 mm / 56 W: W x H x L = 136 x 85 x 900 mm
Weight: 36 W: 6.4 kg / 56 W: 8.7 kg

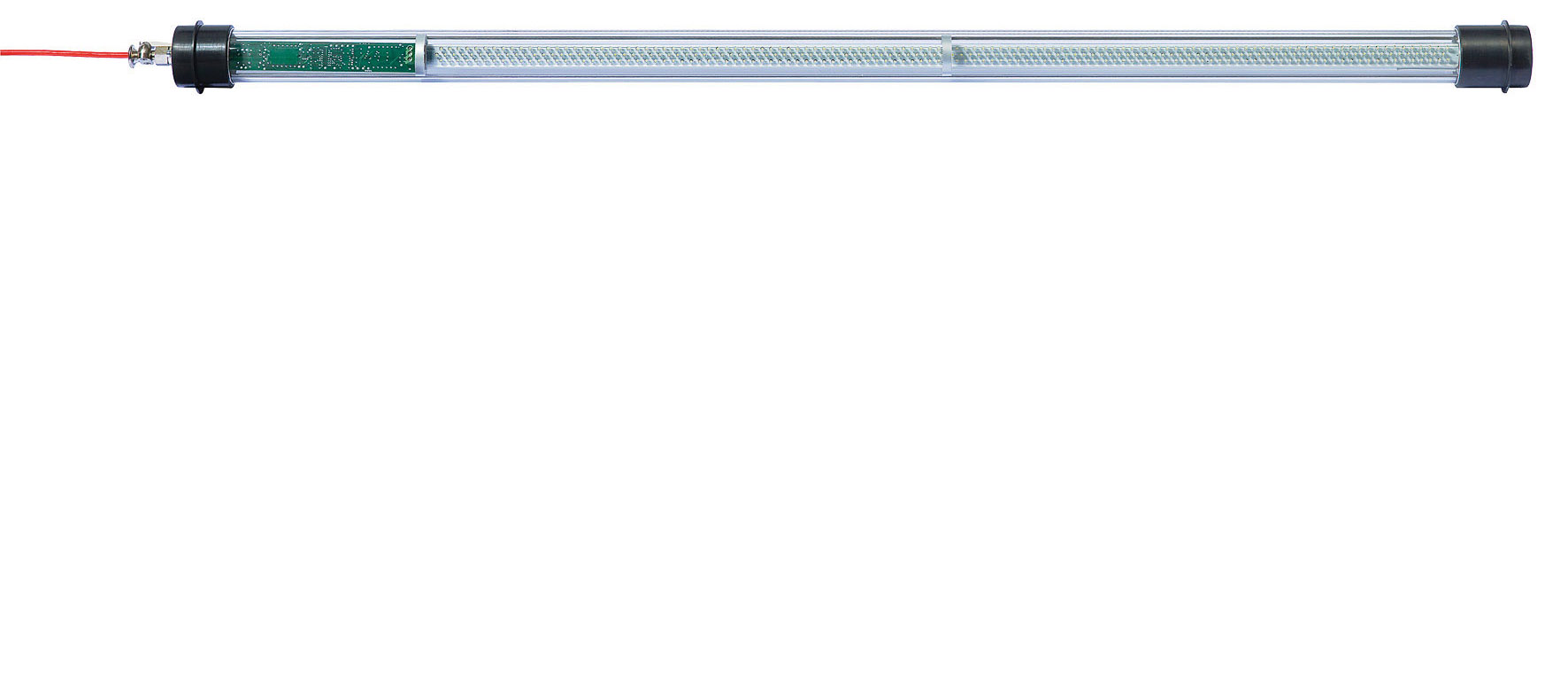

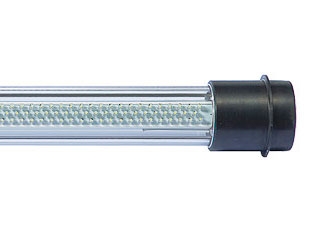

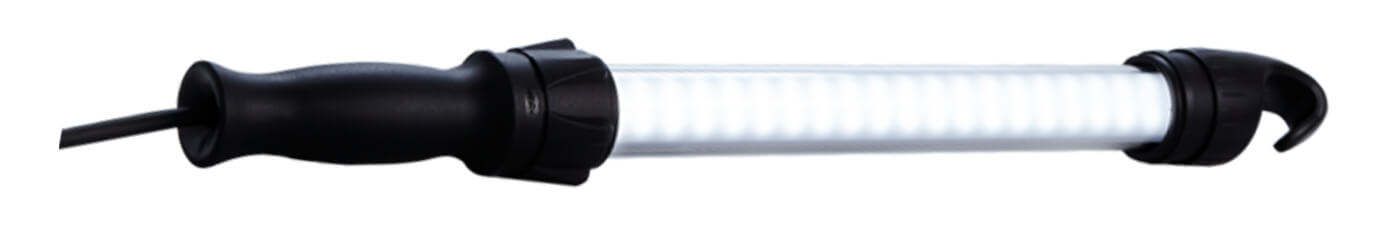

Special features:

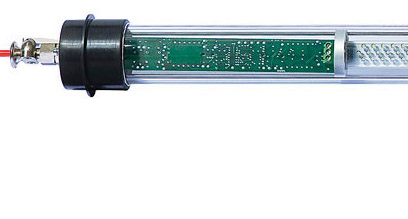

  • High-efficiant LED technology
  • Extremely long service life
  • Various operating voltages
  • Robust protective tube made from polycarbonate

Technical specifications:

Labeling: Ex II 2 G – Ex d IIC T5 Gb / Ex II 2 D – Ex tb IIIC T95°C Db
EC type approval certificate: BVS 07 ATX E 164 X
International approval: IECEx BVS 08.0014
Protection class: IP 68 (2.5 m to 24 h)
Permissible ambient temperature: - 20° C to + 60° C
Standard connection: Cable 5 m 3x1 mm² without plug
Ex-Zone: 1 / 2 / 21 / 22

Special features:

  • High-efficiant white LED technology
  • Extremely long service life
  • Various operating voltages
  • Robust protective tube made from polycarbonate

Technical specifications:

Labelling: II 2 G Ex d IIC T4 Gb / II 2 D Ex tb IIIC T100 °C Db
Operating voltage: 24-48VAC/VDC / 110-240VAC/VDC (50-60 Hz/DC)
Power: 13W
Protection class: IP 68 (2.5 m over 24 h)
Luminous flux: 1396lm
Light colour: 5000K
Ex-Zone: 1 / 2 / 21 / 22
Housing: Aluminium
Standard connection: H07RN-F 2x1.5 mm2
Protection category: IP66 / IP67
Operating range of temperature 24-48VAC / 230VAC: -40°C to +60 °C / -30°C to +60 °C
Weight: 1.5kg
Dimensions (LxD): 595 x 52 mm

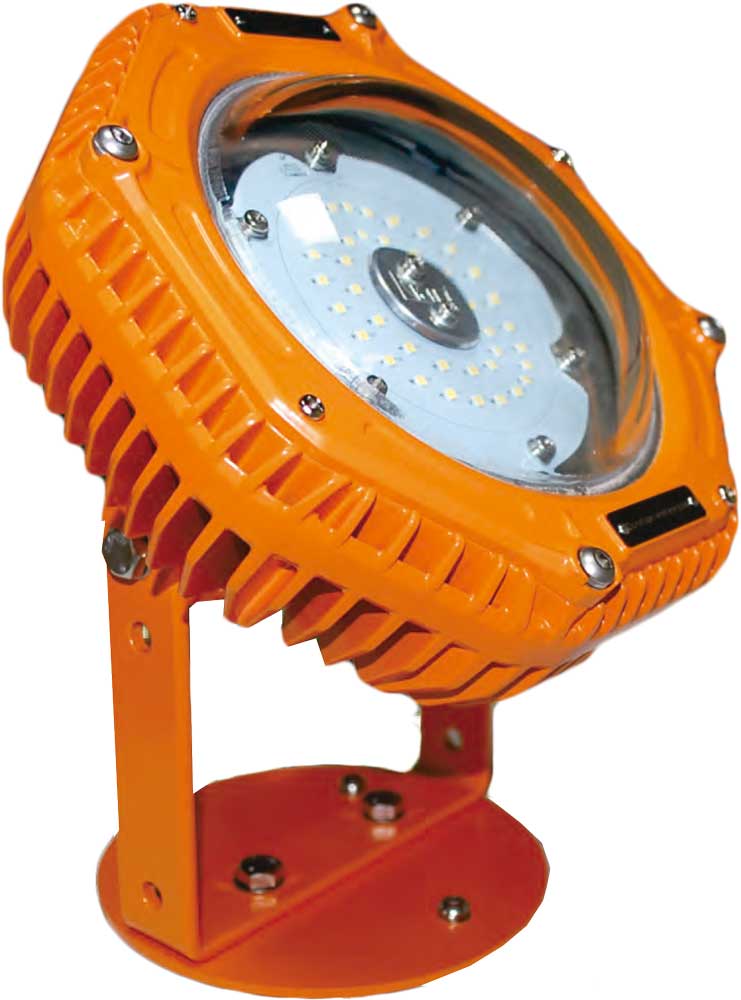

Special features:

  • Flexible mounting onto metal surfaces thank to integrated magnetic field in the lamp base
  • Bright light
  • Shock and vibration-resistant thanks to hardened glass
  • Robust aluminium casing with anti-corrosion paint
  • Satisfies requirements for emergency lighting (discharge time >10h)

Technical specifications:

Labeling: Ex d IIC T6 Gb / Ex tb IIIC T80°C Db
Protection category: IP 66
Ex zones: 1 / 2 / 21 / 22
Output: 10 W
Voltage: 100–277 V AC
Voltage frequency: 50/60 Hz
Light output: 1265 lm
Illuminant: LED
Light colour: 5400 K–7000 K
Power supply: Li-Ion Akku
Temperature range: - 20° C to + 40° C
Lifetime: > 50,000 h
Dimensions: 210 x 182 x 282 mm
Weight: 5.3 kg

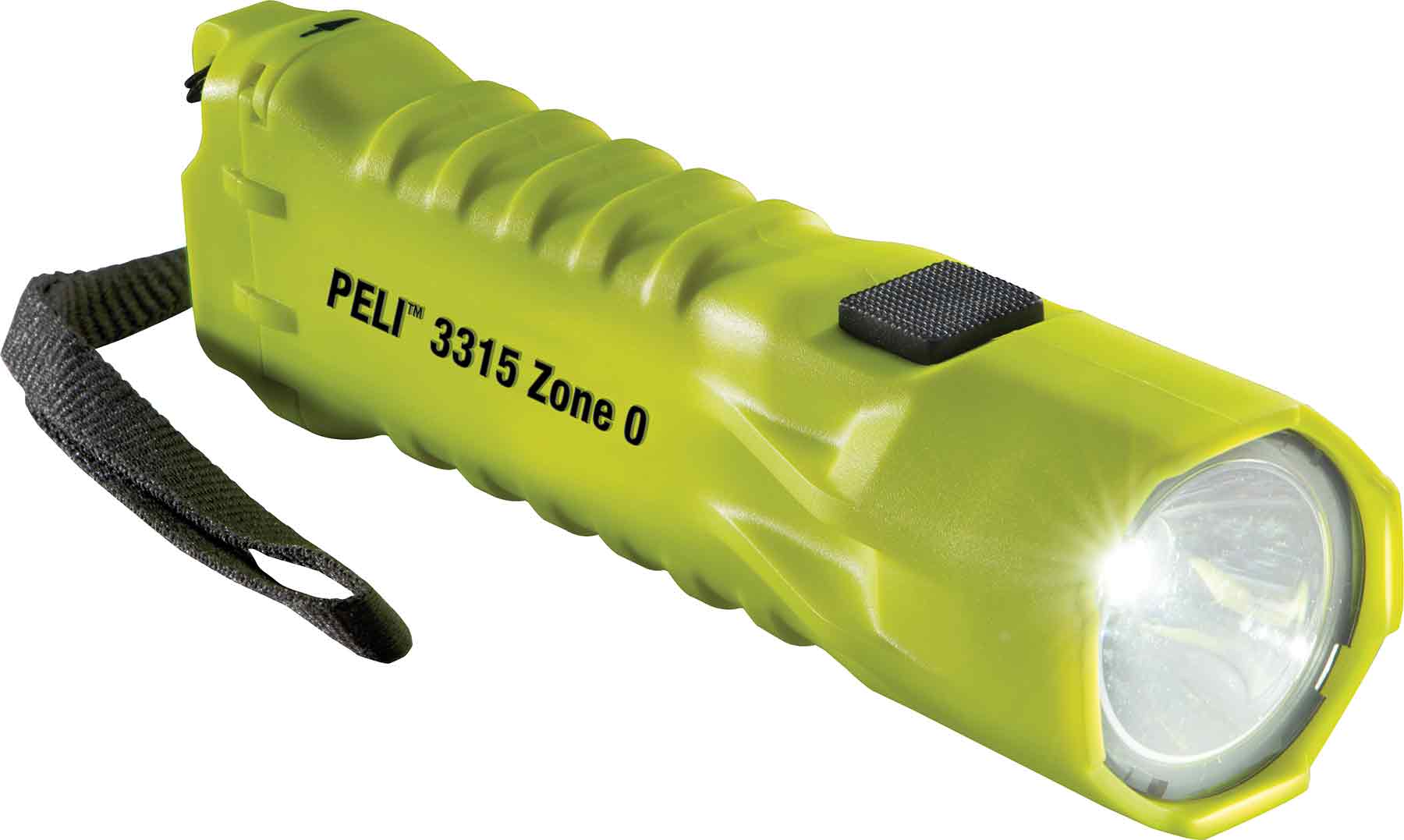

Special features:

  • Patented optical system centers 89% of the lumens in the center beam
  • soft wide-angle beam, ideal for illuminating wide areas
  • Can be attached by means of helmet holder to work and safety helmet

Technical specifications:

Labelling: Ex II 1G Ex ia op is IIC T4 Ga / Ex II 1D Ex ia op is IIIC T75°C Da
Ex-Zone: 0.20
Lighting current: 225 lm
Luminous range: 192 m
Lighting time: 6.5 h
Protection category: IP 67
Dimensions: 158 x 41 x 36 mm
Weight incl. Battery: 156 g

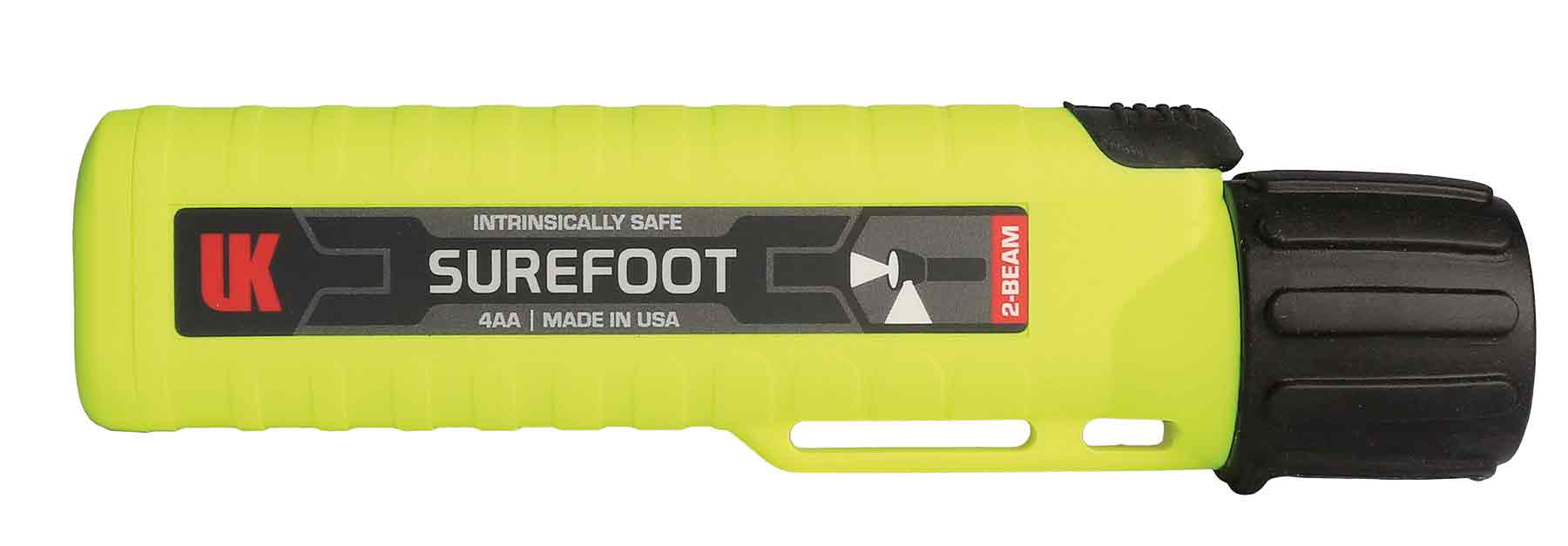

Special features:

  • the primary beam (170 lumen) is directed to the front, the secondary beam (20 lumen) is directed downwards to the footpath for safe illumination
  • can be attached to work and safety helmets by means of a helmet holder
  • Especially recommended for use in civil engineering, sewer road construction, heating, plumbing, electrical and metal industries
  • Front switch (for primary light) and rotary head switch (for secondary light



Technical specifications:

Labelling: Ex II 1G Ex ia op is IIC T4 Ga / Ex II 1D Ex ia op is IIIC T75°C Da
Ex-Zone: 0.20
Lighting current: 170 lm (primary) / 20 lm (secondary)
Luminous range: 192 m
Lighting duration: 6.5 h
Protection category: IP 67
Dimensions: 158 x 41 x 36 mm
Weight incl. Battery: 156 g

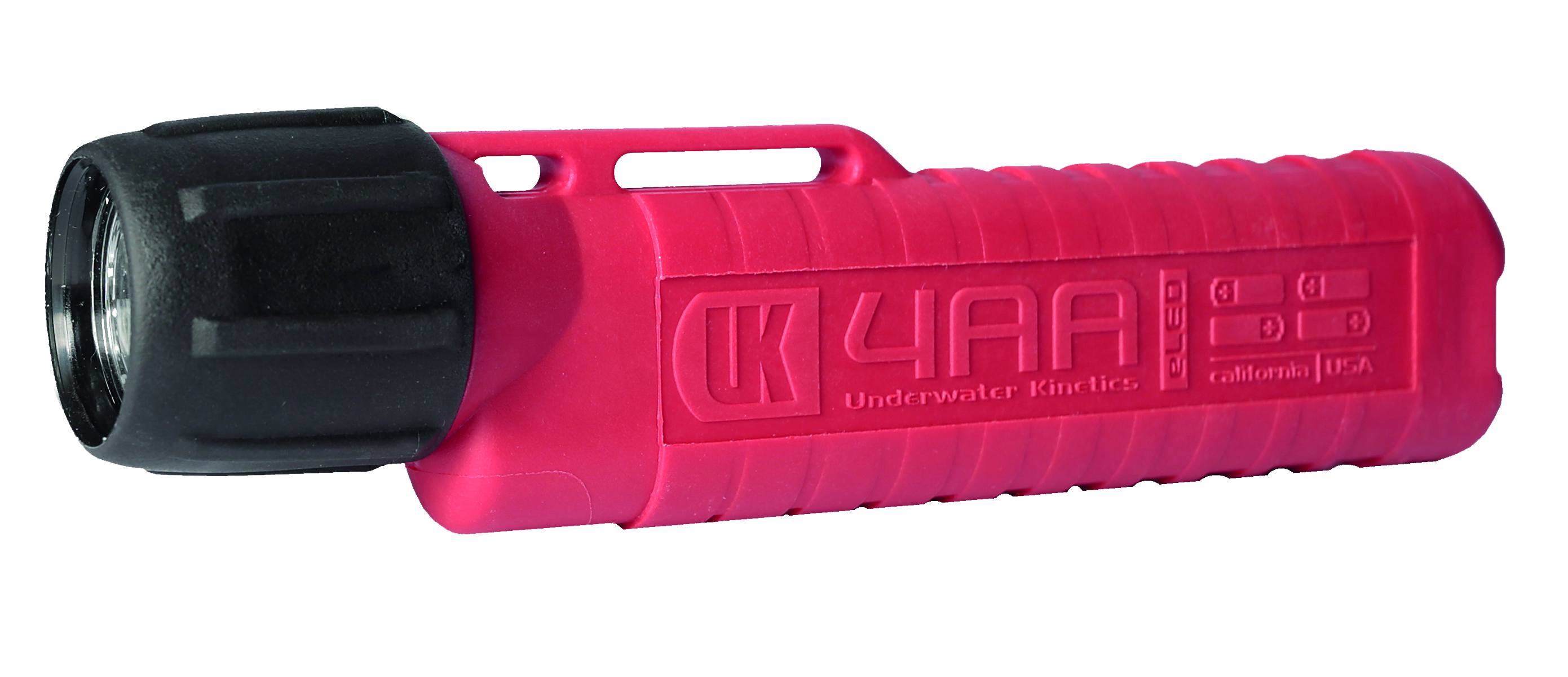

Special features:

  • chemical-resistant
  • can be attached to almost all work helmets by means of a holder
  • electrically non-conductive
  • protected against dust and liquids
  • can be attached to work and safety helmets using helmet holder 294182

Technical specifications:

Labelling: Ex II 3G ec ic IIB T4 / Ex II 3D ic IIIB T132°C
Ex-Zone: 2.22
Lighting current: 180 lm
Luminous range: 152 m
Lighting duration: 6.5 h
Protection category: IP 67
Dimensions: 158 x 41 x 36 mm
Weight incl. Battery: 156 g

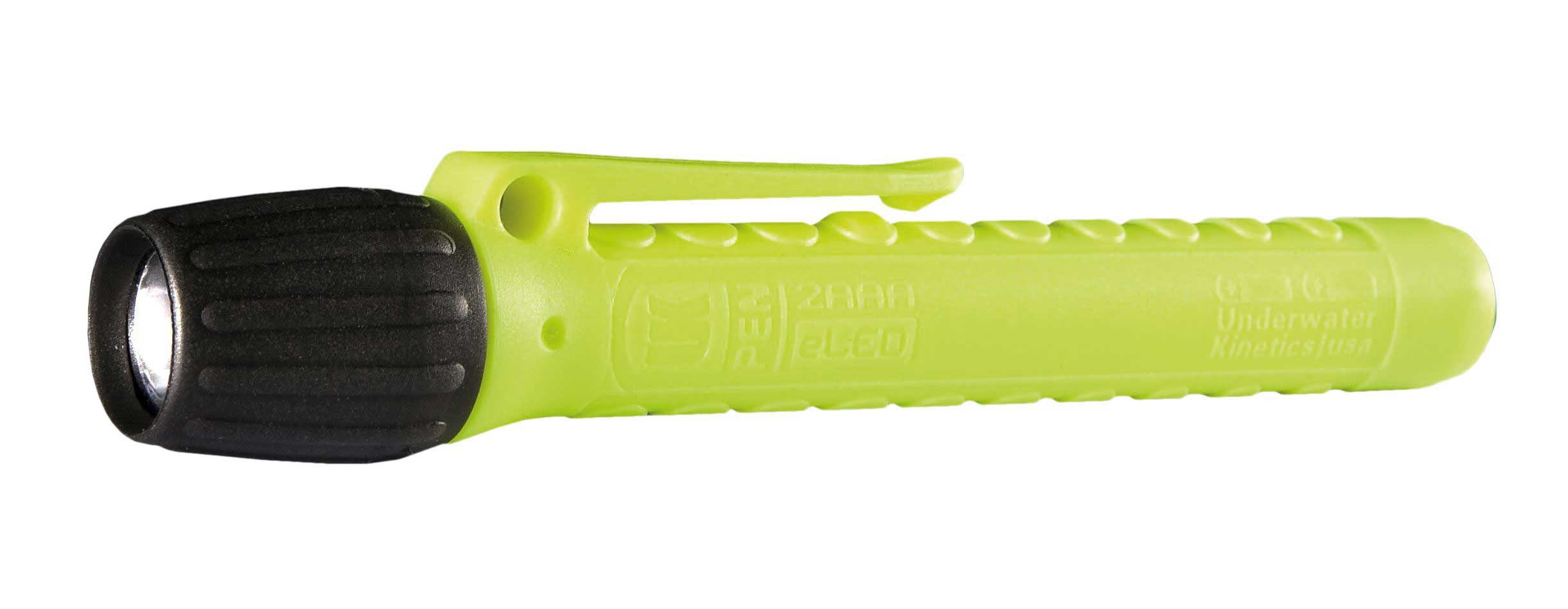

Special features:

  • 3 times brighter than conventional pin lamps
  • Rubberized lamphead reduces glare
  • rubberized rear pressure switch
  • electrically non-conductive, corrosion-resistant
  • integrated clip holder
  • ABS and polycarbonate housing -
  • optionally available: Beamguide - fiber optic attachment

Technical specifications:

Labelling: Ex II 1G Ex ia op is IIC T4 Ga / Ex II 1D Ex ia op is IIIC T75°C Da
Ex-Zone: 1.21
Lighting current: 35 lm
Luminous range: 64 m
Lighting duration: 3 h
Protection category: IP 67
Dimensions: 132 x 24 x 22 mm
Weight incl. Battery: 53 g

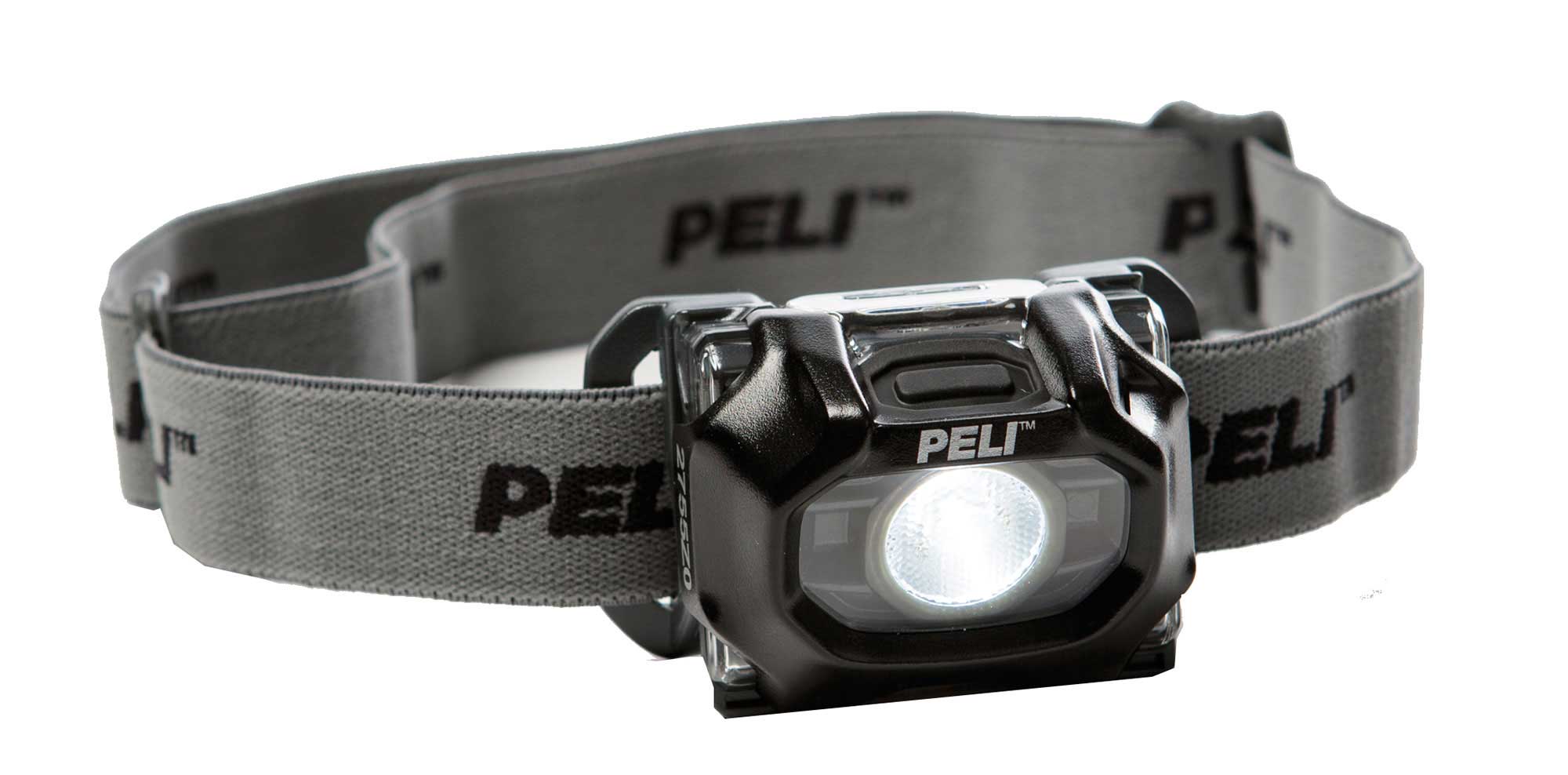

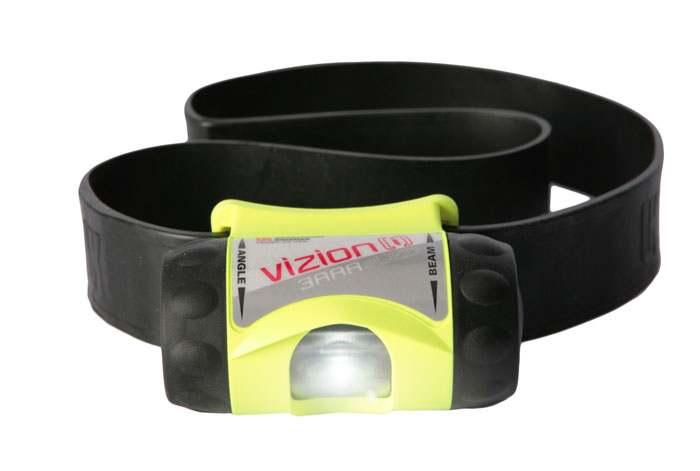

Special features:

  • 3 beam shapes (spot, scattered light/ scattered light red)
  • two power levels (high and low)
  • rubberized, non-slip rotary head switch
  • electrically non-conductive, corrosion-resistant
  • can be attached to work and safety helmets
  • LED lamp module is removable and can be used as a portable work lamp
  • high-impact-resistant construction made of ABS, LEXAN®

Technical specifications:

Labelling: Ex II 1G Ex ia op is IIC T4 Ga / Ex II 1D Ex ia op is IIIC T75°C Da
Ex-Zone: 0.21
Lighting current: 65 lm / 35 lm
Luminous range: 150 - 60 m
Lighting duration: 13 h
Protection category: IP 67
Dimensions: 77 x 38 x 46 mm
Weight incl. Battery: 111 g

Special features:

  • secure fastening and high wearing comfort due to adjustable textile headband
  • Housing made of shock-resistant and chemical-resistant ABS
  • impermeable to water
  • ATEX certified
  • slanted profile knob is fail-safe and easy to operate, even with coarse gloves

Technical specifications:

Labelling: Ex II 1D/G Ex ia IIC T4 / Ex iaD 20IP65 T65°C TRL 08 ATEX 1184X
Ex-Zone: 0.20
Lighting current: 74 lm
Lighting duration: 10 h
Length: 711
Weight incl. battery: 120 g

Special features:

  • Pressure switch on luminaire body
  • compact, lightweight and with enormous LED power
  • ATEX certified
  • Housing made of Anti Static ABS
  • luminaire is resistant to corrosion and extreme temperatures
  • submersible

Technical specifications:

Labelling: Ex II 1G Ex ia IIC T4 Ga / Ex II D Ex ia IIIC T130°C Da TRAC13ATEX0009X
Ex-Zone: 0.20
Lighting duration: 19 h
Length: 156 mm
Weight incl. Battery: 130 g

Special features:

  • secure fastening and high wearing comfort due to adjustable textile headband
  • housing made of shock-resistant and chemical-resistant ABS
  • waterproof
  • ATEX certified
  • bevelled profile knob is fail-safe and easy to operate, even with coarse gloves

Technical specifications:

Labelling: Ex II 1G Ex ia IIC T4 Ga / TRAC13ATEX0035X
Ex-Zone: 0
Lighting current: 74 lm
Lighting duration: 6 h (high) / 15 h (low)
Length: 57 mm
Weight incl. battery: 100 g

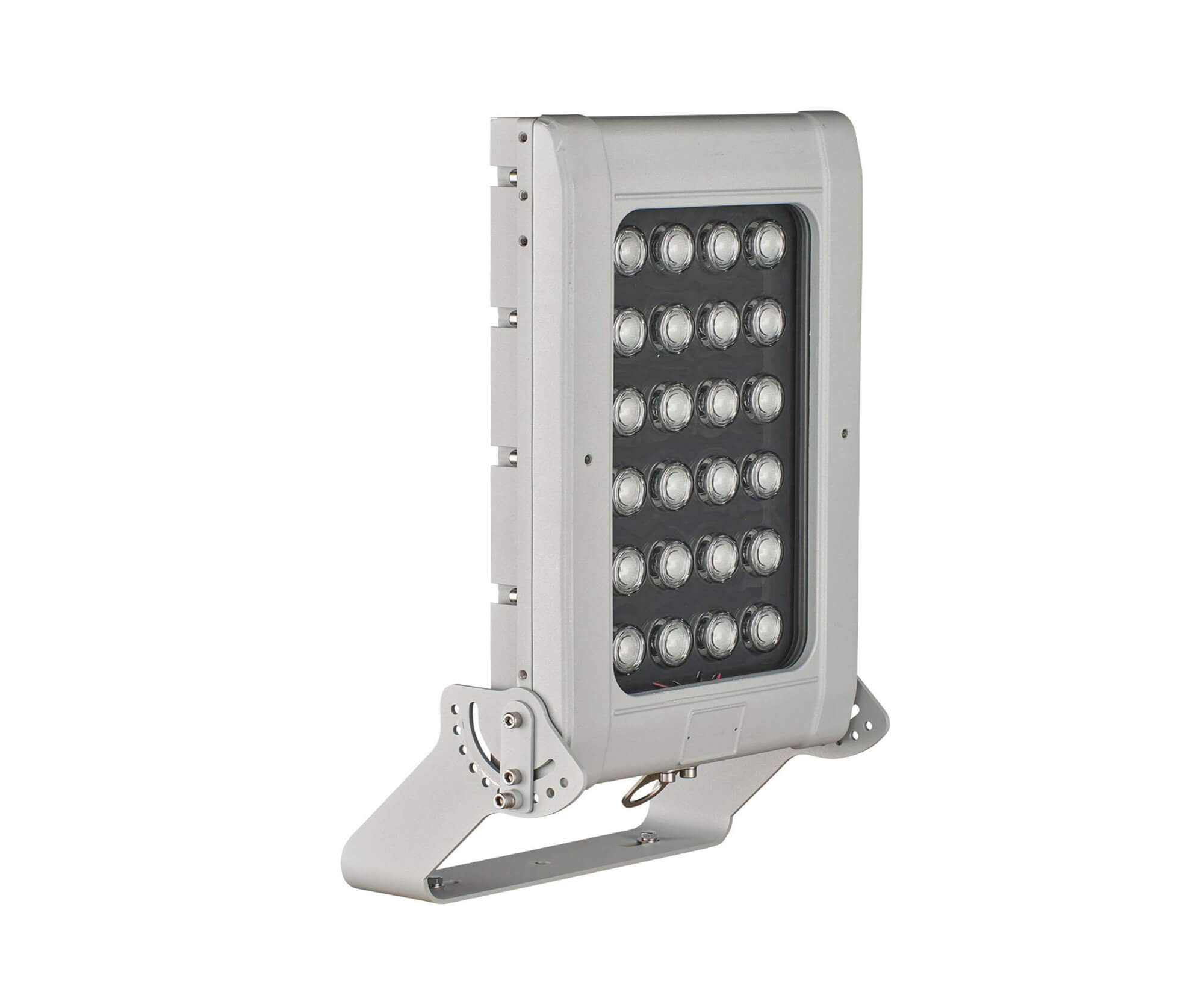

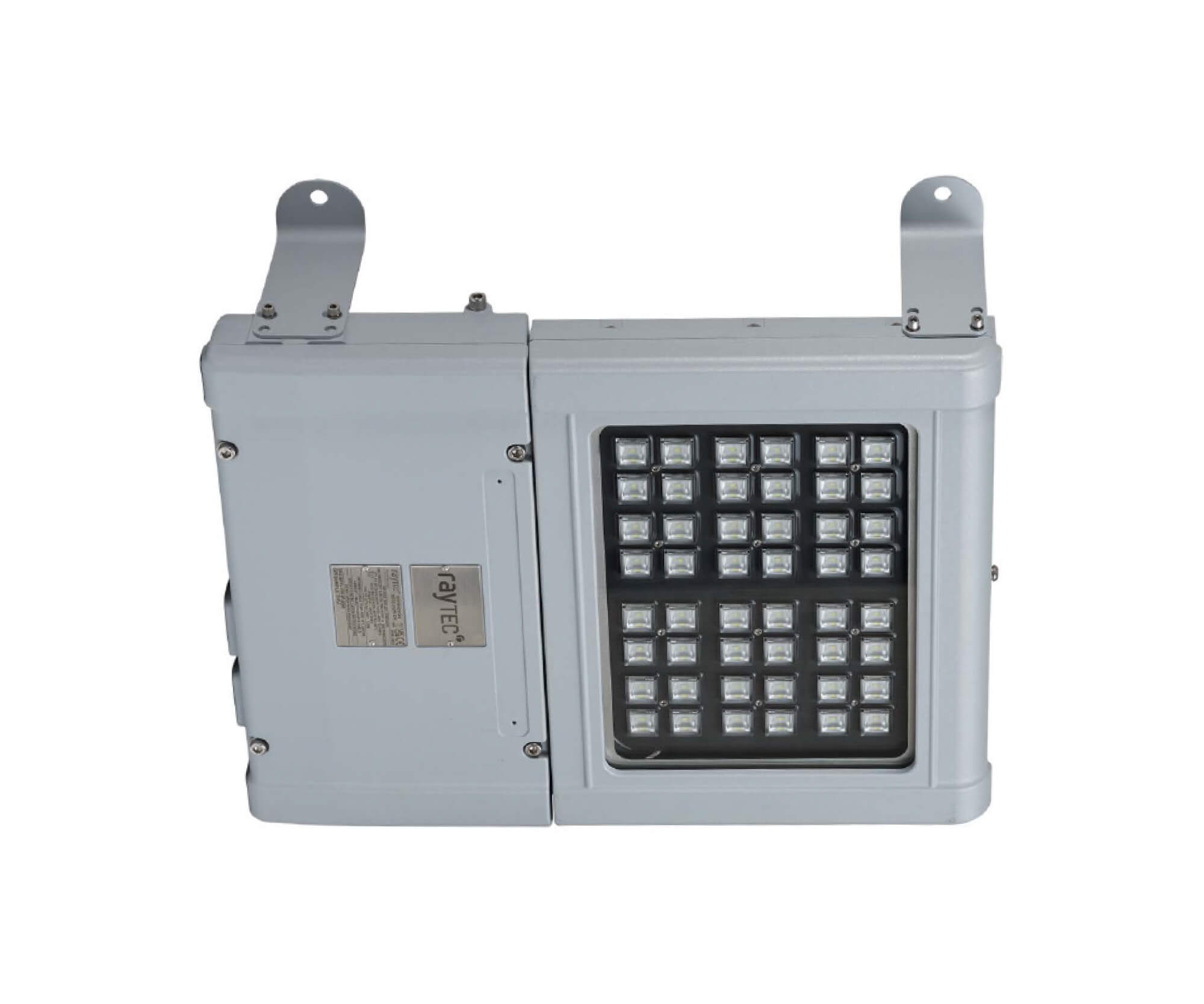

Special features:

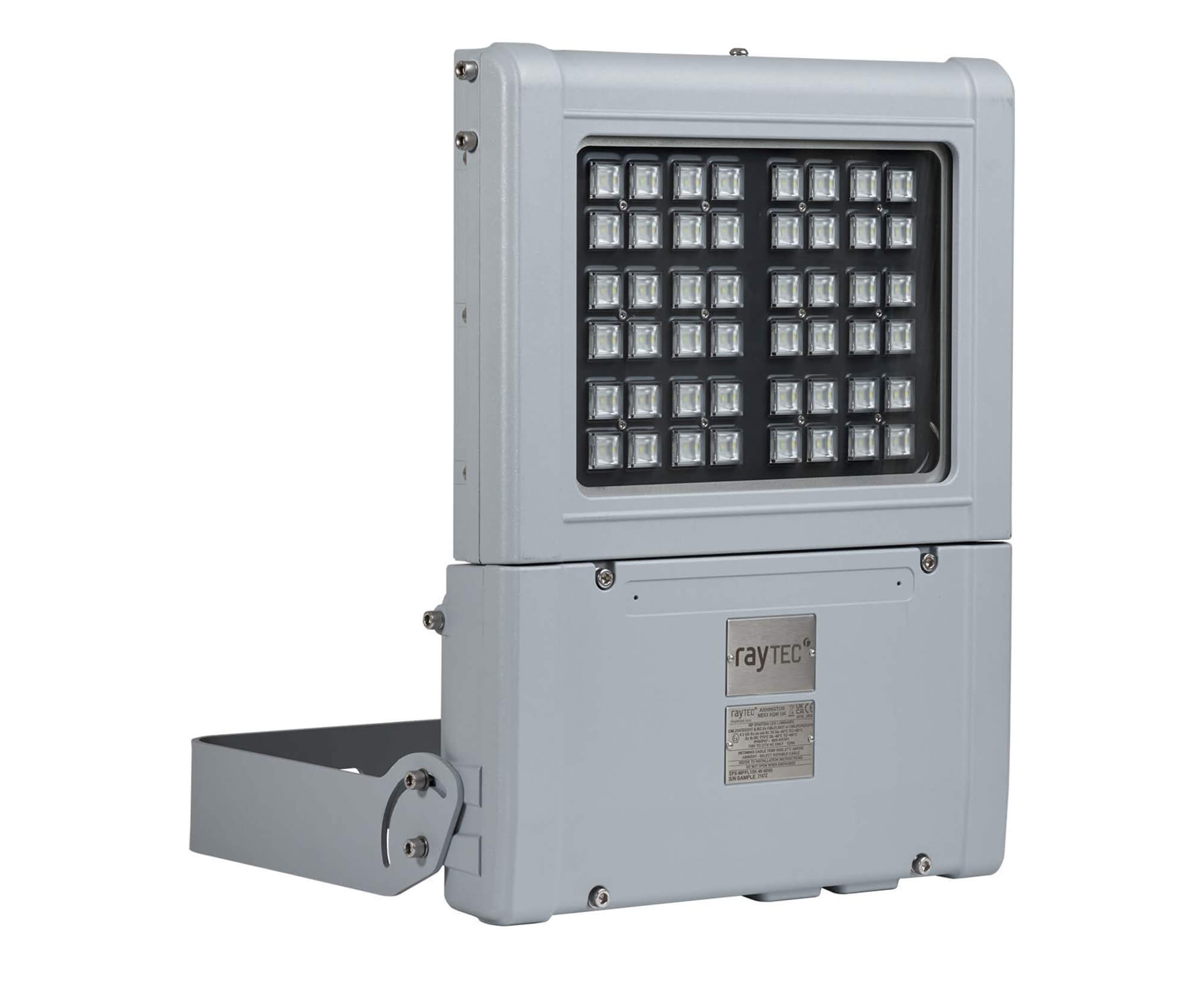

  • high luminous efficacy
  • robust aluminium housing with anti-corrosion coating
  • optimal light distribution for different applications
  • certificate: CML21ATEX3317 & IEC Ex CML21.0037 or CML21UKEX3319
  • Scope of delivery: without cable gland, 1 piece of Ex-blind plugs M20

Technical specifications:

ATEX: Ex db eb mb op is IIB T4 Gb / Ex tb op is IIIC T104° C Db
Input voltage: 150 - 264 VAC 50 / 60 Hz
Luminous flux: 15000 lm
System performance: 120 W
Number of LED : 48
CRI: Ra >70
Colour temperature: 5000 K
Service life: >50000h
Optics: 90° symmetrical , 30° symmetrical
Protection category: IP67
Dimensions (HxWxD): 609x350x109mm
Weight: 13.2 kg
Operating range of temperature:: -50°C to+50°C
Ex-Zone: 1 (gas) and 21 (dust)

Special features:

  • high luminous efficacy
  • robust aluminium housing with anti-corrosion coating
  • optimal light distribution for different applications
  • certificate: CML 17ATEX1148 AND IEC Ex CML 17.0074
  • Scope of delivery: without cable gland, 1 piece of Ex-blind plugs M20

Technical specifications:

ATEX: Ex db eb mb op is IIB T4 Gb / Ex tb op is IIIC T104° C Db
Input voltage: 150 - 264 VAC 50 / 60 Hz
Luminous flux: 25000 lm
System performance: 300 W
Number of LED : 24
CRI: Ra >80
Colour temperature: 5000 K
Service life: >50000h
Optics: 90° symmetrical , 30° symmetrical
Protection category: IP67
Dimensions (HxWxD): 639x350x151mm
Weight: 23.5 kg
Operating range of temperature: -50°C to+50°C
Ex-Zone: 1 (gas) and 21 (dust)

Special features:

  • high luminous efficacy
  • robust aluminium housing with anti-corrosion coating
  • optimal light distribution for different applications
  • certificate: CML21ATEX3317 & IEC Ex CML21.0037 or CML21UKEX3319
  • Scope of delivery: without cable gland, 3 pieces of Ex-blind plugs M20

Technical specifications:

ATEX: Ex eb mb IIC T4 Gb / Ex tb IIC T90°C Db
Input voltage: 110 - 277 VAC 50/60 Hz
Luminous flux: 15000 lm
System performance: 120 W
Number of LED : 48
CRI: Ra >70
Colour temperature: 5700 K
Service life: >50000h
Optics: 60° symmetrical
Protection category: IP66 / IP67
Dimensions (HxWxD): 446x382x165mm
Weight: 13.2 kg
Operating range of temperature: -40°C to+60°C
Ex-Zone: 1 (gas) and 21 (dust)

Special features:

  • high luminous efficacy
  • robust aluminium housing with anti-corrosion coating
  • optimal light distribution for different applications
  • certificate: CML 17ATEX1148 AND IEC Ex CML 17.0074
  • Scope of delivery: without cable gland, 3 pieces of Ex-blind plugs M20

Technical specifications:

ATEX: Ex db eb mb op is IIB + H2 T4 Gb / Ex tb op is IIIC T104° C Db
Input voltage: 150 - 264 VAC 50/60 Hz
Luminous flux: 25000 lm
System performance: 300 W
Number of LED : 24
CRI: Ra >80
Colour temperature: 5000 K
Service life: >50000h
Optics: 60° symmetrical
Protection category: IP66 / IP67
Dimensions (HxWxD): 550x353x164mm
Weight: 22.7 kg
Operating range of temperature: -50°C to+50°C
Ex-Zone: 1 (gas) and 21 (dust)
