GIFAS LED-Panel

LED ceiling grid luminaire with CCT

Light colour adjustable in 3,000K / 4,000K / 5,700K (CCT)

Super-slim design with uniform illumination

Illumination in accordance with DIN EN 12464-1

UGR<19

PMMA light guide plate with anti-yellowing properties

LED service life up to 50,000 hours

Simple, quick and versatile installation

Description

The LED ceiling grid luminaire is specially designed for standard-compliant lighting in office and work environments with computer workstations. With a UGR value of <19, it meets the requirements of DIN EN 12464-1 and is ideal for offices, graphic design workstations, doctors’ surgeries and similar applications.

The high-quality PMMA light guide plate ensures homogeneous, glare-free light distribution and is permanently light-stable thanks to its anti-yellowing properties. The light colour can be flexibly adjusted between 3,000K, 4,000K and 5,700K via an integrated DIP switch, enabling optimal adaptation to different areas of application.

The luminaire also impresses with its simple, quick and versatile mounting options and is suitable for both new buildings and renovation projects.

Mounting options

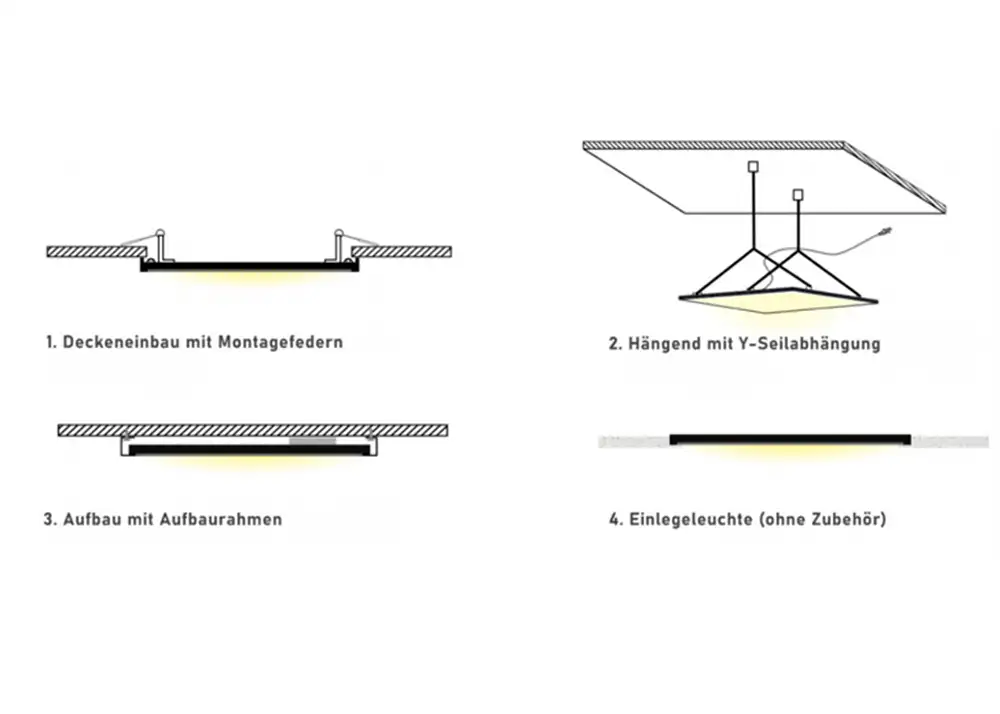

The LED ceiling grid luminaire is quick and easy to install and offers a wide range of installation options. It can be installed as a recessed ceiling luminaire with mounting springs, as a surface-mounted luminaire with an optional aluminium mounting frame (white, RAL 9016), as an insert luminaire without additional accessories, or as a pendant luminaire using a Y-cable suspension system.

GIFAS_Lichtsysteme_Hallenbeleuchtung_GIFAS-LED-Panel_LED-Deckenrasterleuchten_LED-Deckeneinbauleuchte_Montage.jpg

Product features

Light colour adjustable in 3,000K / 4,000K / 5,700K with DIP switch on the rear
Super-slim design with uniform illumination
Illumination of offices with computer workstations in accordance with DIN EN 12464-1
UGR<19
Quick and easy installation
Installation options: recessed ceiling installation, surface mounting, recessed mounting, suspended mounting
Suitable for indoor use only

Technical data

Input voltage::	30-42VDC / Max. 1,050mA
System power:	42W
Luminous flux:
Item no. 361624	4,620lm
Item no. 361576	4,662lm
System efficiency:
Item no. 361624	110lm/W
Item no. 361576	111lm/W
Light color (adjustable):	3,000K / 4,000K / 5,700K
Dimmable:	Possible (see power supply unit)
Energy efficiency class:	+A
Beam angle:	120°
CRI-Index:	Ra >80
UGR:	<19
LED lifetime:	[L80/B10]> 50.000h
Protection category:	IP44
Protection class:	II
Impact resistance:
Item no. 361624	IK06
Item no. 361576	IK02
Temperature range:	+15°C up to +45°C
Housing:	Aluminium
Housing colour:	white RAL 9016
Fibre optic plate:	PMMA anti-yellowing
Weight:	approx. 3.2kg
Dimensions (L x B x H):
Item no. 361624	620x620x11mm
Item no. 361576	1,495x295x9mm

Assembly examples

Item no	Description	Onlineshop
361624	GIFAS LED PANEL, ceiling grid light 620x620mm, 42W, IMPORTANT: Power supply unit not included in delivery	on request

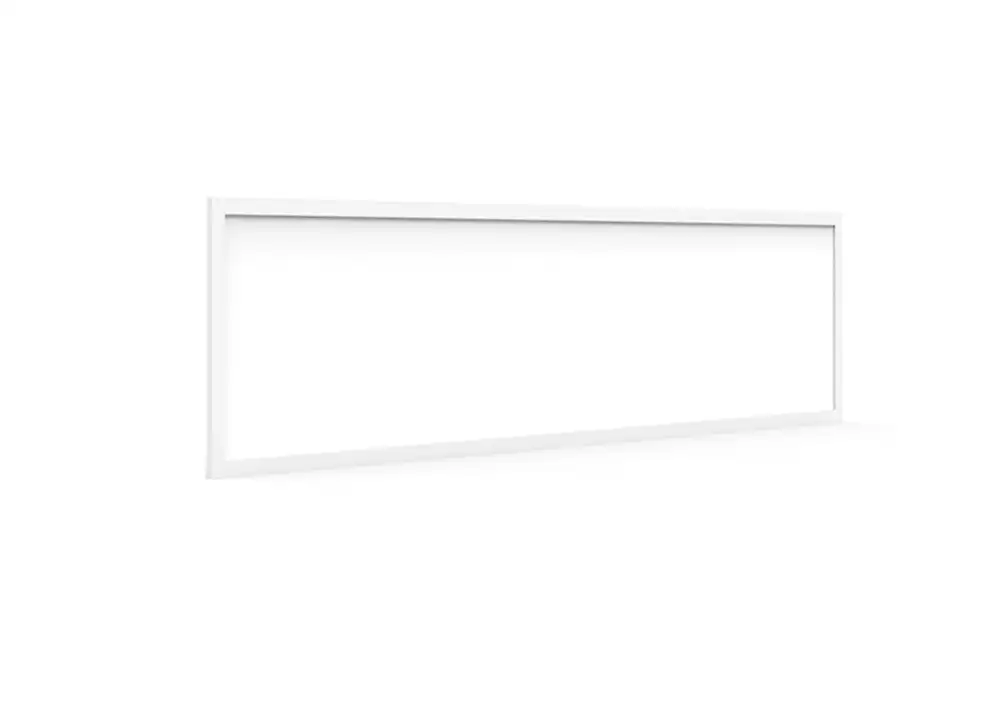

361576	GIFAS LED PANEL, ceiling grid light 1,500 x 300 mm, 42 W, IMPORTANT: Power supply unit not included in delivery	on request

Accessories

Item no.	Description	Onlineshop
on request	Mounting springs for plasterboard ceilings for 620x620mm	on request
on request	Y-rope suspension for panel for 620x620mm IMPORTANT: M4x5 threaded screws are required, not included in delivery	on request

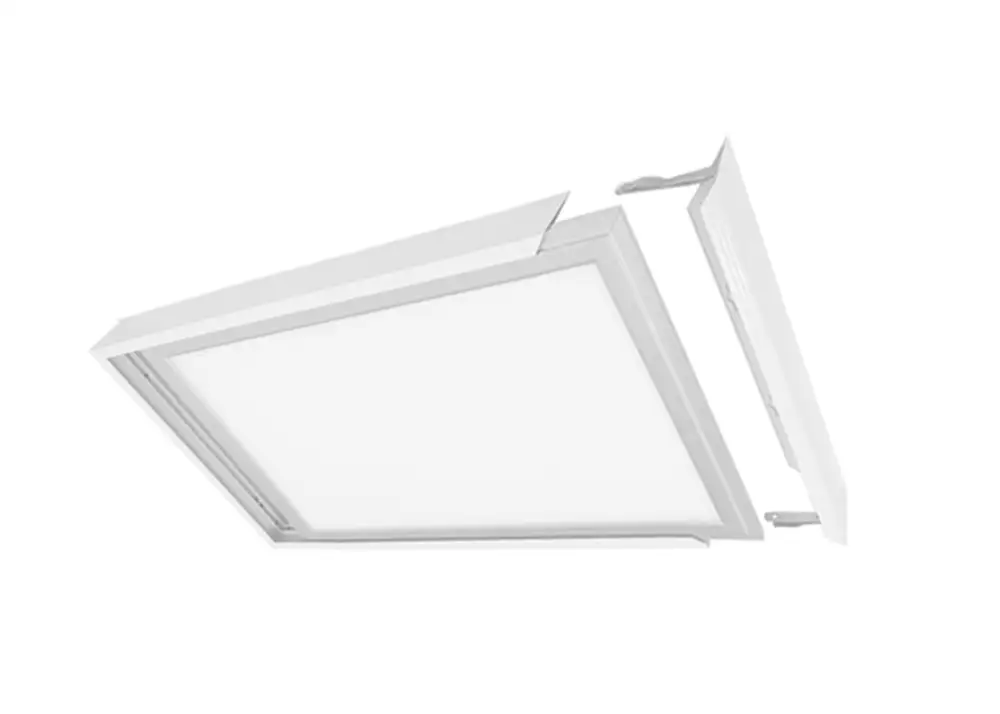

	Aluminium mounting frame for 620 x 620 mm, no visible screws, height 50 mm	on request
on request	Mounting springs for plasterboard ceiling for 1,500 x 300 mm	on request
on request	Y-rope suspension for panel 1,500 x 300 mm IMPORTANT: M4x5 threaded screws are required and are not included in delivery.	on request
361577	Aluminium mounting frame for 1,500 x 300 mm, no visible screws, height 50 mm	on request

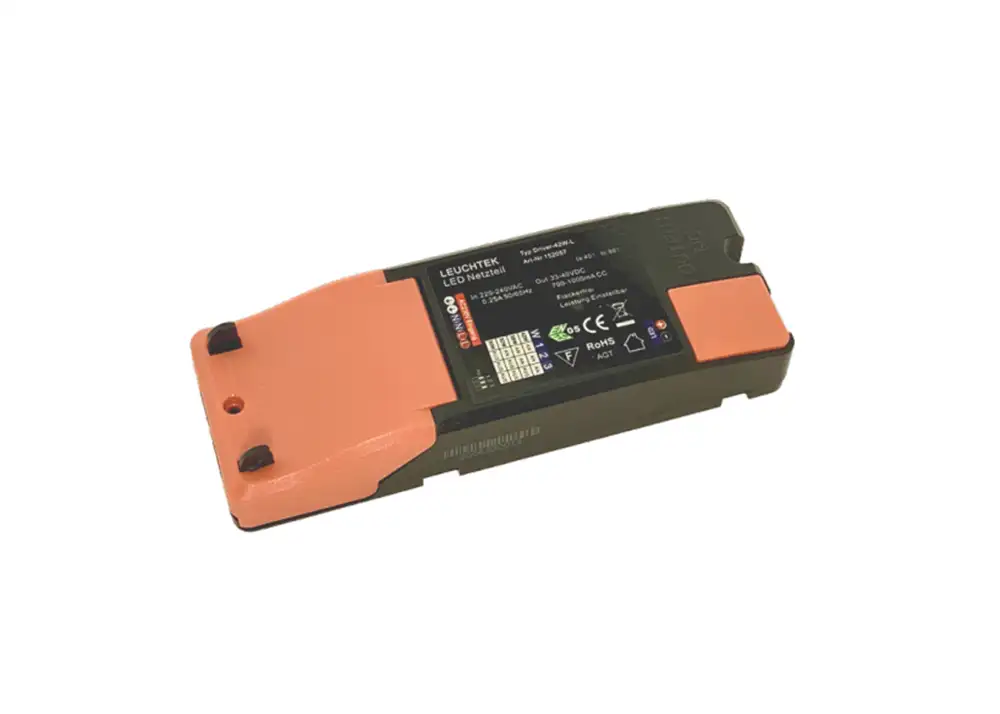

361578	42W power supply for GIFAS LED panel, adjustable power 30W, 32W, 36W, 42W, input 220-240VAC, 0.25A, 50/60Hz, output 30-40VDC, 700-1,000mA, dimensions 156x55x30mm, certification marks ENEC, CE, RoHS	on request
